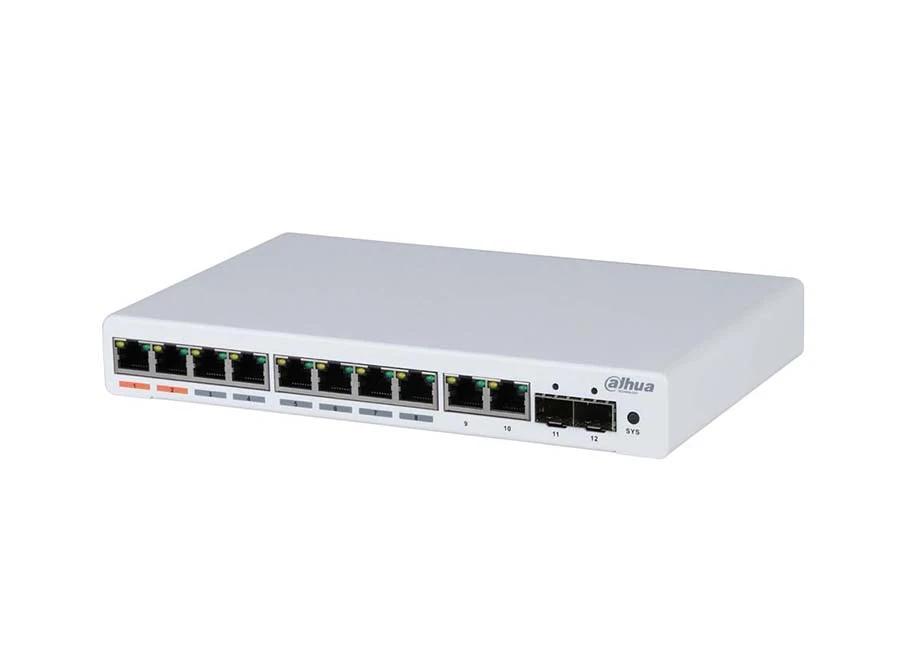

Dahua PFS4212 8GT 96 PoE Switch
Özellikler
- Layer 2 network management PoE switch
- Network redundancy: STP/RSTP/MSTP
- Network management based on SNMP
- IEEE802.3af, IEEE802.3at standard and Hi-PoE 60W
- Large data buffer up to 4 MB, real-time transmission
- MAC auto study and aging, and MAC address list capacity is 8K
- Meet Class B Electromagnetic Compatibility Standard
Teknik Özellikler
Hardware | |
Ethernet Port | Port 1-8: 8 × 10/100/1000 Base-T (PoE) |
Port 9-10: 2 × 10/100/1000 Base-T | |
Port 11-12: 2 × 1000 Base-X | |
PoE Power Consumption | Port 1-2 ≤ 60W (Hi-PoE) |
Port 3-8 ≤ 30W, total ≤ 96W | |
PoE Protocol | IEEE802.3af, IEEE802.3at, Hi-PoE |
Power Supply Pin | PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-); Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
Switching Capacity | 52 Gbps |
Packet Forwarding Rate | 17.856 Mpps |
Packet Buffer Memory | 4 Mbits |
MAC Address Table | 8K |
Operating Humidity | 5%RH–95%RH |
Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
Power Input | 48V DC-57V DC |
Lightning Protection | Common mode: 2KV |
Differential mode: 1KV | |
Class B Electromagnetic Compatibility Standard | |
Power Consumption | Idle: 12W |
PoE full load: 96W | |
Weight | 0.84 kg (1.85 lb) |
Box weight (with accessory): 1.75 kg (3.86 lb) | |
Box in protective box: 8 in 1. | |
Protective box weight (with accessory): 14.5 kg (31.97 lb) | |
Dimension (W×D×H) | 220 mm × 135 mm × 30 mm (8.67" × 5.31" × 1.18") |
Box dimension: 290 mm × 196 mm × 91 mm (11.42'' × 7.72'' × 3.58") | |
Protective box dimension: 597 mm × 392 mm × 230 mm (23.50" × 15.43" × 9.06") | |
Software | |
System | Username/password: admin/admin |
IP address: 192.168.1.110/24 | |
NTP | Yes |
DHCP | DHCP-Client, DHCP-Server |
VLAN | 802.1Q Standard VLAN |
Port Aggregation | Static link aggregation |
Dynamic link aggregation | |
Mirroring | Many-to-one port mirroring |
Flow Control | Half-duplex based on back pressure type control |
Full duplex based on PAUSE frame | |
IGMP Snooping | IGMP snooping based on port |
Security | User management |
SSH | |
HTTPS | |
Hardware supports MAC binding based on port | |
802.1X | |
Loop protection | |
Spanning Tree | STP/RSTP/MSTP |
ACL | Base MAC ACL |
Base IP ACL | |
LLDP | Yes |
MAC Table | MAC address table configuration |
Quality of Service | Each port supports 8 output queues |
Port shaping | |
QoS based on DSCP | |
SP, WRR queue scheduling | |
System Maintenance | One-key recovery of default |
The updated packet upload | |
System logs | |
Network Management | WEB (http protocol), CLI, Telnet |
SNMP V1/V2/V3 |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Montaj Tipi : Desk Mount
PoE Port Sayısı :
8 Port
![Tooltip](/media/system/images/tooltip.png)
PoE Güç Bütçesi : 50-130 Watt
