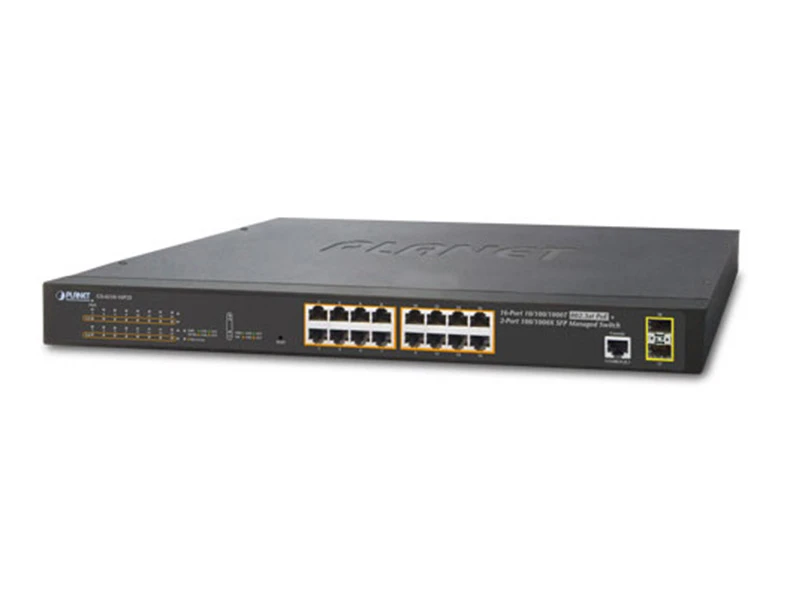

Planet GS 4210 16P2S PoE Managed Switch

Özellikler

Physical Port

16 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector
2 100/1000BASE-X mini-GBIC/SFP slots
1 RJ45 console interface for switch basic management and setup

Power over Ethernet

Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
Up to 16 ports of IEEE 802.3af/802.3at devices powered
Supports PoE Power up to 30.8 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
PoE Management
Total PoE power budget control
Per port PoE function enable/disable
PoE port power feeding priority
Per PoE port power limitation
PD classification detection
Intelligent PoE features
PoE usage threshold control
PD alive check
PoE schedule

Layer 2 Features

Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Supports VLAN
IEEE 802.1Q tagged VLAN, up to 256 VLAN groups, out of 4094 VLAN IDs
Protocol VLAN
Supports Spanning Tree Protocol
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
BPDU Guard
Supports Link Aggregation
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Provides port mirror (many-to-1)

Quality of Service

Ingress/Egress Rate Limit per port bandwidth control
Storm Control support
Broadcast, Unknown Unicast, and Unknown Multicast
Traffic classification
IEEE 802.1p CoS
DSCP/IP Precedence of IPv4/IPv6 packets
Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast

Supports IGMP snooping v1, v2 and v3
Supports MLD snooping v1 and v2
Querier mode support
IGMP snooping port filtering
MLD snooping port filtering
MVR (Multicast VLAN Registration)

Security

Authentication
IEEE 802.1X port-based network access authentication
Built-in RADIUS client to cooperate with the RADIUS servers
DHCP Option 82
RADIUS/TACACS+ login user access authentication
Access Control List
IPv4 IP-based ACL
IPv4 IP-based ACE
MAC-based ACL
MAC-based ACE
MAC Security
Static MAC
MAC Filtering
Port Security for Source MAC address entries filtering
DHCP Snooping to filter distrusted DHCP messages

Management

Switch Management Interface
Console/Telnet Command Line Interface
Web switch management
SNMP v1, v2c and v3
HTTPs secure access
Built-in Trivial File Transfer Protocol (TFTP) client
Static and DHCP for IP address assignment
System Maintenance
Firmware upload/download via HTTP/TFTP
Configuration upload/download through HTTP/TFTP
Hardware reset button for system reboot or reset to factory default
SNTP Network Time Protocol
Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
SNMP trap for interface Link Up and Link Down notification
Event message logging to remote Syslog server
Four RMON groups (history, statistics, alarms and events)
PLANET Smart Discovery Utility

Teknik Özellikler

Hardware Specifications
Copper Ports	16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
SFP/mini-GBIC Slots	2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode
PoE Injector Port	16 ports with 802.3af/at PoE injector function
Console	1 RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-Forward
Switch Fabric	36Gbps/non-blocking
Switch Throughput@64 bytes	26.78Mpps@64 bytes
MAC Address Table	8K entries
Shared Data Buffer	4Mbits
Flow Control	IEEE 802.3x pause frame for full-duplex
Flow Control	Back pressure for half-duplex
Jumbo Frame	9K bytes
Reset Button	< 5 sec: System reboot
Reset Button	> 5 sec: Factory default
LED	System:
	Power (Green)
	10/100/1000T RJ45 Interfaces (Port 1 to Port 16):
	1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange), PoE (Orange)
	100/1000Mbps SFP Interfaces (Port 17 to Port 18):
	1000 LNK/ACT (Green), 100 LNK/ACT (Orange)
Thermal Fan	2
Power Requirements	100~240V AC, 50/60Hz, 4A (max.)
Power Consumption/Dissipation	Max. 281 watts/964 BTU
Dimensions (W x D x H)	445 x 207 x 45 mm (1U height)
Weight	2.8kg
Enclosure	Metal
Power over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
PoE Power Output	Per Port 53V DC, 30.8 watts (max.)
PoE Power Budget	220 watts (max.)
Number of PDs, 7 watts	16 units
Number of PDs, 15.4 watts	14 units
Number of PDs, 30 watts	7 units
Layer 2 Functions
Port Mirroring	TX/RX/Both
Port Mirroring	Many-to-1 monitor
VLAN	802.1Q tagged-based VLAN
	Up to 256 VLAN groups, out of 4094 VLAN IDs
	802.1ad Q-in-Q tunneling
	Voice VLAN
	Protocol VLAN
	GVRP
Link Aggregation	IEEE 802.3ad LACP supports 8 groups of 16-port trunk
Link Aggregation	Static trunk supports 8 groups of 8-port trunk
Spanning Tree Protocol	IEEE 802.1D STP
	IEEE 802.1w RSTP
	IEEE 802.1s MSTP
Multicast	IGMP (v2/v3) Snooping
	IGMP Querier
	Up to 256 multicast groups
Access Control List	IPv4 IP-based ACL
Access Control List	MAC-based ACL
QoS	8 mapping ID to 8 level priority queues
	- Port Number
	- 802.1p priority
	- DSCP field in IP Packet
	Traffic classification based, Strict priority and WRR
Security	IEEE 802.1X Port-based authentication
	Built-in RADIUS client to cooperate with RADIUS server
	RADIUS/TACACS+ user access authentication
	MAC filter
	Static MAC address
	DHCP Snooping and DHCP Option82
	STP BPDU Guard, BPDU Filtering and BPDU Forwarding
Management Functions
Basic Management Interfaces	Web browser, Telnet, SNMP v1/v2c/v3 and RJ45 Console
	Firmware upgrade by HTTP/TFTP protocol through Ethernet network
	Remote/Local Syslog
	System log
	LLDP protocol
	SNTP
Secure Management Interfaces	SSH, SSL, SNMP v3
SNMP MIBs	RFC 3635 Ethernet-like MIB
	RFC 2863 Interface Group MIB
	RFC 2819 RMON (1, 2, 3, 9)
	RFC 1493 Bridge MIB
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX/100BASE-FX
	IEEE 802.3z Gigabit SX/LX
	IEEE 802.3ab Gigabit 1000BASE-T
	IEEE 802.3x Flow Control and Back pressure
	IEEE 802.3ad Port Trunk with LACP
	IEEE 802.1D Spanning Tree protocol
	IEEE 802.1w Rapid Spanning Tree protocol
	IEEE 802.1s Multiple Spanning Tree protocol
	IEEE 802.1p Class of Service
	IEEE 802.1Q VLAN Tagging
	IEEE 802.1x Port Authentication Network Control
	IEEE 802.1ab LLDP
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	RFC 768 UDP
	RFC 793 TFTP
	RFC 791 IP
	RFC 792 ICMP
	RFC 2068 HTTP
	RFC 1112 IGMP version 1
	RFC 2236 IGMP version 2
	RFC 3376 IGMP version 3
Environment
Operating	Temperature: 0 ~ 50 degrees C
Operating	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C
Storage	Relative Humidity: 5 ~ 95% (non-condensing)
