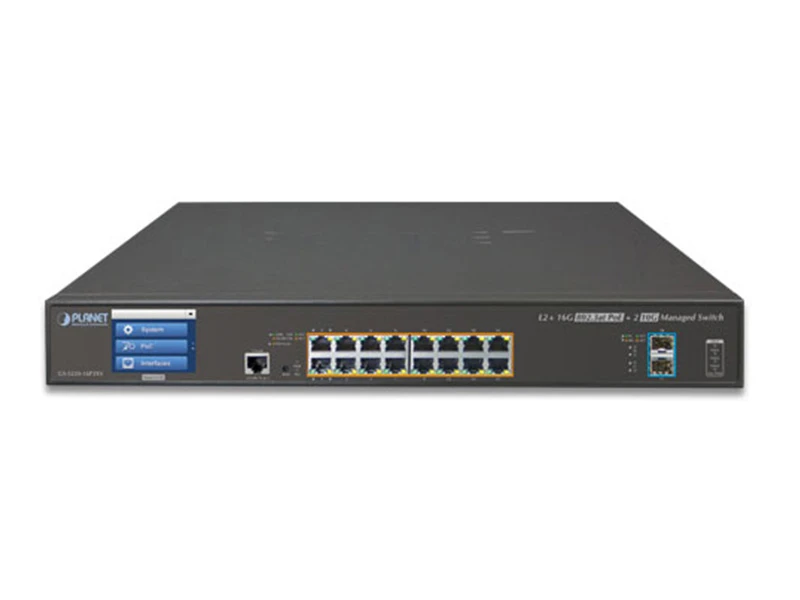

Planet GS 5220 16P2XVR PoE Managed Switch
Teknik Özellikler
| Physical Port |
| 16 10/100/1000BASE-T Gigabit RJ45 copper ports with 16-port IEEE 802.3af/at PoE+ injector |
| 2 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP |
| RJ45 console interface for switch basic management and setup |
| Power over Ethernet |
| Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE |
| Backward compatible with IEEE 802.3af Power over Ethernet |
| Up to 16 ports of IEEE 802.3af/IEEE 802.3at devices powered |
| Supports PoE power up to 36 watts for each PoE port |
| Auto detects powered device (PD) |
| Circuit protection prevents power interference between ports |
| Remote power feeding up to 100 meters |
| PoE management |
| Total PoE power budget control |
| Per port PoE function enable/disable |
| PoE admin-mode control |
| PoE port power feeding priority |
| Per PoE port power limitation |
| PD classification detection |
| Temperature threshold control |
| PD alive check |
| PoE schedule |
| Layer 2 Features |
| Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) |
| High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth |
| Storm Control support |
| Broadcast/Multicast/Unknown unicast |
| Supports VLAN |
| IEEE 802.1Q tagged VLAN |
| Up to 255 VLANs groups, out of 4094 VLAN IDs |
| Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad) |
| Private VLAN Edge (PVE) |
| Protocol-based VLAN |
| MAC-based VLAN |
| Voice VLAN |
| Supports Spanning Tree Protocol |
| IEEE 802.1D Spanning Tree Protocol |
| IEEE 802.1w Rapid Spanning Tree Protocol |
| IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN |
| BPDU Guard |
| Supports Link Aggregation |
| 802.3ad Link Aggregation Control Protocol (LACP) |
| Cisco ether-channel (static trunk) |
| Maximum 9 trunk groups, up to 2 ports per trunk group |
| Up to 40Gbps bandwidth (full duplex mode) |
| Provides port mirror (many-to-1) |
| Port mirroring to monitor the incoming or outgoing traffic on a particular port |
| Loop protection to avoid broadcast loops |
| Layer 3 Features |
| IP interfaces (Max. 8 VLAN interfaces) |
| Routing table (Max. 32 routing entries) |
| Routing Protocols (IPv4/IPv6 software static routing) |
| Quality of Service |
| Ingress Shaper and Egress Rate Limit per port bandwidth control |
| 8 priority queues on all switch ports |
| Traffic classification |
| IEEE 802.1p CoS |
| TOS/DSCP/IP precedence of IPv4/IPv6 packets |
| IP TCP/UDP port number |
| Typical network application |
| Strict priority and Weighted Round Robin (WRR) CoS policies |
| Supports QoS and In/Out bandwidth control on each port |
| Traffic-policing on the switch port |
| DSCP remarking |
| Multicast |
| Supports IGMP snooping v1, v2 and v3 |
| Supports MLD snooping v1 and v2 |
| Querier mode support |
| IGMP snooping port filtering |
| MLD snooping port filtering |
| Multicast VLAN Registration (MVR) support |
| Security |
| Authentication |
| IEEE 802.1x port-based/MAC-based network access authentication |
| Built-in RADIUS client to cooperate with the RADIUS servers |
| TACACS+ login users access authentication |
| RADIUS/TACACS+ users access authentication |
| Access Control List |
| IP-based Access Control List (ACL) |
| MAC-based Access Control List |
| Source MAC/IP address binding |
| DHCP Snooping to filter untrusted DHCP messages |
| Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding |
| IP Source Guard prevents IP spoofing attacks |
| IP address access management to prevent unauthorized intruder |
| Management |
| IPv4 and IPv6 dual stack management |
| Switch Management Interfaces |
| Console/Telnet Command Line Interface |
| Web switch management |
| SNMP v1, v2c, and v3 switch management |
| SSH/SSL secure access |
| 2.4-inch color LCD touch screen |
| IPv6 IP address/NTP/DNS management |
| Built-in Trivial File Transfer Protocol (TFTP) client |
| BOOTP and DHCP for IP address assignment |
| System Maintenance |
| Firmware upload/download via HTTP/TFTP |
| Reset button for system reboot or reset to factory default |
| Dual images |
| DHCP Relay |
| DHCP Option 82 |
| User Privilege levels control |
| NTP (Network Time Protocol) |
| Link Layer Discovery Protocol (LLDP) and LLDP-MED |
| Network Diagnostic |
| ICMPv6/ICMPv4 remote ping |
| Cable diagnostic technology provides the mechanism to detect and report potential cabling issues |
| SMTP/Syslog remote alarm |
| Four RMON groups (history, statistics, alarms and events) |
| SNMP trap for interface Link Up and Link Down notification |
| System Log |
| PLANET Smart Discovery Utility for deployment management |
| Smart fan with speed control |
| Redundant Power System (GS-5220-16P2XVR) |
| Redundant 100~240V AC/36-60V DC dual power |
| Active-active redundant power failure protection |
| Backup of catastrophic power failure on one supply |
| Fault tolerance and resilience |
Planet GS 5220 16P2XVR PoE Managed Switch Pdf Dosyası6.95 MB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Güç Bütçesi : 200-400 Watt
PoE Port Sayısı :
16 Port
