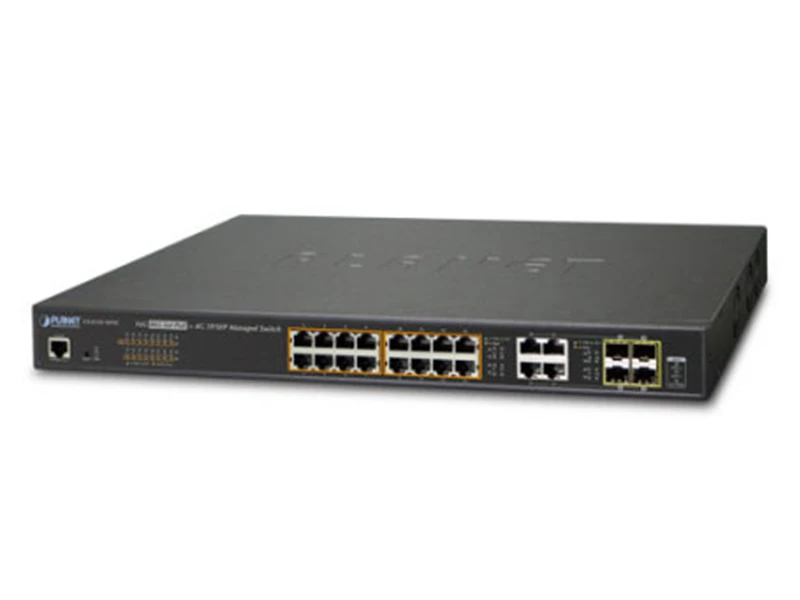

Planet PL GS 4210 16P4C PoE Switch

Özellikler

16-Port 10/100/1000Base-T IEEE 802.3at/af PoE injector
Port 1 ile Port-16 arası
Per port 30.8 watt
PoE Power Budget max. 220 Watt
4-Port Gigabit TP/SFP yuva
Port-17 ile Port-20 arası paylaşımlı
1 x konsol port

Teknik Özellikler

Hardware Specifications
Copper Ports	20 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	4 x 100/1000BASE-X SFP interfaces shared with Port-17 to Port-20.
	Supports 100/1000Mbps dual mode and DDM
PoE Injector Port	16 ports with 802.3at/af PoE injector function (Port-1 to Port-16)
Console	1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-Forward
Switch Fabric	40Gbps/non-blocking
Switch Throughput@64Bytes	29.76Mpps
Address Table	8K entries
Shared Data Buffer	4.1 megabits
Flow Control	IEEE 802.3x pause frame for full-duplex
	Back pressure for half-duplex
Jumbo Frame	10K bytes
Reset Button	< 5 sec: System reboot
	> 5 sec: Factory default
LED	PWR, SYS, LNK/ACT, PoE-in-Use, 1000, FAN 1 Alert, FAN 2 Alert, PoE PWR Alert
Smart Fan	2
Dimensions (W x D x H)	440 x 300 x 44.5 mm, 19-inch, 1U height
Weight	4.132kg
Power Requirements	AC 100~240V, 50/60Hz, auto-sensing
ESD Protection	6KV DC
Power Consumption/Dissipation	251 watts (max.)/861.2 BTU
Enclosure	Metal
Power over Ethernet
PoE Standard	IEEE 802.3af/802.3at PoE/PSE
PoE Power Supply Type	End-span
PoE Power Output	Per port 52V DC, 30.8 watts (max.)
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	220 watts (max.) @ 25 degrees C
	190 watts (max.) @ 50 degrees C
PoE Ability PD @ 9 watts	16 units
PoE Ability PD @ 15.4 watts	14 units
PoE Ability PD @ 30 watts	7 units
Layer 2 Functions
Port Mirroring	TX/RX/both
Port Mirroring	Many-to-1 monitor
VLAN	802.1Q tagged-based VLAN
	Up to 256 VLAN groups, out of 4094 VLAN IDs
	802.1ad Q-in-Q tunneling
	Voice VLAN
	Protocol VLAN
	Private VLAN (protected port)
	GVRP
Link Aggregation	IEEE 802.3ad LACP and static trunk
Link Aggregation	Supports 4 groups of 8-port trunk
Spanning Tree Protocol	STP/RSTP/MSTP
IGMP Snooping	IGMP (v2/v3) Snooping
	IGMP Querier
	Up to 256 multicast groups
MLD Snooping	MLD (v1/v2) Snooping, up to 256 multicast groups
Access Control List	IPv4/IPv6 IP-based ACL, MAC-based ACL
QoS	8 mapping ID to 8 level priority queues
	- Port number
	- 802.1p priority
	- 802.1Q VLAN tag
	- DSCP field in IP packet
	Traffic classification based, strict priority and WRR
Security	IEEE 802.1X – Port-based authentication
	Built-in RADIUS client to cooperate with RADIUS server
	RADIUS/TACACS+ user access authentication
	IP-MAC port binding
	MAC filtering
	Static MAC address
	DHCP Snooping and DHCP Option82
	STP BPDU guard, BPDU filtering and BPDU forwarding
	DoS attack prevention
	ARP inspection
	IP source guard
Management Functions
Basic Management Interfaces	Web browser; telnet; SNMP v1, v2c
	Firmware upgrade by HTTP/TFTP protocol through Ethernet network
	Remote/local syslog
	System log
	LLDP protocol
	SNTP
Secure Management Interfaces	SSH, SSL, SNMP v3
SNMP MIBs	RFC 1213 MIB-II
	RFC 1215 Generic Traps
	RFC 1493 Bridge MIB
	RFC 2674 Bridge MIB Extensions
	RFC 2737 Entity MIB (version 2)
	RFC 2819 RMON (1, 2, 3, 9)
	RFC 2863 Interface Group MIB
	RFC 3635 Ethernet-like MIB
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX/100BASE-FX
	IEEE 802.3z Gigabit SX/LX
	IEEE 802.3ab Gigabit 1000T
	IEEE 802.3x flow control and back pressure
	IEEE 802.3ad port trunk with LACP
	IEEE 802.1D Spanning Tree Protocol
	IEEE 802.1w Rapid Spanning Tree Protocol
	IEEE 802.1s Multiple Spanning Tree Protocol
	IEEE 802.1p Class of Service
	IEEE 802.1Q VLAN tagging
	IEEE 802.1x Port Authentication Network Control
	IEEE 802.1ab LLDP
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at High Power over Ethernet
	RFC 768 UDP
	RFC 793 TFTP
	RFC 791 IP
	RFC 792 ICMP
	RFC 2068 HTTP
	RFC 1112 IGMP version 1
	RFC 2236 IGMP version 2
	RFC 3376 IGMP version 3
	RFC 2710 MLD version 1
	RFC 3810 MLD version 2
Environment
Operating	Temperature: 0 ~ 50 degrees C
Operating	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -20 ~ 70 degrees C
Storage	Relative Humidity: 5 ~ 95% (non-condensing)
