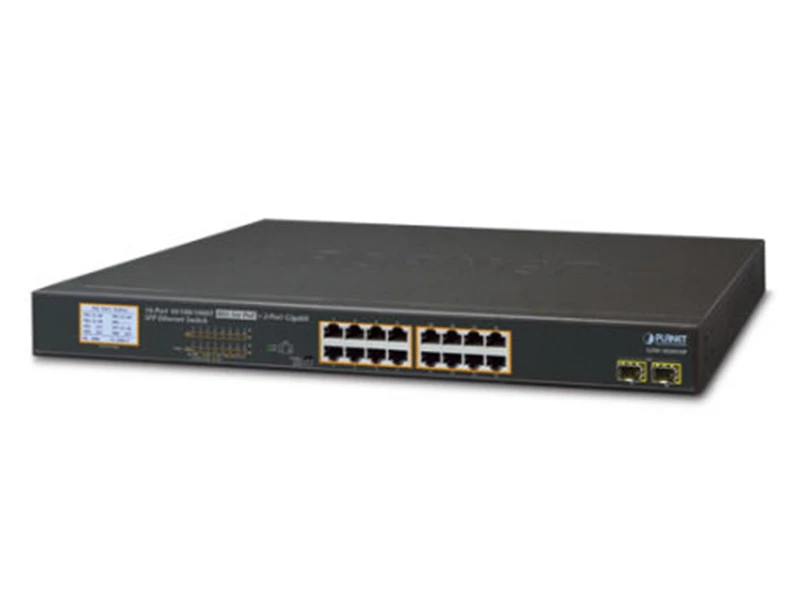

| Hardware Specifications |
| 10/100/1000BASE-T MDI/MDIX Ports |
16 |
| 1000BASE-X SFP Interfaces |
2 |
| PoE Injector Port |
16 ports with 802.3at/af PoE injector function with Port-1 to Port-16 |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
36Gbps/non-blocking |
| Switch Throughput@64 bytes |
26.8Mpps@64Bytes |
| MAC Address Table |
8K entries, automatic source address learning and aging |
| Maximum Frame Size |
9K bytes |
| Flow Control |
IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex |
| LED |
System: |
| Power (Green) |
| 10/100/1000BASE-T RJ45 Interfaces: |
| 10/100Mbps LNK/ACT (Orange) |
| 1000Mbps LNK/ACT (Green) |
| 1000BASE-X SFP Interfaces: |
| 1000Mbps LNK/ACT (Green) |
| PoE Interfaces: |
| PoE-in-Use (Orange) |
| LCD Monitor |
■ PoE loading of each port |
| ■ Total PoE power usage |
| ■ Total PoE budget |
| ■ System status, such as overload, low voltage, over voltage and high temperature |
| DIP Switch |
Selectable operation mode |
| ■ Standard |
| ■ VLAN |
| ■ Extend + VLAN |
| Dimensions (W x D x H) |
233 x 440 x 44 mm (1U height) |
| Enclosure |
Metal |
| Weight |
3.3kg |
| Power Requirements |
AC 100~240V, 50/60Hz, 5A max. |
| Power Consumption/Dissipation |
Max. 330 watts/1132 BTU |
| Thermal Fan |
2 |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet/PSE |
| IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
Per port 52V DC, 600mA. max. 30 watts |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Power Budget |
300 watts |
| Max. Number of Class 2 PDs |
16 |
| Max. Number of Class 3 PDs |
16 |
| Max. Number of Class 4 PDs |
11 |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX |
| IEEE 802.3ab Gigabit 1000BASE-T |
| IEEE 802.3z Gigabit SX/LX |
| IEEE 802.3x flow control and back pressure |
| IEEE 802.3af Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus |
| Environment |
| Operating |
Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) |
