Açıklama

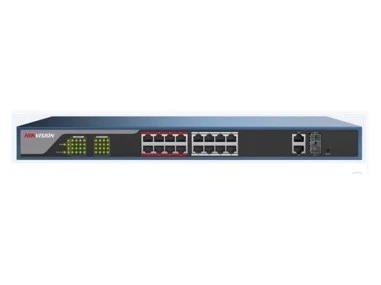

Hikvision DS 3E2318P PoE Switch
Özellikler
- DS-3E23XXP Series supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the requirements of high reliability of carriers;
- DS-3E23XXP Series has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods;
- DS-3E23XXP Series supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;
- DS-3E23XXP Series supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy;
- DS-3E23XXP Series supports IEEE 802.3AF/AT standard, built-in large power supply, no need of external power supply, that is, 24-port AF full-load power supply.
- DS DS-3E23XXP Series supports the configuration of Base-T port priority when the power is inadequate.
- DS-3E23XXP Series supports POE port and up to 4KV power thunder-proof.
- DS-3E23XXP Series supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services;
- DS-3E23XXP Series provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services;
- DS-3E23XXP Series supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”;
- Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions;
- Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+;
- DS-3E23XXP Series supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions;
- DS-3E23XXP Series supports perfect ring detection mechanism which ensures the long-term stable running of network;
- DS-3E23XXP Series supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security;
- DS-3E23XXP Series many management modes such as the console port, Telnet, SSH;
- DS-3E23XXP Series supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient;
- DS-3E23XXP Series supports TFTP-patterned file upload/download management;
Teknik Özellikler
| Parameter | |
| Port | 16 100M Base-T ports + 2 gigabit combo ports |
| Backplane Capacity | 21.2Gbps |
| Forwarding | 8.4Mpps |
| MAC Table | 8K |
| STP | 802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP) |
| BPDU protection, root protection, and loopback protection | |
| VLAN | 4K VLAN; GVRP; QinQ; Private VLAN |
| QoS | Flow classification based on L2~4 protocols (S2108POE does not support the function.) |
| CAR flow limit | |
| 802.1P/DSCP priority re-labeling (S2108POE does not support the function.) | |
| SP, WRR, and “SP+WRR” | |
| Congestion avoidance mechanisms like Tail-Drop and WRED | |
| Flow monitoring and flow shaping | |
| Multicast | IGMP v1/v2/v3 |
| IGMP snooping | |
| IGMP Fast Leave | |
| Multicast group strategy and quantity limitation | |
| Multicast flow copying over VLANs (S2108POE does not support the function.) | |
| Network Management | Console, Telnet, SSH2.0, Web |
| SNMP v1/v2/v3 | |
| TFTP | |
| RMON | |
| Network Security | L2/L3/L4 ACL flow identification and filtration (S2108POE does not support the function.) |
| DDoS attack prevention, TCP’s SYN Flood attack prevention, UDP Flood attack prevention, etc | |
| Broadcast/multicast/unknown unicast storm-control | |
| Port isolation | |
| Port security, and “IP+MAC+port” binding (S2108POE does not support.) | |
| Dimension | 440×232×44 |
| Power Over Ethernet | |
| PoE Standard | POE/POE+ |
| General | |
| Power Supply | AC：100V-240V，50Hz±10% |
| Power Consumption | 330W (POE 300W) |
| Working Temperature | ℃-50℃ |
| Working Humidity | 10%-90% non-condensing |
| Storage Temperature | -20℃-70℃ |
| Storage Humidity | 5%-95% non-condensing |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
PoE Port Sayısı :
16 Port
16 Port PoE Güç Bütçesi : 200-400 Watt
