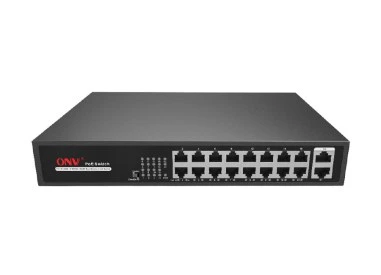

ONV ONV-H1016PL PoE Switch

Özellikler

Unmanaged PoE switch with 16* 10/100M PoE ports and 2* 10/100/1000M uplink RJ45 ports.
Port 1-16 can support IEEE802.3af/at PoE standard.
Adjust function switch, Port 9-16 can support 10M/250m long distance transmission.
Built-in 200W power supply.

Teknik Özellikler

Model	ONV-H1016PL	ONV-H1024PL
Interface Characteristics
Fixed Port	16*10/100Base-TX PoE ports (Data/Power)	24*10/100Base-TX PoE ports (Data/Power)
	2*10/100/1000Base-T uplink RJ45 ports (Data)	2*10/100/1000Base-T uplink RJ45 ports (Data)
Ethernet Port	Port 1-16 can support 10/100Base-TX, Port 17-18 can support 10/100/1000Base-T auto-detection, full/half-duplex MDI/MDI-X auto-sensing	Port 1-24 can support 10/100Base-TX, Port 25-26 can support 10/100/1000Base-T auto-detection, full/half-duplex MDI/MDI-X auto-sensing
Functional Switch	After opening, port 9-16 can support 10M/250 meters long distance transmission.	After opening, port 17-24 can support 10M/250 meters long distance transmission.
	Note: when the switch state changes, it must be restarted before the PoE switch function can take effect
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤250 meter)
	100BASE-TX: Cat5 or later UTP(≤100 meter)
	1000BASE-T: Cat5e or later UTP(≤100 meter)
Chip Parameter
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
	IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	14.8Gbps (Non-blocking)
Forwarding Rate@64byte	5.36Mpps	6.55Mpps
MAC	16K
Buffer Memory	4M
Jumbo Frame	9.6K
LED Indicator	Power:PWR (green), network : Link(yellow),PoE: PoE (green)
PoE & Power
PoE Port	Port 1 to 16	Port 1 to 24
Power Supply Pin	Default 1/2(+), 3/6(-), optional 4/5(+), 7/8(-)
Max Power Per Port	30W, IEEE802.3af/at
Total PWR / Input Voltage	200W (AC100-240V)	250W (AC100-240V)
Power Consumption	Standby<15W, Full load <240W	Standby <20W, Full load <250W
Power Supply	Built-in switching power supply, AC100~240V 50-60Hz 4.1A
Physical Parameter
Operation TEMP / Humidity	-20~+55°C;5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+75°C;5%~95% RH Non condensing
Dimension (LWH)	27018144.5mm	33020444mm
Net /Gross Weight	<1.7kg / <2.2kg	<2.3kg / <3kg
Installation	Desktop, wall mounted
Certification & Warranty
Lightning protection / protection level	Lightning protection: 4KV 8/20us; Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS
Warranty	1 year, lifelong maintenance.
