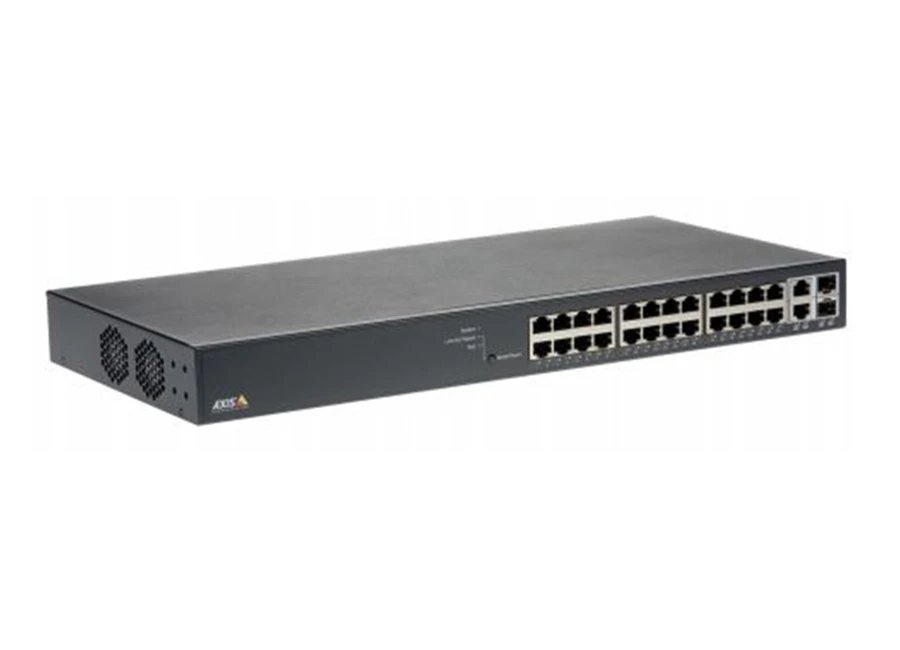

Axis T8524 PoE+ Switch
Özellikler
- 24 x Gigabit Ethernet Ports
- 2 x Combination RJ45/SFP Ports
- 52 Gb/s Switching Capacity
- 38.7Mpps Throughput
Teknik Özellikler
Network Function | DHCP server included |
VLAN | |
Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, ACL, Private VLANs, DHCP Snooping |
Supported Protocols | IPv4, IPv6, HTTP, HTTPS, QoS, Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, STP, RSTP, MSTP, LLDP, LLDP-MED, TFTP, SMTP, BPDU |
Throughput | 38.7 Mpps |
Switching Capacity | 52 Gb/s |
MAC Address Table | 8 K |
Jumbo Frames Support | 9216 Bytes |
Casing | Metal |
Color: Black | |
Environment | Indoor |
Power Requirements | 100 to 240 VAC, 50/60 Hz |
PoE | PoE Class |
Power over Ethernet Plus (PoE+) IEEE 802.3at Type 2 Class 4 | |
PoE Output | |
Port 1 to 24: Up to 30 W | |
Power budget: 370 W | |
Connectors | PoE Ports |
24 x RJ45 10Base-T/100Base-TX/1000Base-T | |
Uplink Ports | |
2 x Combination port RJ45/SFP 100Base-TX/1000Base-T | |
Power Connectors | |
1 x Power | |
1 x Power connector port | |
Surge Protection | 6 kV on all network ports and AC lines |
Temperature & Humidity | Operating Temperature |
32 to 122°F / 0 to 50°C | |
Operating Humidity | |
10 to 90% non-condensing, RH Storage Temperature | |
14 to 158°F / -10 to 70°C | |
Storage Humidity | |
5 to 95% non-condensing, RH | |
Management Software | Axis Camera Management |
Dimensions | 17.4 x 8.31 x 1.73" / 442 x 211 x 44 mm |
Weight | 7.05 lb / 3.2 kg |
Packaging Info | |
Package Weight | 9.0 lb |
Box Dimensions (LxWxH) | 20.5 x 11.8 x 3.5" |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı : 24 Port
PoE Güç Bütçesi : 200-400 Watt
