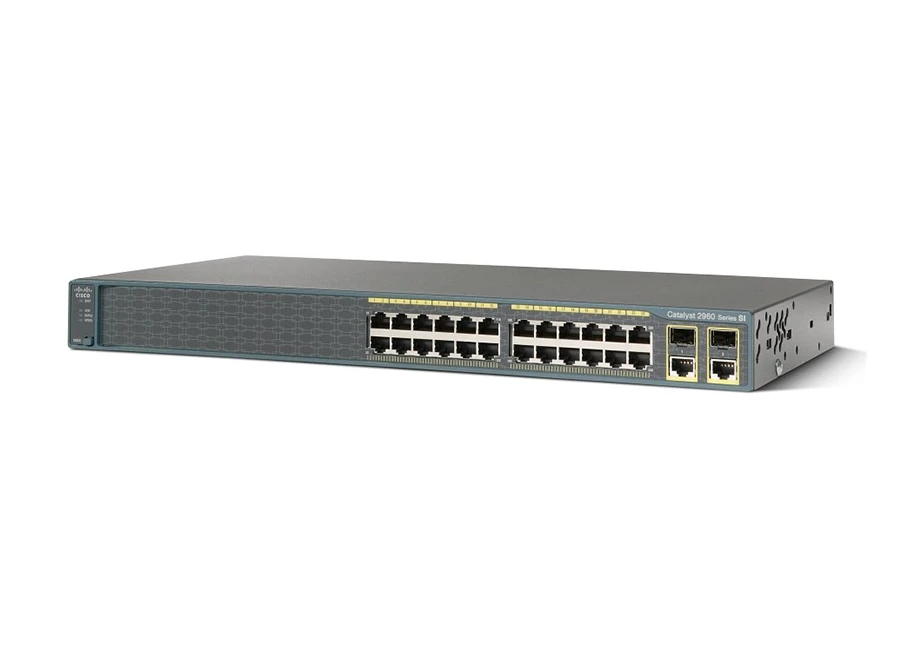

Cisco Catalyst 2960 Plus 24PC L PoE Switch

Teknik Özellikler

General
Device Type Switch - 24 ports - managed
Enclosure Type Rack-mountable 1U
Subtype Fast Ethernet
Ports 24 x 10/100 (PoE) + 2 x combo Gigabit SFP
Power Over Ethernet (PoE) PoE
PoE Budget 370 W
Performance Switching capacity: 16 Gbps ¦ Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity Active VLANs: 64
Jumbo Frame Support 9018 bytes
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP
Authentication Method RADIUS, TACACS+
Features Layer 2 switching, auto-sensing per device, dynamic IP address assignment, DHCP support, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
RAM 128 MB
Flash Memory 64 MB
Status Indicators Port status, port transmission speed, port duplex mode, power, system, link/activity
Expansion / Connectivity
Interfaces 24 x 100Base-TX RJ-45 PoE - 15.4 W ¦ 2 x SFP ¦ 2 x 1000Base-T RJ-45
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Features Redundant Power System (RPS) connector
Software / System Requirements
Software Included Cisco LAN Base software

pdfCisco Catalyst 2960 Plus 24PC L Switch Pdf Dosyası246.91 KB

Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı : Tooltip 24 Port
PoE Güç Bütçesi : 200-400 Watt
