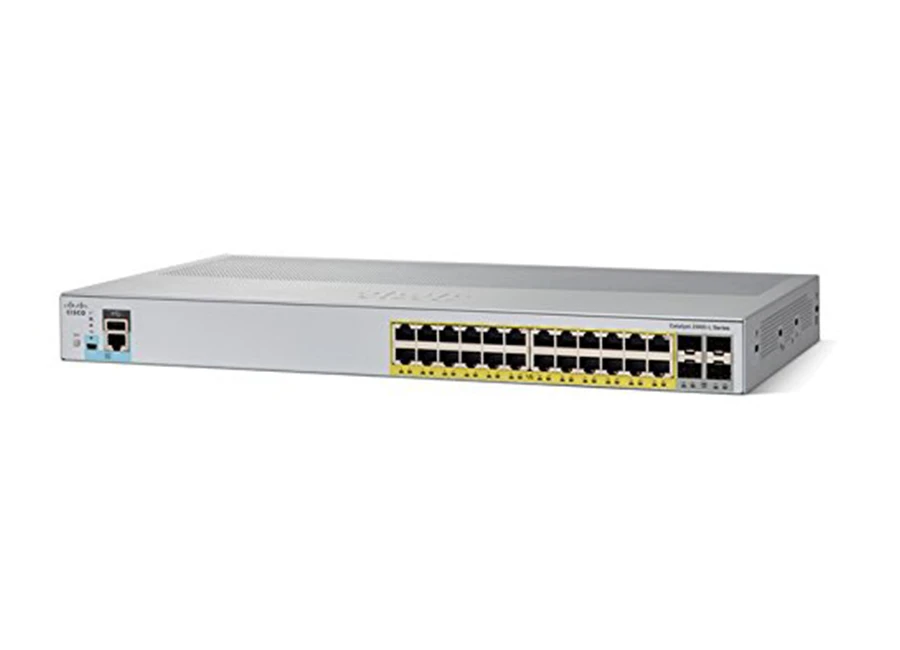

Cisco Catalyst 2960L SM 24PS PoE Switch

Teknik Özellikler

General
Device Type	Switch - 24 ports - smart
Enclosure Type	Desktop, rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)	PoE+
PoE Budget	195 W
Performance	Switching bandwidth: 56 Gbps ¦ Forwarding bandwidth: 28 Gbps ¦ Forwarding performance (64-byte packet size): 41.67 Mpps
Capacity	VLANs supported: 4094 ¦ Active VLANs: 64 ¦ STP instances: 64 ¦ SPAN sessions: 1
MAC Address Table Size	8K entries
Jumbo Frame Support	10240 bytes
Routing Protocol	IGMP, MLDv2, MLD
Remote Management Protocol	SNMP 1, RMON 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features	DHCP support, auto-negotiation, BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Link Aggregation Control Protocol (LACP), Port Security, Energy Efficient Ethernet, Management Information Base (MIB), Dynamic VLAN Support (GVRP), Class of Service (CoS), IGMP filtering, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Spanning-tree Root Guard (STRG), Network Timing Protocol (NTP)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor	ARM7: 800 MHz
RAM	512 MB
Flash Memory	256 MB
Status Indicators	Port status, port duplex mode, system, PoE, link/speed
Expansion / Connectivity
Interfaces	24 x 1000Base-T RJ-45 PoE+ ¦ 1 x console RJ-45 ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 4 x 1000Base-X SFP uplink
Power
Voltage Required	AC 120/230 V (50 - 60 Hz)
Miscellaneous
MTBF	909,838 hours
Compliant Standards	Plug and Play, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 300386, AS/NZS CISPR22:2004 Class A, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, USGv6
Software / System Requirements
Software Included	Cisco IOS LAN Lite
Dimensions & Weight
Width	44.5 cm
Depth	26.5 cm
Height	4.4 cm
Weight	3.36 kg
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature	-5 °C
Max Operating Temperature	45 °C
Humidity Range Operating	5 - 90%
Min Storage Temperature	-25 °C
Max Storage Temperature	70 °C
Humidity Range Storage	5 - 95%
