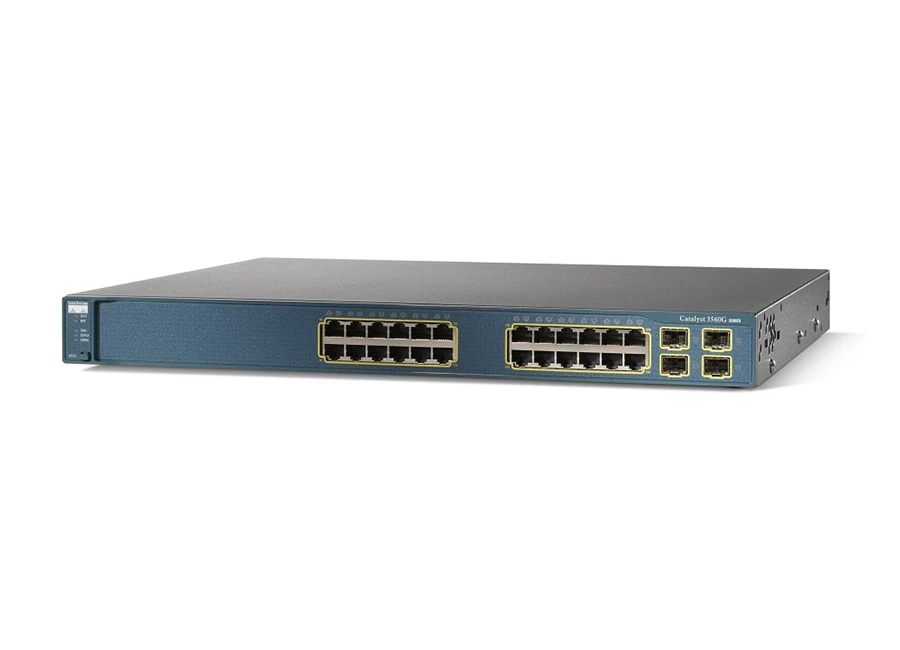

Cisco Catalyst 3560G 24PS E PoE Switch
Özellikler
- 24 Ethernet 10/100/1000 ports and 4 SFP-based Gigabit Ethernet ports
- 1RU fixed-configuration, multilayer switch
- Enterprise-class intelligent services delivered to the network edge
- IEEE 802.3af and Cisco prestandard Power over Ethernet
- IP Services software feature set (IPS)
- Provides full IPv6 dynamic routing
Teknik Özellikler
Type | Fixed |
Topology | Ethernet (10/100/1000 Ethernet PortsBaseT) |
Gigabit Ethernet (SFP) | |
Maximum Port density | 24 10/100/1000 Ethernet Ports PoE ports |
Uplinks | 4 SFP ports |
Modular/Expansion Slots | n/a |
Architecture | Layer 2 Switching (basic connectivity), Layer 2 Switching (intelligent services), Layer 3 Switching, Voice Enabled |
Form Factor | Fixed, Rack Mountable, Standalone/Clustering |
Dimensions | 1.73 x 17.5 x 14.9 in. |
DRAM | 128 MB |
Features | |
Specialized Service Modules | n/a |
High Availability/Resilliency | |
Hardware Redundancy | External Redundant Power Supply |
High Availability/Resilliency | PVST, Broadcast Suppression, Unicast Suppression, Mulitcast Suppression, Spanning Tree, Portfast, Uplink Fast, Backbone Fast, 802.1s, 802.1w, HSRP |
Management | |
Management features | SPAN, RSPAN, CiscoView, Cisco Discover Protocol (CDP), Virtual Trunking Protocol (VTP), Telnet Client, BOOTP, TFTP, CiscoWorks, CWSI, RMON, SNMP, Clustering, Web-Based Management |
Scalability | |
WAN Interface Support | n/a |
Throughput | 38.7 Mpps |
Backplane Capacity | 32 Gbps |
Number of VLANs | 4k, 1024 |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı : 24 Port
