Açıklama

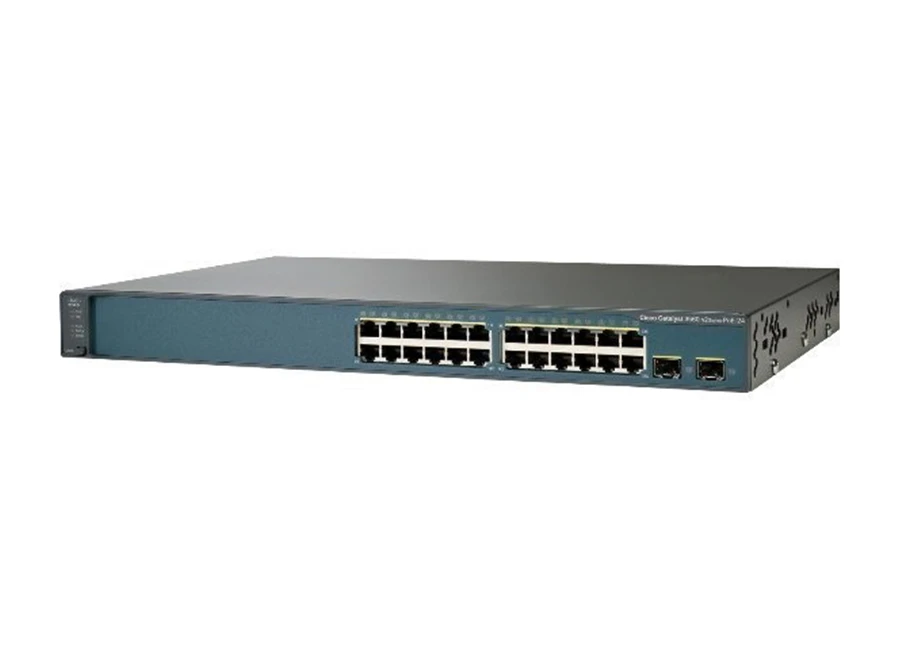

Cisco Catalyst 3560V2 24PS E PoE Switch
Özellikler
Teknik Özellikler
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | WS-C3560V2-24PS-E |
Product Type | Switch - 24 ports - L3 - Managed |
Form Factor | Rack mountable - 1U |
Switch Ports | 24 x 10/100 + 2 x SFP |
Power Over Ethernet (PoE) | Yes |
MAC Address Table Size | 12K entries |
Routing Protocol | OSPF, IGRP, BGP-4, RIP-1, RIP-2, EIGRP, HSRP, DVMRP, PIM-SM, static IP routing, PIM-DM, policy-based routing (PBR) |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2 |
Authentication Method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | Flow control, Layer 3 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, IPv6 support, event log, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
Flash Memory | 32 MB Flash |
LED Status Lights Indicators | Port status, link activity, port transmission speed, port duplex mode, status |
Connectivity Slots | |
Interfaces | 24 x 10Base-T/100Base-TX - RJ-45 - PoE |
1 x console - RJ-45 - management | |
2 x SFP (mini-GBIC) | |
Power Supply | |
Power Device | Power supply - internal |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Power Consumption Operational | 435 Watt |
Features | Redundant Power System (RPS) connector |
Dimensions / Weight / Miscellaneous | |
Width | 44.3 cm |
Depth | 29.5 cm |
Height | 4.4 cm |
Weight | 4.6 kg |
MTBF | 275,360 hour(s) |
Compliant Standards | CE, FCC Class A certified, CISPR 22 Class A, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CSA 22.2 No. 60950, EMC, FCC Part 15, UL 60950-1, IEC 60950-1 |
System Software | |
Software Included | Cisco IOS IP Services |
Cisco Catalyst 3560V2 24PS E PoE Switch Pdf Dosyası229.23 KB
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı : 24 Port
PoE Güç Bütçesi : 400-800 Watt
