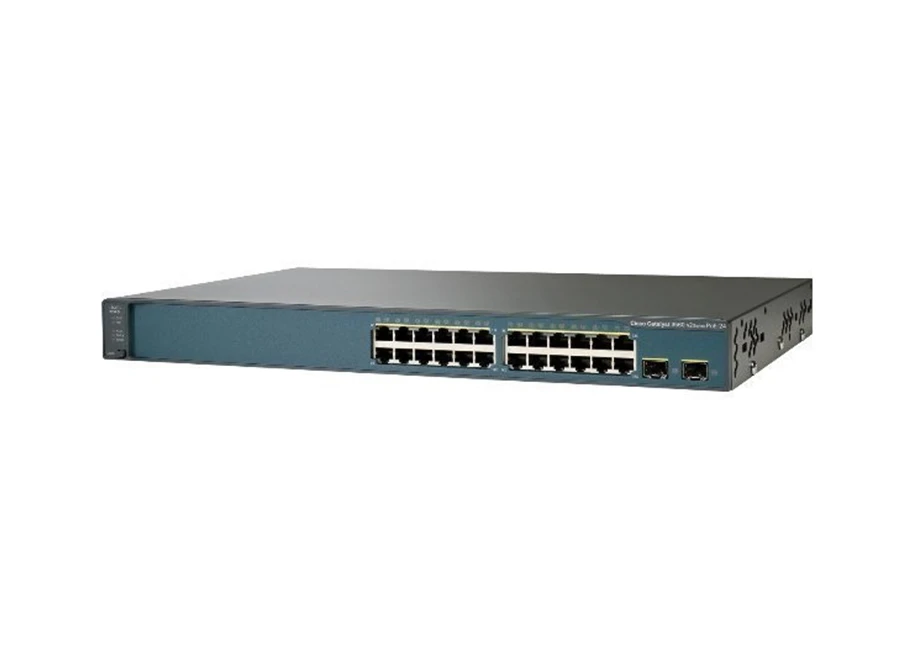

Cisco Catalyst 3560V2 24PS S PoE Switch
Özellikler
Teknik Özellikler
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | WS-C3560V2-24PS-S |
Product Type | Switch - 24 ports - L3 - Managed |
Form Factor | Rack mountable - 1U |
Switch Ports | 24 x 10/100 + 2 x SFP |
Power Over Ethernet (PoE) | Yes |
MAC Address Table Size | 12K entries |
Routing Protocol | RIP-1, RIP-2, static IP routing |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c |
Authentication Method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | Layer 3 switching, auto-sensing per device, DHCP support, auto-negotiation, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), MAC address filtering, IPv6 support, Spanning Tree Protocol (STP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
Flash Memory | 32 MB Flash |
LED Status Lights Indicators | Port status, link activity, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply) |
Connectivity Slots | |
Interfaces | 24 x 10Base-T/100Base-TX - RJ-45 - PoE |
1 x console - RJ-45 - management | |
2 x SFP (mini-GBIC) | |
Power Supply | |
Power Device | Power supply - internal |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Features | Redundant Power System (RPS) connector |
Dimensions / Weight / Miscellaneous | |
Width | 44.3 cm |
Depth | 29.5 cm |
Height | 4.4 cm |
Weight | 4.6 kg |
MTBF | 275,360 hour(s) |
Compliant Standards | CE, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A |
System Software | |
Software Included | Cisco IOS IP Base |
Cisco Catalyst 3560V2 24PS S PoE Switch Pdf Dosyası229.23 KB
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı : 24 Port
