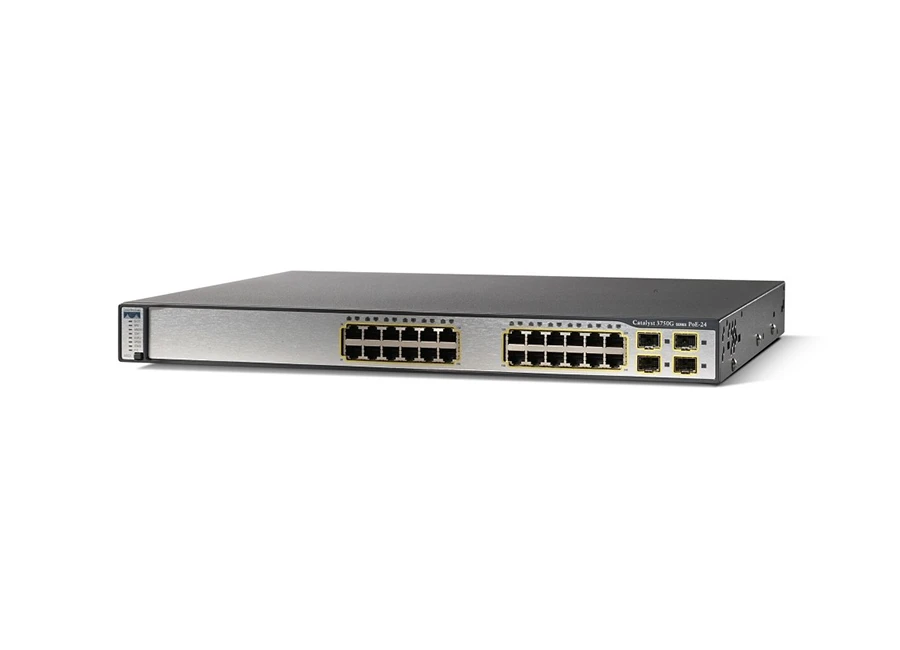

Cisco Catalyst 3750G 24PS S PoE Switch
Özellikler
- 24 Ethernet 10/100/1000 ports with IEEE 802.3af and Cisco prestandard PoE
- 4 SFP-based Gigabit Ethernet ports
- 32-Gbps, high-speed stacking bus
- Innovative stacking technology
- 1 RU stackable, multilayer switch
- Enterprise-class intelligent services delivered to the network edge
- IP Base software feature set (IPB)
Teknik Özellikler
Manufacturer Part Number | WS-C3750G-24PS-S |
Product Type | Managed, Stackable 24 ports L3 Switch |
Form Factor | Fixed, Rack Mountable 1U, Stackable/Clustering |
Switch Port density - Uplinks | 24 x 10/100/1000 Ethernet Ports + 4 x SFP |
Power Over Ethernet (PoE) | Yes |
Performance | Switching capacity : 32 Gbps |
Forwarding performance : 38.7 mpps | |
MAC Address Table Size | 12K entries |
Jumbo Frame Support | Yes |
Max Number of Stacks | 9 |
Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, RIPng |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
Features | Flow control, full duplex capability, Layer 3 switching, auto-sensing per device, IP-routing, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, stackable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, Cisco StackWise Technology, Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s |
DRAM Memory | 128 MB |
Flash Memory | 32 MB Flash |
LED Status Lights Indicators | Link activity, port transmission speed, port duplex mode, bandwidth utilization %, system, RPS (Redundant Power Supply) |
Connectivity / Expansion Slots | |
Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE |
1 x console - RJ-45 - management | |
Network stack device : 1 x x 2 | |
4 x SFP (mini-GBIC) | |
Power Supply Specifications | |
Power Device | Power supply - internal |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Power Consumption Operational | 540 Watt |
Features | Redundant Power System (RPS) connector |
Dimensions / Weight / Miscellaneous | |
Width | 44.5 cm |
Depth | 37.8 cm |
Height | 4.4 cm |
Weight | 6.1 kg |
MTBF | 182,373 hour(s) |
Compliant Standards | CE, FCC Class A certified, TUV GS, BSMI CNS 13438 Class A, CISPR 24, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CISPR 22, CSA 22.2 No. 60950, CB, FCC Part 15, MIC, AS/NZS 3548 |
System Software | |
Software Included | Cisco IOS IP Base |
Manufacturer Warranty | |
Service & Support | Limited lifetime warranty |
Service & Support Details | Limited warranty - lifetime |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı : 24 Port
PoE Güç Bütçesi : 400-800 Watt
