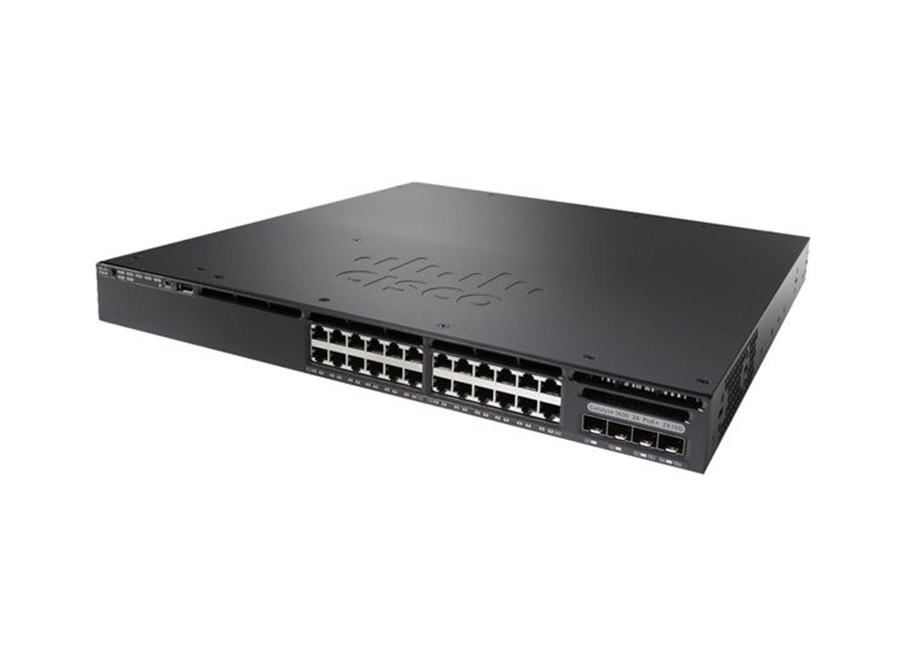

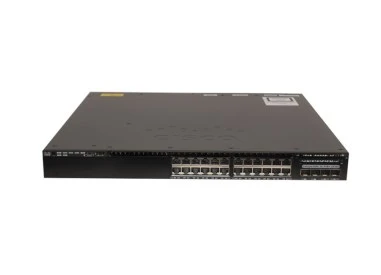

Cisco Catalyst 3650 24PD L PoE Switch
Teknik Özellikler
WS-C3650-24PD-L Specification | |
Model info: | WS-C3650-24PD-L |
Enclosure type | Rack-mountable - 1U |
Ports | 24 x 10/100/1000 (POE+) + 2 x 10G SFP+ & 2 x 1G SFP |
Network management Interface | -Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
-Management console port: RJ-45-to-DB9 cable for PC connections | |
Available PoE Power | 390W |
Switching Capacity | 88Gbps |
Maximum stacking number | 9 |
Stack Bandwidth | 160Gbps |
Forwarding Performance | 68.45Mpps |
FNF entries | disabled (IP base license required) |
Maximum VLANs IDs | 255 |
Maximum VLANs IDs | 32K |
CPU | Multicore CPU |
RAM | 4 G |
Flash Memory | 2 G |
Wireless | |
Number of AP per switch/stack | 50 |
Number of wireless clients per switch/stack | 1000 |
Total number of WLANs per switch | 64 |
Wireless bandwidth per switch | up to 20Gbps |
Supported Aironet AP series | 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
Expansion / Connectivity | |
Console ports | USB (Type-B), Ethernet (RJ-45) |
Expansion Slot(s) | power redundant slot |
Accessory & Rack Moubt Kits | -ACC-KIT-T1: Accessory kit |
-RACK-KIT-T1: Rack mount kit | |
-4PT-KIT-T1:Extension rails and brackets for four-point mounting | |
Stacking module & cable | -C3650-STACK-KIT: Stack Module |
-STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length | |
-STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length | |
-STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length | |
Power supply | PWR-C2-640WAC |
Power Device | Power supply - redundant - plug-in module |
Power Redundancy | optional |
Voltage range (Auto) | 100V-240V |
Power Consumption of standalone (in Watts) | 101.5 (max) |
Miscellaneous | |
Width | 17.5 Inches (44.5 cm) |
Depth | 17.625 Inches (44.8 cm) |
Height | 1.73 Inches (4.4 cm) |
Shipping Weight | 17.49 Kg |
Rack Mounting Kit | optional |
MTBF in hours | 528,28 |
Compliant Standards | -IEEE 802.1D Spanning Tree Protoco |
-IEEE 802.1p CoS Prioritization | |
-IEEE 802.1Q VLAN | |
-IEEE 802.1s | |
-IEEE 802.1w | |
-IEEE 802.1X | |
-IEEE 802.1X-Rev | |
-IEEE 802.11 | |
-IEEE 802.1ab (LLDP) | |
-IEEE 802.3ad | |
-IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports | |
-IEEE 802.3 10BASE-T | |
-IEEE 802.3u 100BASE-TX | |
-IEEE 802.3ab 1000BASE-T | |
-IEEE 802.3z 1000BASE-X | |
-RMON I and II standards | |
-SNMP v1, v2c, and v3 | |
System software / license | |
System software | IOS LAN Base (Upgradable) |
EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
Access Point Licenses | -L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery) |
-L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) | |
-L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) | |
-LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license) | |
features | -EEM -RPS Support -IP service-level agreements (SLAs) -Advanced IP unicast routing protocols |
-Jumbo Frames -VLANS -Voice Vlan -VTPv2 -CDPv2 -LLDP -802.3ad LACP and PAgP -PVST/PVST+ | |
-802.1W/802.1S -Port Fast/Uplink Fast -Dynamic Trunking Protocol (DTP) -port CoS Trust and Override | |
-Trusted Boundary -ACL Classification -ingress Policing -Auto QoS -Per VLAN policies -802.1p queues | |
-Scheduling -Priority Queuing -Configure CoS Priority Queues -Configure CoS Priority Queues | |
-Configure Queue Weights -Configure Buffers and Thresholds -Class & Policy Maps | |
-Modify CoS and DSCP Mapping -Weighted Tail Drop -IGMPv1,v2,v3 and MLDv1, v2 -DHCP server | |
-DSCP transparency -HSRP, VRRP, BLGP -RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 | |
-VRF-lite -PIM-SM/DM, PIM sparse-dense mode, SSM -Flexible Netflow | |
Advanced Network security | -Port security -DHCP snooping -Dynamic ARP inspection (DAI) -IP source guard -The Unicast Reverse Path Forwarding (uRPF) |
-Bidirectional data support on a SPAN -User authentication | |
-Private VLAN -Router and VLAN ACLs -complete identity and security | |
-Multidomain authentication -MAC address notification | |
-IGMP filtering -Cisco security VLAN ACL | |
-Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) | |
-Port-based ACLs -TrustSec SXP -IEEE 802.1ae | |
-TACACS+ and RADIUS authentication -Cisco standard and extended IP security router ACLs | |
- Bridge protocol data unit (BPDU) Guard | |
-Spanning Tree Root Guard (STRG) -Wireless end-to-end security | |
Technical Support and Services | -Cisco SMARTnet Service -Cisco Smart Foundation Service |
-Cisco SP Base Service -Cisco Focused Technical Support Services | |
Environmental Ranges | |
With AC power supply Operating environment and altitude | |
Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45ºC) |
Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
With DC power supply Operating environment and altitude (NEBS) | |
Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
Operating altitude | Up to 16,400 Feet (Up to 5000m) |
Storage altitude | Up to 16,400 Feet (Up to 5000m) |
Operating relative humidity | 5% to 96% noncondensing |
Storage relative humidity | 5% to 96% noncondensing |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF |
Storage environment | -40ºF to 160ºF |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı : 24 Port
PoE Güç Bütçesi : 200-400 Watt
