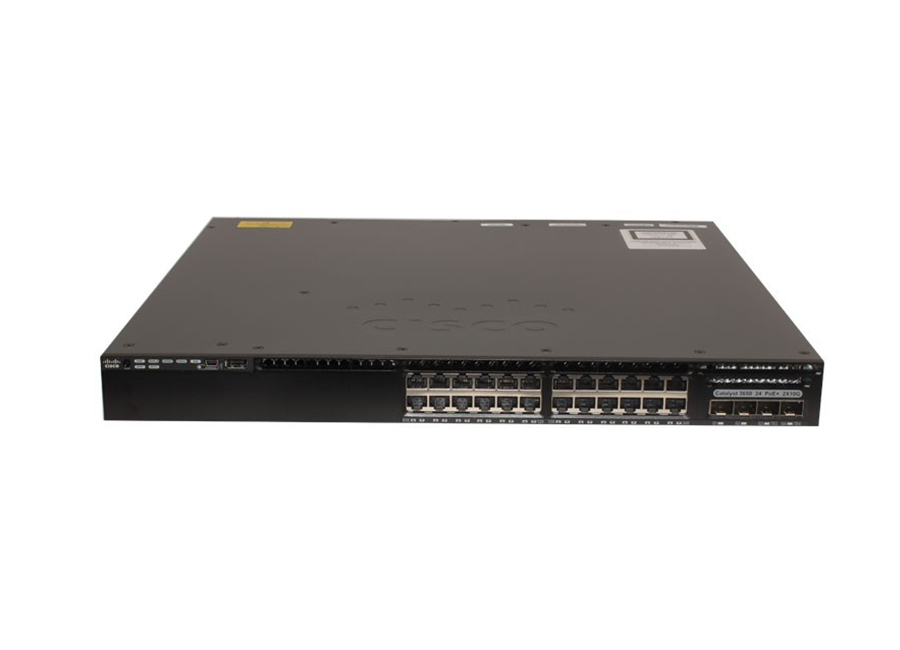

Cisco Catalyst 3650 24PD S PoE Switch

Teknik Özellikler

WS-C3650-24PD-S
Enclosure type	Rack-mountable - 1U
Ports	24 x 10/100/1000 (POE+) + 2 x 10G SFP+ & 2 x 1G SFP
Network management Interface	- Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
Network management Interface	- Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power	390W
Switching Capacity	88Gbps
Maximum stacking number	9
Stack Bandwidth	160Gbps
Forwarding Performance	68.45Mpps
FNF entries	24000
Maximum VLANs IDs	4,094
Maximum VLANs IDs	32K
CPU	Multicore CPU
RAM	4 G
Flash Memory	2 G
Wireless
Number of AP per switch/stack	50
Number of wireless clients per switch/stack	1000
Total number of WLANs per switch	64
Wireless bandwidth per switch	up to 20Gbps
Supported Aironet AP series	3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports	USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)	power redundant slot
Accessory & Rack Moubt Kits	-ACC-KIT-T1: Accessory kit
	-RACK-KIT-T1: Rack mount kit
	-4PT-KIT-T1: Extension rails and brackets for four-point mounting
Stacking module & cable	-C3650-STACK-KIT: Stack Module
	-STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
	-STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
	-STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length
Power supply	PWR-C2-640WAC
Power Device	Power supply - redundant - plug-in module
Power Redundancy	optional
Voltage range (Auto)	100V-240V
Power Consumption of standalone (in Watts)	101.5 (max)
Miscellaneous
Width	17.5 Inches (44.5 Cm)
Depth	17.625 Inches (44.8 Cm)
Height	1.73 Inches (4.4 Cm)
Shipping Weight	17.49 Kg
Rack Mounting Kit	optional
MTBF in hours	528,28
Compliant Standards	- IEEE 802.1D Spanning Tree Protoco
	- IEEE 802.1p CoS Prioritization
	- IEEE 802.1Q VLAN
	- IEEE 802.1s
	- IEEE 802.1w
	- IEEE 802.1X
	- IEEE 802.1X-Rev
	-IEEE 802.11
	- IEEE 802.1ab (LLDP)
	- IEEE 802.3ad
	- IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
	- IEEE 802.3 10BASE-T
	- IEEE 802.3u 100BASE-TX
	- IEEE 802.3ab 1000BASE-T
	- IEEE 802.3z 1000BASE-X
	- RMON I and II standards
	- SNMP v1, v2c, and v3
System software / license
System software	IOS IP Base (Upgradable)
EnergyWise license	ENERGY-MGMT, ENERGY-MGT-100-K9
Software license	-C3650-24-S-E: IP Base to IP Services RTU paper license
Software license	-L-C3650-24-S-E: IP Base to IP Services RTU electronic license
Access Point Licenses	-L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery)
	-L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
	-L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
	-LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
features	-RPS Support - Jumbo Frames - VLANS -Voice Vlan -VTPv2 -CDPv2 -LLDP - 802.3ad LACP and PAgP - PVST/PVST+ - 802.1W/802.1S -Port Fast/Uplink Fast -Dynamic Trunking Protocol (DTP) - port CoS Trust and Override - Trusted Boundary - ACL Classification -ingress Policing - Auto QoS - Per VLAN policies - 802.1p queues - Scheduling - Priority Queuing - Configure CoS Priority Queues -Configure CoS Priority Queues - Configure Queue Weights - Configure Buffers and Thresholds -Class & Policy Maps - Modify CoS and DSCP Mapping - Weighted Tail Drop - IGMPv1,v2,v3 and MLDv1, v2 - DHCP server - DSCP transparency - HSRP, VRRP - RIPv1, v2 EIGRP stub, PIM stub, OSPF stub - IPV6 management
Advanced Network security	- Port security - DHCP snooping -Dynamic ARP inspection (DAI) - IP source guard -The Unicast Reverse Path Forwarding (uRPF)
	- Bidirectional data support on a SPAN - User authentication
	- Private VLAN -Router and VLAN ACLs - complete identity and security
	- Multidomain authentication - MAC address notification
	- IGMP filtering - Cisco security VLAN ACL
	- Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
	- Port-based ACLs - TrustSec SXP - IEEE 802.1ae
	- TACACS+ and RADIUS authentication - Cisco standard and extended IP security router ACLs
	- Bridge protocol data unit (BPDU) Guard
	- Spanning Tree Root Guard (STRG) - Wireless end-to-end security
Technical Support and Services	- Cisco SMARTnet Service - Cisco Smart Foundation Service - Cisco SP Base Service - Cisco Focused Technical Support Services
Environmental Ranges
With AC power supply Operating environment and altitude
Operating temperature up to 5000 ft (1500 m)	23ºF to 113ºF / -5ºC to +45ºC
Operating temperature up to 10,000 ft (3000 m)	23ºF to 104ºF / -5ºC to +40ºC
Short-term exception at sea level with single fan failure	23ºF to 113ºF / -5ºC to +45ºC
Short-term exception up to 5000 feet (1500 m)	23ºF to 122ºF / -5ºC to 50ºC
Short-term exception up to 10,000 feet (3000 m)	23ºF to 113ºF / -5ºC to 45ºC
With DC power supply
Operating environment and altitude (NEBS)
Operating temperature up to 6000 ft (1800 m)	23ºF to 113ºF / -5ºC to +45ºC
Operating temperature up to 10,000 ft (3000 m)	23ºF to 104ºF / -5ºC to +40ºC
Operating temperature up to 13,000 ft (4000m)	23ºF to 95ºF / -5ºC to 35ºC
Short-term exception up to 6,000 feet (1800 m)	23ºF to 131ºF /-5ºC to +55ºC
Short-term exception up to 10,000 feet (3000 m)	23ºF to 122ºF / -5ºC to +50ºC
Short-term exception up to 13,000 feet (4000 m)	23ºF to 113ºF / -5ºC to +45ºC
Short-term exception at sea level with single fan failure	23ºF to 113ºF / -5ºC to +45º
Storage environment	-40ºF to 160ºF / -40ºC to 70ºC
Operating altitude	Up to 5000m
Storage altitude	Up to 5000m
Operating relative humidity	5% to 96% noncondensing
Storage relative humidity	5% to 96% noncondensing
Short-term exception at sealevel with single fan failure	23ºF to 113ºF / -5ºC to +45º
Storage environment	-40ºF to 160ºF / -40ºC to 70ºC
Operating altitude	Up to 4000m
Storage altitude	Up to 4573m
Operating relative humidity	10% to 95% noncondensing
Storage relative humidity	10% to 95% noncondensing
