Açıklama

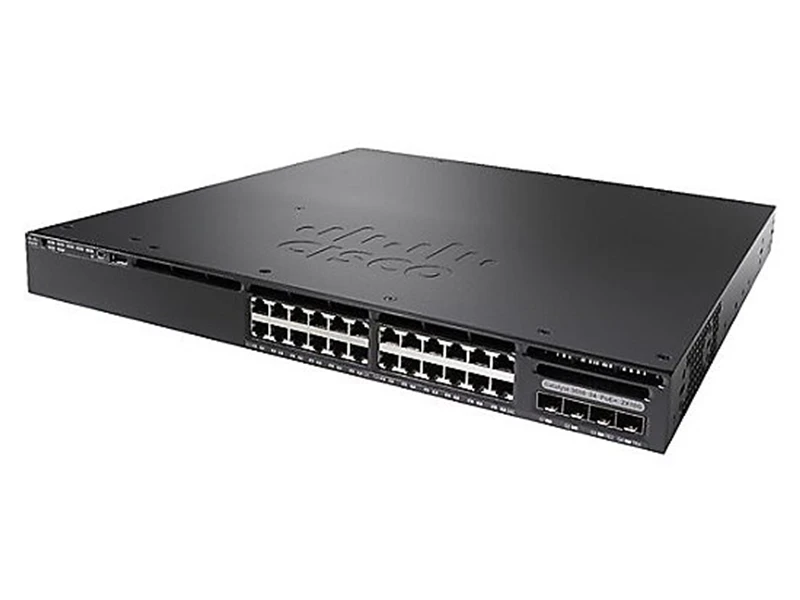

Cisco Catalyst 3650 24PDM L 10/100/1000 PoE Switch
Teknik Özellikler
| Product Description |
| Cisco Catalyst 3650-24PDM-L - switch - 24 ports - managed - desktop, rack-mountable |
| Device Type |
| 24 ports - managed - stackable |
| Enclosure Type |
| Desktop, rack-mountable 1U |
| Subtype |
| Gigabit Ethernet |
| Ports |
| 24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) |
| PoE+ |
| PoE Budget |
| 390 W |
| Performance |
| Switching capacity: 88 Gbps ¦ Forwarding performance: 41.66 Mpps |
| Capacity |
| IPv4 routes: 24000 ¦ Virtual interfaces (VLANs): 255 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size |
| 32000 entries |
| Jumbo Frame Support |
| 9198 bytes |
| Routing Protocol |
| Static IP routing |
| Remote Management Protocol |
| SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Features |
| Full duplex capability, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby RouterProtocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), DiffServ Code Point (DSCP) support |
| Compliant Standards |
| IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Power |
| AC 120/230 V ( 50/60 Hz ) |
| Power Redundancy |
| Optional |
| Dimensions (WxDxH) |
| 17.5 in x 17.6 in x 1.7 in |
| Weight |
| 16.01 lbs |
| Manufacturer Warranty |
| Limited lifetime warranty |
| Bundled Services |
| Limited lifetime warranty |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
Desk Mount
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
