Açıklama

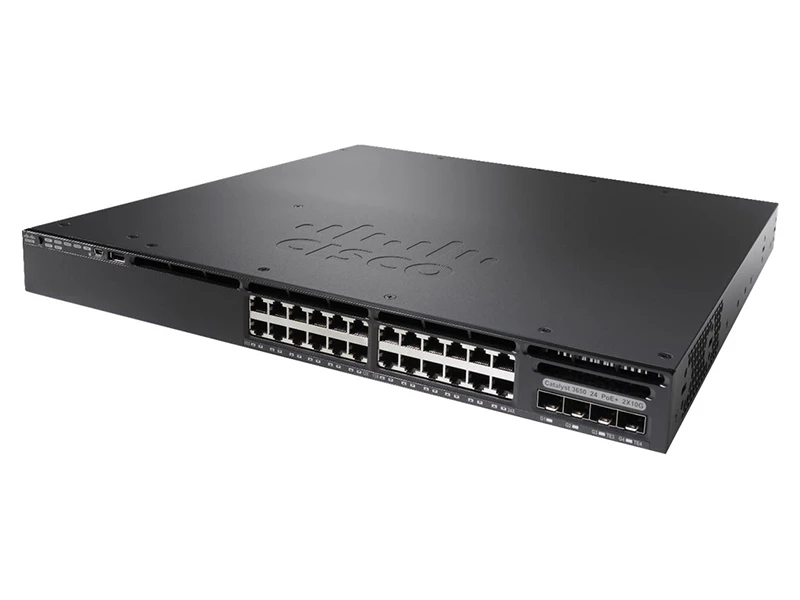

Cisco Catalyst 3650 8X24UQ S 10/100/1000 PoE Switch
Teknik Özellikler
Product Description |
Cisco Catalyst 3650-8X24UQ-S - switch - 24 ports - managed - desktop, rack-mountable |
Device Type |
Switch - 24 ports - L3 - managed - stackable |
Enclosure Type |
Desktop, rack-mountable 1U |
Subtype |
Gigabit Ethernet |
Ports |
16 x 10/100/1000 (UPOE) + 8 x 100/1000/2.5G/5G/10G (UPOE) + 4 x 10 Gigabit SFP+ (uplink) |
Power Over Ethernet (PoE) |
UPOE |
PoE Budget |
820 W |
Performance |
Switching capacity: 272 Gbps ¦ Forwarding performance: 202.38 Mpps ¦ Stacking bandwidth: 160 Gbps |
Capacity |
IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Virtual interfaces (VLANs): 4094 ¦ Switched virtual interfaces (SVIs): 1000 ¦ IPv4 routes: 24000 |
MAC Address Table Size |
32000 entries |
Jumbo Frame Support |
9198 bytes |
Routing Protocol |
BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
Features |
Full duplex capability, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Yol Tarifi Göster Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Cisco StackWise Technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support |
Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
Power |
AC 120/230 V ( 50/60 Hz ) |
Power Redundancy |
Optional |
Dimensions (WxDxH) |
17.5 in x 19.1 in x 1.7 in |
Weight |
16.71 lbs |
Manufacturer Warranty |
Limited lifetime warranty |
Bundled Services |
Limited lifetime warranty |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
Desk Mount
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 800 Watt >
