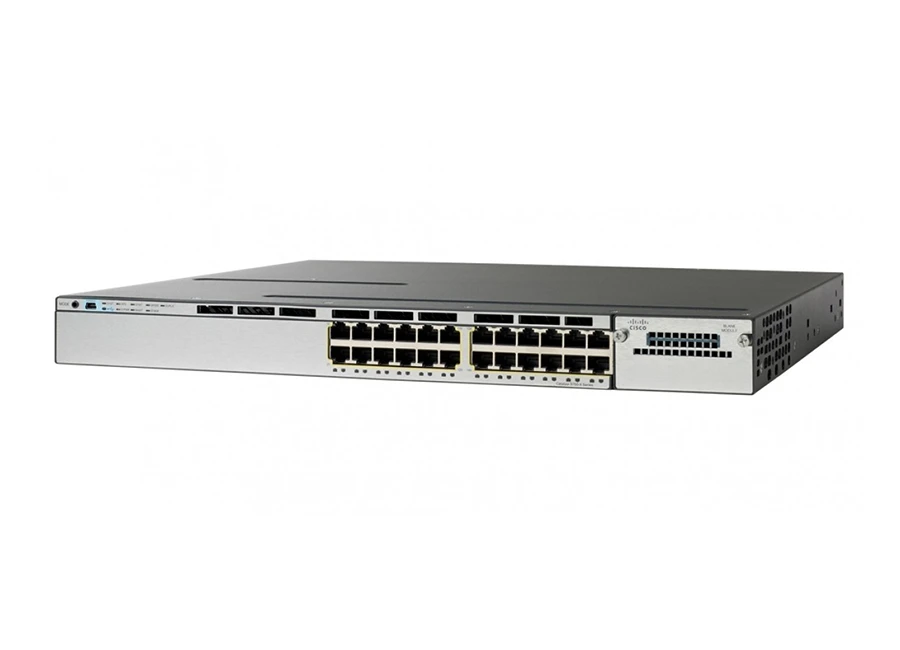

Cisco Catalyst 3850 24P E PoE Switch

Teknik Özellikler

WS-C3850-24P-E
model info: WS-C3850-24P-E
enclosure type Rack-mountable - 1U
Ports 24 x 10/100/1000 (POE+)
Network management Interface -Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
-Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power 435W
Switching Capacity 92Gbps
Maximum stacking number up to 9 switches with same IOS feature set in same series
Stack Bandwidth 480Gbps
Forwarding Performance 68.4Mpps
FNF entries 24,000 flows
Maximum VLANs IDs 1
MAC Address Table Size 32K
CPU Multicore CPU
RAM 4 G
Flash Memory 2 G
Wireless
Number of AP per switch/stack 100
Number of wireless clients per switch/stack 2000
Total number of WLANs per switch 64
Wireless bandwidth per switch up to 20Gbps
Supported Aironet AP series 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s) 1 network module slot and 1 power redundant slot
Network Modules Selection -C3850-NM-4-1G: 4 x 1G uplinks network module
-C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable -STACK-T1-50CM StackWise stacking cable with a 0.5 m length
-STACK-T1-1M StackWise stacking cable with a 1.0 m length
-STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended) -CAB-SPWR-30CM stack power cable with a 30CM length
-CAB-SPWR-150CM stack power cable with a 150CM length
Power supply PWR-C1-715WAC
Power Device Power supply - redundant - plug-in module
Power Redundancy optional
Voltage range (Auto) 100V-240V
Power Consumption of standalone(in Watts) 88.32 (max)
Miscellaneous
Width 17.5 Inches (44.5 cm)
Depth 17.7 Inches (44.5 Cm)
Height 1.75 Inches (4.45 cm)
Weight 16.3 Pounds (7.4Kg)
Rack Mounting Kit optional
 MTBF in hours 269,45
Compliant Standards -IEEE 802.1D Spanning Tree Protoco
-IEEE 802.1p CoS Prioritization
-IEEE 802.1Q VLAN
-IEEE 802.1s
-IEEE 802.1w
-IEEE 802.1X
-IEEE 802.1X-Rev
-IEEE 802.11
-IEEE 802.1ab (LLDP)
-IEEE 802.3ad
-IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
-IEEE 802.3 10BASE-T
-IEEE 802.3u 100BASE-TX
-IEEE 802.3ab 1000BASE-T
-IEEE 802.3z 1000BASE-X
-RMON I and II standards
-SNMP v1, v2c, and v3
-IEEE 802.3af and IEEE 802.3at
System software / license
System software IOS IP Services
EnergyWise license ENERGY-MGMT, ENERGY-MGT-100-K9
Access Point Licenses -L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
-L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
-LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
Features -EEM -RPS Support -Jumbo Frames -VLANS -Voice Vlan -VTPv2 -CDPv2 -LLDP -802.3ad LACP and PAgP
-PVST/PVST+ -802.1W/802.1S -Port Fast/Uplink Fast  -Dynamic Trunking Protocol (DTP) -port CoS Trust
and Override -Trusted Boundary -ACL Classification -ingress Policing -Auto QoS -Per VLAN policies
-802.1p queues -Scheduling -Priority Queuing -Configure CoS Priority Queues -Configure CoS Priority
Queues -Configure Queue Weights -Configure Buffers and Thresholds -Class & Policy Maps -Modify CoS
and DSCP Mapping -Weighted Tail Drop -IGMPv1,v2,v3 and MLDv1, v2 -DHCP server -DSCP transparency
-HSRP, VRRP, BLGP -RIPv1, v2 EIGRP, PIM  OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4  -VRF-lite  -PIM-SM/DM,
PIM sparse-dense mode, SSM -Flexible Netflow
Advanced Network security -Port security -DHCP snooping -Dynamic ARP inspection (DAI) -IP source guard -The Unicast Reverse Path Forwarding (uRPF)
-Bidirectional data support on a SPAN -User authentication
-Private VLAN  -Router and VLAN ACLs  -complete identity and security
-Multidomain authentication -MAC address notification
-IGMP filtering -Cisco security VLAN ACL
-Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
-Port-based ACLs -TrustSec SXP -IEEE 802.1ae
-TACACS+ and RADIUS authentication -Cisco standard and extended IP security router ACLs
- Bridge protocol data unit (BPDU) Guard
-Spanning Tree Root Guard (STRG) -Wireless end-to-end security
Technical Support and Services -Cisco SMARTnet Service -Cisco Smart Foundation Service -Cisco SP Base Service -Cisco Focused Technical Support Services
Environmental Ranges
With AC power supply Operating environment and altitude
Operating temperature up to 5000 ft (1500 m) 23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF (-5ºC to +40ºC)
Short-term exception at sealevel with single fan failure 23ºF to 113ºF (-5ºC to +45ºC)
Short-term exception up to 5000 feet (1500 m) 23ºF to 122ºF (-5ºC to 50ºC)
Short-term exception up to 10,000 feet (3000 m) 23ºF to 113ºF (-5ºC to 45ºC)
With DC power supply Operating environment and altitude (NEBS)
Operating temperature up to 6000 ft (1800 m) 23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF (-5ºC to +40ºC)
Operating temperature up to 13,000 ft (4000m) 23ºF to 95ºF (-5ºC to 35ºC)
Short-term exception up to 6,000 feet (1800 m) 23ºF to 131ºF (-5ºC to +55ºC)
Short-term exception up to 10,000 feet (3000 m) 23ºF to 122ºF (-5ºC to +50ºC)
Short-term exception up to 13,000 feet (4000 m) 23ºF to 113ºF (-5ºC to +45ºC)
Short-term exception at sealevel with single fan failure 23ºF to 113ºF (-5ºC to +45º)
Storage environment  -40ºF to 160ºF (-40ºC to 70ºC)
Operating altitude Up to 13,000 Feet (Up to 4000 Meters)
Storage altitude Up to 15,000 Feet (Up to 4573 Meters)
Operating relative humidity 10% to 95% noncondensing
Storage relative humidity 10% to 95% noncondensing

pdfCisco Catalyst 3850 24P E PoE Switch Pdf Dosyası1.76 MB

Teknik Kısa

PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
PoE Port Sayısı : Tooltip 24 Port
PoE Güç Bütçesi : 400-800 Watt
