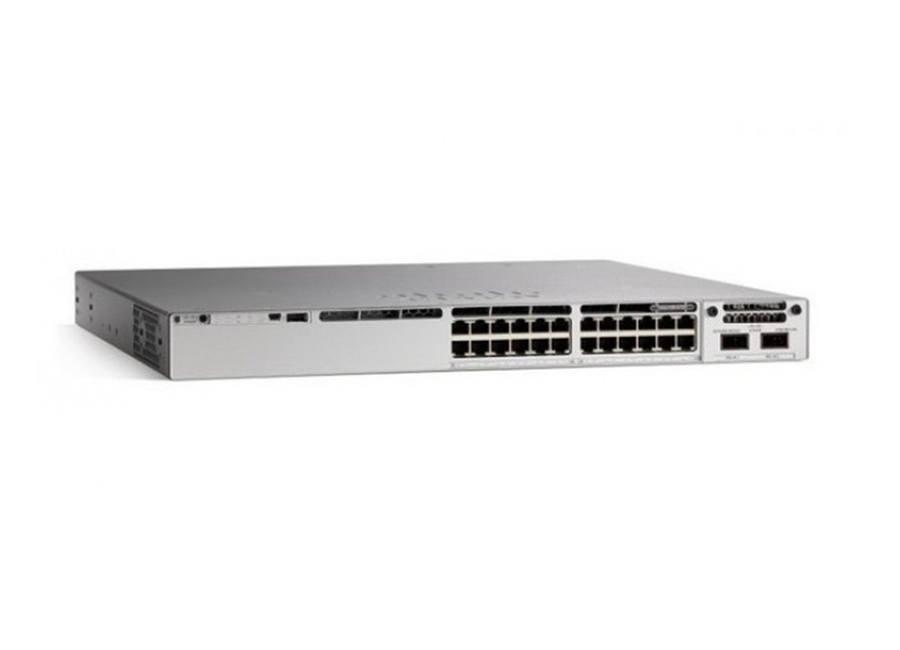

Cisco Catalyst 9200L 24P 4X PoE Switch
Teknik Özellikler
Cisco Catalyst 9200L - Network Essentials - switch - 24 ports - rack-mountable | |
Device Type | Switch - 24 ports - L3 - stackable |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 740 W |
Performance | Stacking bandwidth: 80 Gbps ¦ Switching capacity: 128 Gbps ¦ Forwarding rate: 190.4 Mpps |
Capacity | Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8 |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
Features | Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
Power | AC 120/230 V (50-60 Hz) |
Power Redundancy | Optional |
Dimensions (WxDxH) | 44.5 cm x 4.4 cm x 28.8 cm |
Weight | 5.5 kg |
Manufacturer Warranty | Limited lifetime warranty |
Extended Specification | |
General | |
Capacity | Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8 |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
Device Type | Switch - 24 ports - L3 - stackable |
Enclosure Type | Rack-mountable |
Features | Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR) |
Flash Memory | 4 GB |
Jumbo Frame Support | 9198 bytes |
MAC Address Table Size | 16000 entries |
Performance | Stacking bandwidth: 80 Gbps ¦ Switching capacity: 128 Gbps ¦ Forwarding rate: 190.4 Mpps |
PoE Budget | 740 W |
Ports | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
Power Over Ethernet (PoE) | PoE+ |
RAM | 2 GB |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
Subtype | Gigabit Ethernet |
Dimensions & Weight | |
Depth | 4.4 cm |
Height | 28.8 cm |
Weight | 5.5 kg |
Width | 44.5 cm |
Environmental Parameters | |
Humidity Range Operating | 5 - 90% (non-condensing) |
Humidity Range Storage | 5 - 90% (non-condensing) |
Max Storage Temperature | 70 °C |
Min Storage Temperature | -40 °C |
Expansion / Connectivity | |
Interfaces | 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45 |
Manufacturer Warranty | |
Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
Miscellaneous | |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 300386, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
MTBF | 390,310 hours |
Power | |
Installed Qty | 2 (max) |
Power Device | Internal power supply - hot-plug |
Power Redundancy | Optional |
Voltage Required | AC 120/230 V (50-60 Hz) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı : 24 Port
PoE Güç Bütçesi : 400-800 Watt
