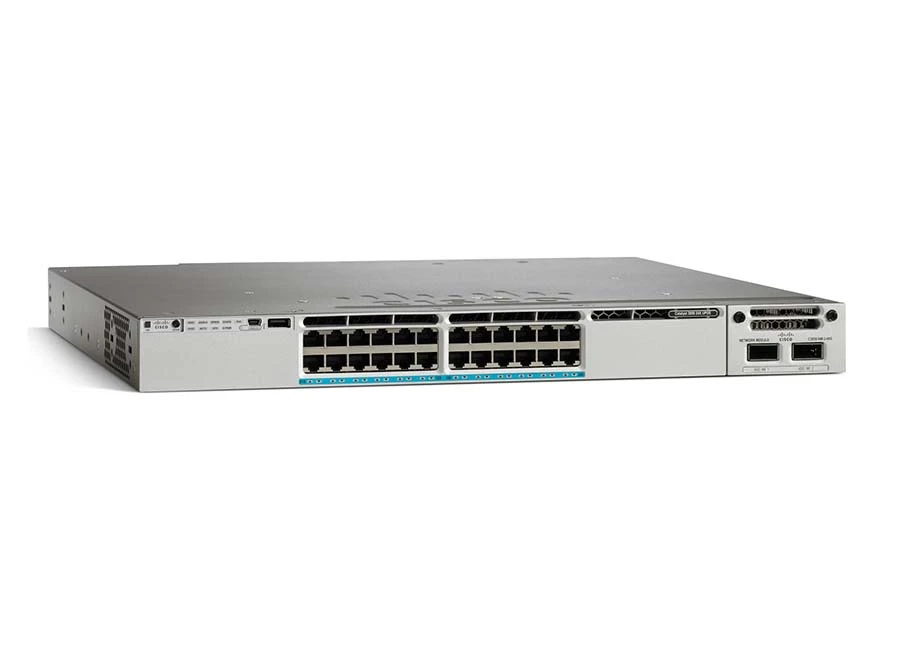

Cisco Catalyst 3850 24XU L PoE Switch

Teknik Özellikler

WS-C3850-24XU-L
model info:	WS-C3850-24XU-L
enclosure type	Rack-mountable - 1U
Ports	Stackable 24 100M/1G/2.5G/5G/10G UPoE ports
Network management Interface	-Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
Network management Interface	-Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power	580W
Maximum stacking number	up to 9 switches with same IOS feature set in same series
Stack Bandwidth	480Gbps
Forwarding Performance	500 Mpps (80B packets)
CPU	Multicore CPU
RAM	4 G
Flash Memory	2 G
Wireless
Number of AP per switch/stack	100
Number of wireless clients per switch/stack	2000
Total number of WLANs per switch	64
Wireless bandwidth per switch	up to 20Gbps
Supported Aironet AP series	3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports	USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)	1 network module slot and 1 power redundant slot
Network Modules Selection	C3850-NM-4-1G
	C3850-NM-2-10G
	C3850-NM-4-10G
	C3850-NM-8-10G
	C3850-NM-2-40G
Stacking cable	-STACK-T1-50CM StackWise stacking cable with a 0.5 m length
	-STACK-T1-1M StackWise stacking cable with a 1.0 m length
	-STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended)	-CAB-SPWR-30CM stack power cable with a 30CM length
Stack Power Cable (recommended)	-CAB-SPWR-150CM stack power cable with a 150CM length
Power supply	PWR-C1-1100WAC/2=
Power supply	PWR-C1-715WAC/2
Power Device	Power supply - redundant - plug-in module
Power Redundancy	optional
Voltage range (Auto)	100V-240V
Power Consumption of standalone(in Watts)	84.97 (max)
Miscellaneous
Dimensions (H x W x D)	1.75 x 17.5 x 19.2 inch; 4.45 x 44.5 x 48.8 cm
Rack Mounting Kit	optional
MTBF in hours	203,15
Compliant Standards	-IEEE 802.1D Spanning Tree Protoco
	-IEEE 802.1p CoS Prioritization
	-IEEE 802.1Q VLAN
	-IEEE 802.1s
	-IEEE 802.1w
	-IEEE 802.1X
	-IEEE 802.1X-Rev
	-IEEE 802.11
	-IEEE 802.1ab (LLDP)
	-IEEE 802.3ad
	-IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
	-IEEE 802.3 10BASE-T
	-IEEE 802.3u 100BASE-TX
	-IEEE 802.3ab 1000BASE-T
	-IEEE 802.3z 1000BASE-X
	-RMON I and II standards
	-SNMP v1, v2c, and v3
System software / license
System software	IOS LAN Base
EnergyWise license	ENERGY-MGMT, ENERGY-MGT-100-K9
Technical Support and Services	-Cisco SMARTnet Service -Cisco Smart Foundation Service -Cisco SP Base Service -Cisco Focused Technical Support Services
Environmental Ranges
With AC power supply Operating environment and altitude
Operating temperature up to 5000 ft (1500 m)	23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m)	23ºF to 104ºF (-5ºC to +40ºC)
Short-term exception at sealevel with single fan failure	23ºF to 113ºF (-5ºC to +45ºC)
Short-term exception up to 5000 feet (1500 m)	23ºF to 122ºF (-5ºC to 50ºC)
Short-term exception up to 10,000 feet (3000 m)	23ºF to 113ºF (-5ºC to 45ºC)
With DC power supply Operating environment and altitude (NEBS)
Operating temperature up to 6000 ft (1800 m)	23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m)	23ºF to 104ºF (-5ºC to +40ºC)
Operating temperature up to 13,000 ft (4000m)	23ºF to 95ºF (-5ºC to 35ºC)
Short-term exception up to 6,000 feet (1800 m)	23ºF to 131ºF (-5ºC to +55ºC)
Short-term exception up to 10,000 feet (3000 m)	23ºF to 122ºF (-5ºC to +50ºC)
Short-term exception up to 13,000 feet (4000 m)	23ºF to 113ºF (-5ºC to +45ºC)
Short-term exception at sealevel with single fan failure	23ºF to 113ºF (-5ºC to +45º)
Storage environment	-40ºF to 160ºF (-40ºC to 70ºC)
Operating altitude	Up to 13,000 Feet (Up to 4000 Meters)
Storage altitude	Up to 15,000 Feet (Up to 4573 Meters)
Operating relative humidity	10% to 95% noncondensing
Storage relative humidity	10% to 95% noncondensing
