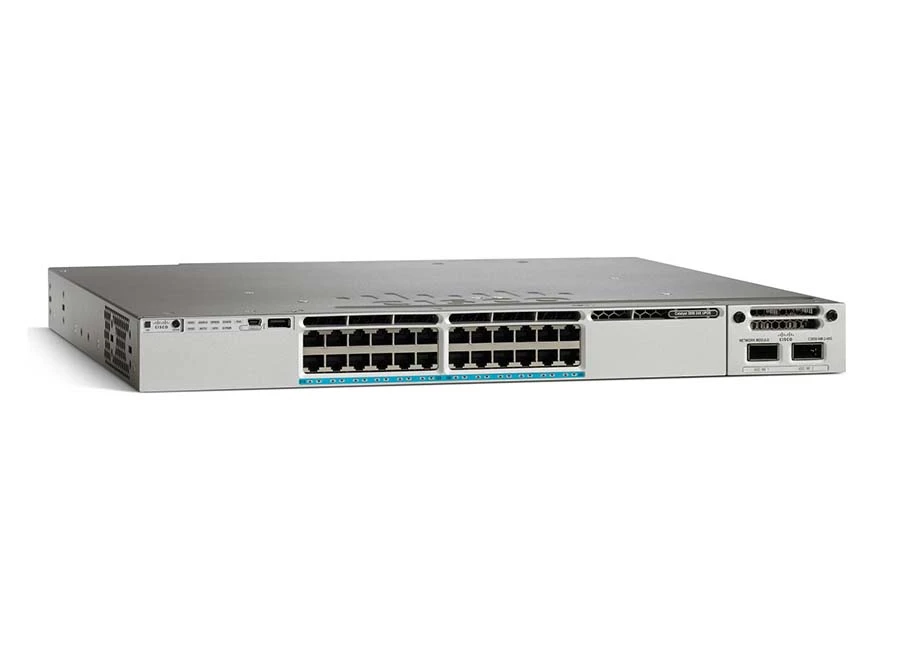

Cisco Catalyst 3850 24XUW S PoE Switch

Teknik Özellikler

WS-C3850-24XUW-S
General
Device Type Switch - 24 ports - L3 - managed - stackable - with 5 x Cisco Access Point Adder License (LIC-CTIOS-1A)
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 1/2.5/5/10GBase-T (UPOE)
Power Over Ethernet (PoE) UPOE
PoE Budget 580 W
Performance Switching capacity: 640 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding performance: 500 Mpps
Capacity IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Virtual interfaces (VLANs): 4000 ¦ QoS hardware queues per port: 8
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, IGMPv2, IGMP, PIM-SM, static IP routing, PIM-DM, IGMPv3, EIGRP for IPv6, OSPFv3, policy-based routing (PBR), RIPng, MLDv2, MLD
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, Radio Service Set ID (SSID), TACACS+
Features DHCP support, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, Intrusion Detection System (IDS), IPv6 support, Stateful switchover (SSO), PIM snooping, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Virtual Route Forwarding-Lite (VRF-Lite), Dynamic ARP Inspection (DAI), Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Port Security, Remote Switch Port Analyzer (RSPAN), CAPWAP support, Energy Efficient Ethernet, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Wireless Intrusion Prevention System (WIPS), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, radio resource management (RRM), IP source guard, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Control plane protection (CoPP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM 4 GB
Flash Memory 2 GB
Status Indicators Port transmission speed, port duplex mode, power, system, active, status, PoE
Expansion / Connectivity
Interfaces 24 x 1/2.5/5/10GBase-T RJ-45 UPOE - 60 W ¦ 1 x USB Type A ¦ 1 x management (mini-USB) Type B ¦ 1 x console RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 2 x network stack device
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power
Power Device Internal power supply
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 1100 Watt
Voltage Required AC 120/230 V (50 - 60 Hz)
Miscellaneous
Cables Included 1 x stacking cable
MTBF 203,150 hours
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, KCC, RoHS, FCC Part 15 A, AS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, EN 300386, AS/NZS CISPR 22, CNS 13438, EN 55022 Class A
Software / System Requirements
Software Included Cisco IOS IP Base
Dimensions & Weight
Width 17.5 in
Depth 19.2 in
Height 1.8 in
Weight 17.64 lbs
Manufacturer Warranty
Service & Support Limited warranty - advance hardware replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Range Operating 10 - 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F

pdfCisco Catalyst 3850 24XUW S PoE Switch Pdf Dosyası1.76 MB

Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Montaj Tipi : Rack Mount
PoE Port Sayısı : Tooltip 24 Port
PoE Güç Bütçesi : 400-800 Watt
