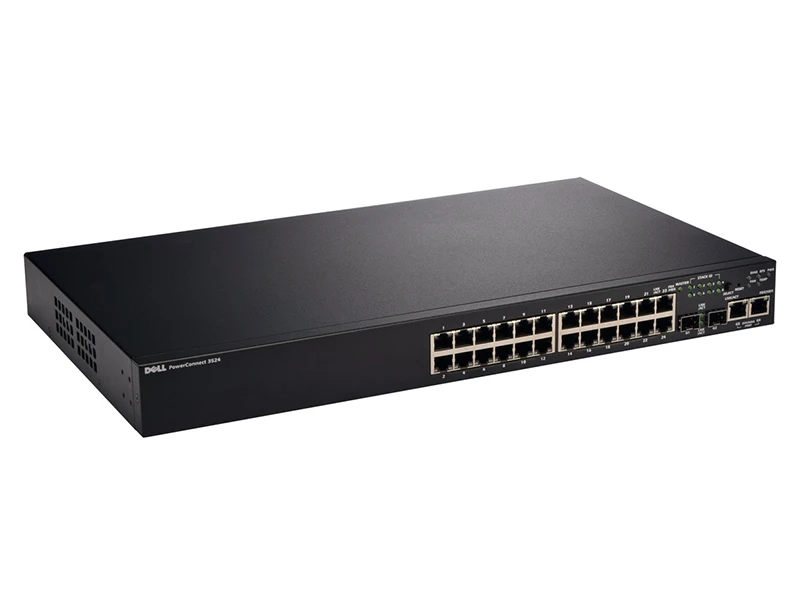

Dell Networking 3524P 10/100 PoE Switch
Teknik Özellikler
| General |
| Enclosure Type : Desktop - 1U |
| Subtype : Fast Ethernet |
| Ports : 24 x 10/100 + 2 x shared SFP + 2 x 10/100/1000 |
| Power Over Ethernet (PoE) : PoE |
| Authentication Method : RADIUS, Secure Shell (SSH), TACACS+ |
| MAC Address Table Size : 8K entries |
| Authentication Method : Secure Shell (SSH), RADIUS, TACACS+ |
| Status Indicators : Link activity, port transmission speed, port duplex mode, power, link OK |
| Encryption Algorithm : SSL, SSL 3.0, SSL 2.0 |
| Manufacturer : Dell, Inc. |
| Networking |
| Subcategory : Network hubs and switches |
| Subtype : Fast Ethernet |
| Form Factor : Desktop |
| Stackable : Stackable |
| Features : BOOTP support, flow control, layer 2 switching, manageable, port mirroring, temperature sensor, Broadcast Storm Control, DHCP support, IGMP snooping, Quality of Service (QoS), Syslog support, VLAN support, auto-negotiation, auto-uplink (auto MDI/MDI-X) |
| Compliant Standards : IEEE 802.1D, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP) |
| Ports Qty : 24 |
| Manageable : Yes |
| Remote Management Protocol : HTTP, HTTPS, RMON, SNMP 1, SNMP 2c, SNMP 3, Telnet |
| Power Device |
| Nominal Voltage : AC 120/230 V |
| Frequency Required : 50/60 Hz |
| Type : Internal power supply |
| Power |
| Voltage Required : AC 120/230 V ( 50/60 Hz ) |
| Interface Provided |
| Qty : 2, 2, 24 |
| Connector Type : SFP (mini-GBIC) |
| Miscellaneous |
| Rack Mounting Kit : Included |
| Encryption Algorithm : SSL, SSL 2.0, SSL 3.0 |
| Height (Rack Units) : 1m |
| Environmental Parameters |
| Min Operating Temperature : 32 °F |
| Max Operating Temperature : 113 °F |
| Humidity Range Operating : 10 - 90% |
| Dimensions & Weight |
| Depth : 15.2 in |
| Width : 17.3 in |
| Height : 1.7 in |
| Weight : 17.64 lbs |
| Ports |
| Type : 10/100 |
| Qty : 24 |
| Ports (2nd) |
| Type : Shared SFP |
| Qty : 2 |
| Ports (3rd) |
| Type : 10/100/1000 |
| Qty : 2 |
Dell Networking 3524P 10/100 PoE Switch Pdf Dosyası396.61 KB
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı :
24 Port
