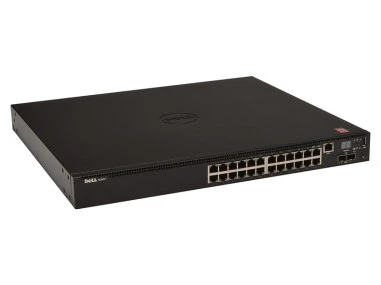

Dell Networking N3024P 10/100/1000 PoE Plus Switch
Teknik Özellikler
| Standard Traffic-Port Attributes |
| Standard Port Attributes : 24x 1GbE RJ45 auto-sensing (1Gb/100Mb/ 10Mb) PoE+ fixed ports |
| Integrated 10GbE SFP+ dedicated ports (beyond standard ports) : 2 |
| Integrated GbE SFP combo ports : 2 |
| Power-over-Ethernet Plus (PoE+) : S |
| Maximum PoE Watts per port : 30.8 watts on 24 ports |
| Modular Traffic-Port Attributes |
| Hot swappable expansion module bay : Rear |
| Module support for 10GbE : S |
| Traffic-Port Features |
| Auto-negotiation for speed and flow control : S |
| Auto MDI/MDIX : S |
| Port mirroring : S |
| Flow-based port mirroring : S |
| Broadcast storm control : S |
| Energy Efficient Ethernet per port settings : S |
| Port Profile support including Admin profiles : S |
| Management- & Configuration-Port Attributes |
| 1 RJ45 console/management port with RS232 signaling : Front |
| 1 Out-of-Band (OOB) Management Port (10/100/1000BASE-T) : Front |
| 1 USB (Type A) port for configuration : Front |
| Stacking Attributes |
| Integrated rear mini-SAS stacking ports : 2x 21Gbps |
| Maximum stacking distance (meters) : 3 |
| Maximum stacking speed (full-duplex) : 84Gbps |
| Switch Attributes |
| Switch Fabric Capacity (full duplex) : 212Gbps |
| Forwarding Rate : 158Mpps |
| Line-rate Layer 2 switching : S |
| Line-rate Layer 3 routing : S |
| CPU Memory : 1GB |
| Flash Memory : 256MB |
| Packet Buffer Memory : 4MB |
| Dual firmware images on-board : S |
| Temperature sensors for environmental monitoring : S |
| Cable diagnostics : S |
| Optical transceiver (SFP/SFP+) diagnostics : S |
| Switch auditing support : S |
| UDLD : S |
| Chassis |
| Dimensions in inches (H x W x D) : 1.7126 x 17.0866 x 16.0236 |
| Dimensions in millimeters (H X W X D) : 43.5 x 434.0 x 407.0 |
| Rack Height : 1U |
| ReadyRails ™ rack mounting system, no tools required : S |
| Approximate Weight in pounds (without modules) : 14.5505 |
| Approximate Weight in kilograms (without modules) : 6.6 |
| Power & Cooling Hardware |
| Internal hot swappable power supply bays : 2 |
| Hot swappable power supplies (included) :1 |
| Power supply redundancy : OA |
| Redundant fans : S |
| Variable speed fans : S |
| Air flow : IO to PSU (Normal) |
| Environmental Operating Conditions |
| Operating Temperature in Celsius : ° to 45° C |
| Operating Temperature in Fahrenheit : 32° to 113° F |
| Storage Temperature in Celsius : -40° to 65° C |
| Storage Temperature in Fahrenheit : -40° to 149° F |
| Operating Relative Humidity : 95% |
| Storage Relative Humidity : 85% |
| Power Supply (Watts) : 715 or 1100 |
| Max Thermal Output (BTU/hr) : 4467.10 |
| Power Consumption Max (Watts) : 1287 |
| Power Supply Efficiency : 80% or better in all operating modes |
| Modules (optional) |
| 2-port 10 Gigabit BASE-T RJ45 hot swappable uplink module : OA |
| 2-port 10 Gigabit SFP+ hot swappable uplink module : OA |
| 715w, hot swappable, adds redundancy or to power all PoE+ ports fully : OA |
| 1100w, hot swappable, adds redundancy or to power all PoE+ ports fully : OA |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
PoE Port Sayısı :
24 Port
24 Port Montaj Tipi : Rack Mount
