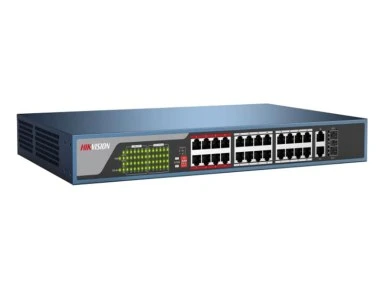

Hikvision DS 3E0326P E/M PoE Switch
Özellikler
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.1Q, and IEEE802.3x Ethernet standards
- 24*10/100 Base-TX Ethernet ports, one 10/100/1000 Base-T Ethernet port and one 10/100/1000 Base-X SFP optical module port
- Ports 1 - 24 are 10/100 Mbps downlink ports and comply with IEEE 802.3af and IEEE 802.3at.
- The maximum of 30W port output PoE power and the maximum of 225W total output PoE power
- Support four network modes: Priority, Standard, Isolate and Extend
- 4K MAC address and MAC address learning
- 8.8 Gbps backplane bandwidth
- Store-and-Forward switching
- All-mental construction
- 13 inch length and 1 U standard height size allow it to be mounted on subrack.
Teknik Özellikler
Ports | |
10/100M RJ45 | 24 |
10/100/1000M RJ45 | 1 |
1000M SFP | 1 independent |
Port of high priority | Port 1 - 8 |
Performance | |
Switching Capacity | 8.8 Gbps |
Store-and-forward | Supported |
MAC address table | 4 k |
MAC address learning | Auto-learning/ Auto-aging |
Power Over Ethernet | |
PoE Standard | IEEE 802.3af, IEEE802.3at |
Working Mode | Priority, Standard, Isolate, Extend |
PoE cable core | Supports 8-pin power supply |
PoE port | Oca.24 |
Port max. power | 30 W |
Switch max. power | 225 W |
General | |
Power Supply | 100~240 V AC,50/60 Hz |
Power Consumption | ≤250w |
Working Temperature | Operating Temperature: 0 °C ~ 40 °C |
Working Humidity | Operating Humidity: 10% - 90% RH non-condensing |
Storage Temperature | Storage Temperature: -40 °C ~ 70 °C |
Storage Humidity | Storage Humidity: 5% - 90% RH non-condensing |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
PoE Port Sayısı : 24 Port
PoE Güç Bütçesi : 200-400 Watt
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
