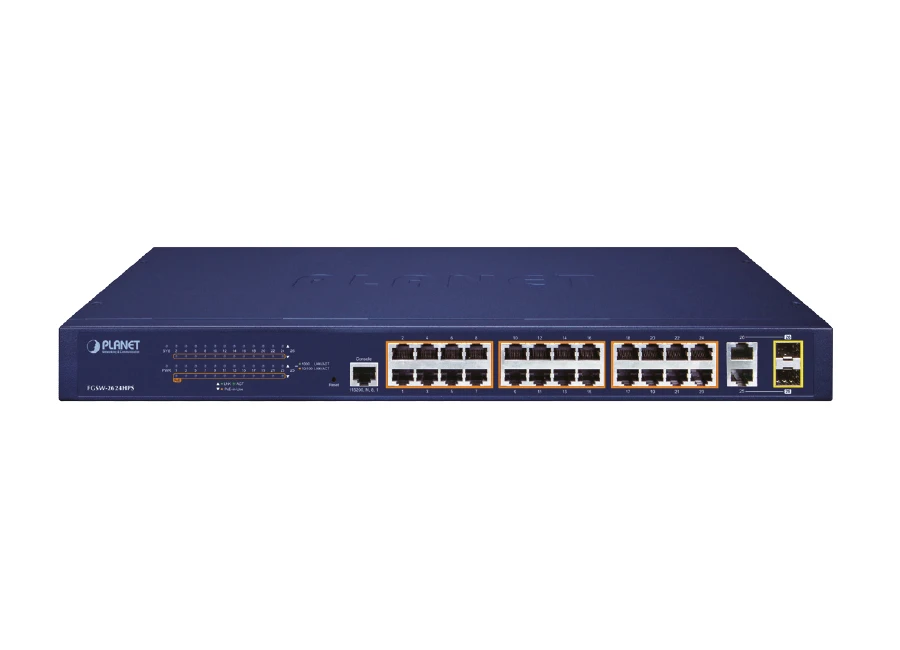

Planet FGSW 2624HPS4 PoE Switch
Özellikler
Physical Port
- 24-port 10/100BASE-TX RJ45 copper with 24-port IEEE 802.3at/af PoE injector
- 2-port 10/100/1000BASE-T Gigabit RJ45 copper
- 2 1000BASE-X mini-GBIC/SFP slots, shared with port-25 to port-26
- Reset button for system management
- Complies with IEEE 802.3at Power over Ethernet Plus End-span PSE
- Complies with IEEE 802.3af Power over Ethernet End-span PSE
- Up to 24 IEEE 802.3at / 802.3af devices powered
- Supports PoE Power up to 30.8 watts for each PoE port
- Detects powered device (PD) automatically
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
- PoE Power Usage
- PoE Management
- Per port PoE function enable/disable
- PoE Port Power feeding priority
- Per PoE port power limit
- PD classification detection
- PoE power sequential
Layer 2 Features
- Auto-MDI/MDI-X detection on each RJ45 port
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- Supports broadcast storm control
- Supports VLAN
- IEEE 802.1Q tag-based VLAN, up to 32 VLANs groups, out of 4095 VLAN IDs- Port-based VLAN, up to 26 VLAN groups- MTU VLAN (Multi-tenant Unit VLAN)
- Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)
- Supports Spanning Tree Protocol
- STP, IEEE 802.1d Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
- Port mirroring to monitor the incoming or outgoing traffic on a particular port
- Provides port mirror (Many-to-1)
Quality of Service
- 2 priority queues on all switch ports
- Traffic classification
- Port-based priority- IEEE 802.1p
- based priority
- IP TOS / DSCP
- based priority
- TCP / UDP port
- based QoS
- Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
- Supports IGMP Snooping v1 and v2 (excluding IGMP Query feature)
Security
- Physical port to MAC address binding
- TCP/UDP port number filter: Forwarding or discarding typical network applications
- Port mirroring to monitor the incoming or outgoing traffic on a particular port
Management
- Switch Management Interfaces
- Web switch management
- SNMP v1 switch management
- Firmware upload/download via HTTP
- Hardware reset button for system reboot or resetting to factory default
Teknik Özellikler
Hardware Specifications | |
10/100Mbps Copper Ports | 24 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
Gigabit Copper Ports | 2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
SFP/mini-GBIC Slots | 2 1000BASE-X SFP interfaces, shared with Port-25 to Port-26 |
Switch Architecture | Store-and-Forward |
Switch Fabric | 8.8Gbps / non-blocking |
Throughput | 6.54Mpps@64Bytes |
Address Table | 4K entries, automatic source address learning and ageing |
Shared Data Buffer | 2.75Mb embedded memory for packet buffers |
Flow Control | IEEE 802.3x pause frame for full-duplex |
Back pressure for half-duplex | |
Maximum Transmit Unit | 1518 Bytes |
Reset Button | < 5 sec: System reboot |
> 5 sec: Factory default | |
Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height |
Weight | FGSW-2624HPS: 4142g |
FGSW-2624HPS4: 4566g | |
Power Consumption | FGSW-2624HPS: Max. 297 watts / 1013.4 BTU |
FGSW-2624HPS4: Max. 513 watts / 1750.4 BTU | |
ESD Protection | Contact Discharge 4KV DC |
Air Discharge 8KV DC | |
LED | System: |
Power (Green) | |
10/100BASE-TX RJ45 Interfaces (Port 1 to Port 24): | |
10/100Mbps LNK/ACT (Green) | |
PoE-in-Use (Orange) | |
10/100/1000BASE-T RJ45 / SFP Interfaces (Port 25 to Port 26): | |
LNK/ACT (Green) | |
100/1000 (Green) | |
PoE Usage: | |
100W, 200W, 300W, 400W (Orange) | |
Cable | Twisted-pair: |
10BASE-T: 2-pair UTP Cat 3, 4, 5 for up to 100 meters | |
100BASE-TX: 2-pair UTP Cat 5, 5e for up to 100 meters | |
1000BASE-T: 4-pair UTP Cat 5e, 6 for up to 100 meters | |
Fiber-optic Cable: | |
1000BASE-SX: | |
50/125μm or 62.5/125μm multi-mode fiber-optic cable, up to 550m (varying on SFP module) | |
1000BASE-LX: | |
9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120 kilometers (varying on SFP module) | |
Power over Ethernet | |
PoE Standard | IEEE 802.3af / 802.3at PoE / PSE |
PoE Power Supply Type | End-span |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Output | Per Port 54V DC, Max. 30.8 watts |
PoE Power Budget | 420 watts (max.) @ 25 degrees C |
420 watts (max.) @ 50 degrees C | |
PoE Ability | PD @ 7 watts: 24 units |
PD @ 15.4 watts: 24 units | |
PD @ 30 watts: 14 units | |
Layer 2 Functions | |
Port Configuration | Port disable / enable |
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection | |
Flow Control disable / enable | |
Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status and trunk status |
Port Mirroring | TX / RX / Both |
Many-to-1 monitor | |
VLAN | 802.1Q tagged-based VLAN, up to 32 VLAN groups, out of 4094 VLAN IDs |
Port-based VLAN, up to 26 VLAN groups | |
MTU VLAN | |
Link Aggregation | 1 group of 2-Port 10/100/1000BASE-T trunk supported |
QoS | Allows to assign low / high priority on each port |
First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy | |
IGMP Snooping | IGMP (v1 / v2) Snooping, up to 32 multicast groups |
Without Query supported | |
Security Control | MAC address binding |
TCP & UDP filter | |
Management Functions | |
Basic Management Interfaces | Web browser, SNMP v1 |
Standards Conformance | |
Regulation Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 Ethernet |
IEEE 802.3u Fast Ethernet | |
IEEE 802.3ab Gigabit Ethernet | |
IEEE 802.3z Gigabit Ethernet over Fiber-Optic | |
IEEE 802.3x Full-duplex flow control | |
IEEE 802.1Q VLAN | |
IEEE 802.1p QoS | |
IEEE 802.1D Spanning Tree Protocol | |
IEEE 802.1w Rapid Spanning Tree Protocol | |
IEEE 802.3af Power over Ethernet | |
IEEE 802.3at Power over Ethernet Plus | |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C |
Storage | Relative Humidity: 5 ~ 95% (non-condensing) |
Temperature: -10 ~ 70 degrees C | |
Relative Humidity: 5 ~ 95% (non-condensing) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
PoE Port Sayısı : 24 Port
PoE Güç Bütçesi : 200-400 Watt
