Açıklama

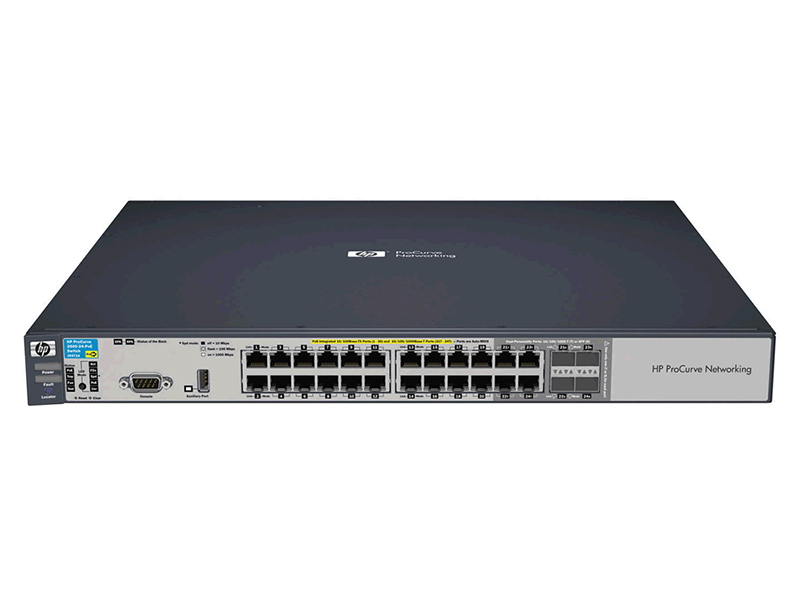

HP E3500 24 J9471A 10/100 PoE Switch
Teknik Özellikler
| Ports |
| 20 RJ-45 autosensing 10/100 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX), Media Type: Auto-MDIX, Duplex: half or full; 4 dual-personality ports, each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type |
| 100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or an open mini-GBIC slot (for use with mini-GBIC transceivers); 1 RS-232C DB-9 console port |
| Memory and processor |
| Management Module : Stackable memory and processor: Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB compact flash, 256 MB DDR SDRAM |
| Latency |
| 100 Mb Latency: < 3.4 µs (LIFO 64-byte packets); 1000 Mb Latency: < 2.9 µs (LIFO 64-byte packets) |
| Throughput |
| up to 8.9 million pps (64-byte packets) |
| Routing/switching capacity |
| 12 Gbps |
| Routing table size |
| 10000 entries |
| Management features |
| HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C) |
| Power and operating requirements |
| Power consumption |
| 497 W (maximum), 91 W (standby) |
| Input voltage |
| 100-127 / 200-240 VAC |
| Input operating current |
| 6.6 / 3.0 A |
| Input frequency |
| 50 / 60 Hz |
| Safety |
| EN 60950/IEC 60950; CAN/CSA 22.2 No. 60950; EN 60825; UL 60950 |
| Electromagnetic compatibility |
| FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A |
| Operating temperature range |
| ºC to 55ºC |
| Operating humidity range |
| 15 to 95% @ 104°F (40°C) (non-condensing) |
| Dimensions and weight |
| Product dimensions (W x D x H) |
| 39.2 x 44.3 x 4.4 cm |
| Product weight |
| 6 kg |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
20 Port
20 Port PoE Güç Bütçesi : 200-400 Watt
