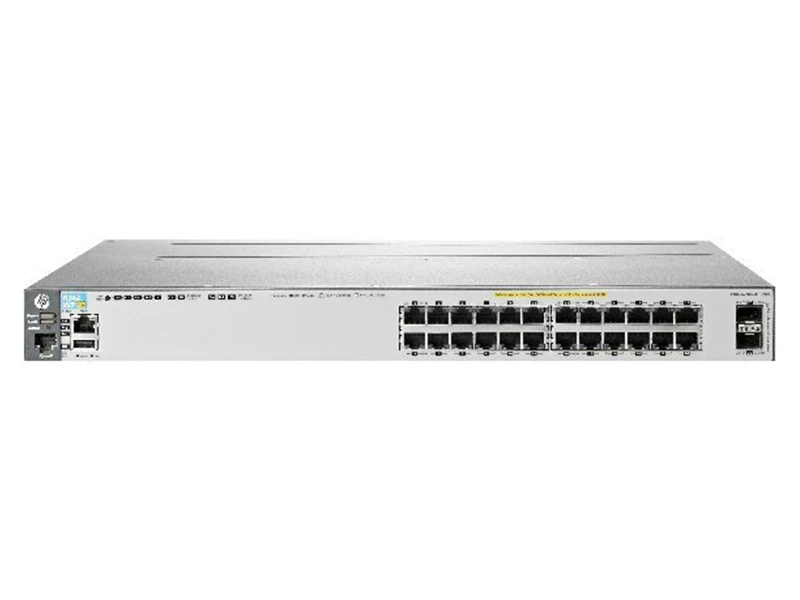

HP 3800 24G PoE Plus 24 Port PoE Plus J9573A 10/100/1000 PoE Switch
Teknik Özellikler
| General |
| Features |
| Flow control, Layer 2 switching, DHCP support, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMPsnooping, DiffServ support, IPv6 support, sFlow, Rapid Spanning Tree Protocol (RSTP) support, Virtual Yol Tarifi Göster Redundancy Protocol (VRRP) support, |
| Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, PoE+, STP Root Guard, Uni-Directional Link Detection (UDLD), fan tray, MAC address lockout |
| Processor |
| 2 |
| Compliant Standards |
| IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.3an, IEEE 802.3at |
| Device Type |
| Switch - 24 ports - L4 - Managed |
| Enclosure Type |
| Rack-mountable 1U |
| Remote Management Protocol |
| SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI |
| RAM |
| 2 GB - SDRAM |
| Capacity |
| Routing table entries: 10000 |
| Flash Memory |
| 4 GB |
| MAC Address Table Size |
| 65500 entries |
| Encryption Algorithm |
| SSL |
| Routing Protocol |
| OSPF, RIP-1, RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, OSPFv3, MLDv2, MLD |
| Authentication Method |
| Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Performance |
| Throughput: 65.4 Mpps |
| Switching capacity: 88 Gbps |
| Power Over Ethernet (PoE) |
| PoE |
| Ports |
| 24 x 10/100/1000 (PoE) + 2 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ |
| Jumbo Frame Support |
| Yes |
| Subtype |
| Gigabit Ethernet |
| Expansion / Connectivity |
| Interfaces |
| 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE |
| 2 x 10Gb Ethernet - SFP+ |
| 1 x console - RJ-45 - management |
| 1 x RJ-45 - management |
| Expansion Slots |
| 1 (total) / 1 (free) x Stacking Module |
| Miscellaneous |
| Compliant Standards |
| FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, UL 60950, CSA 22.2 No. 60950, RoHS, IEC 60950-1, EN 60950-1, EN 60825 |
| Rack Mounting Kit |
| Included |
| Power |
| Power Device |
| Internal power supply - hot-plug |
| Voltage Required |
| AC 120/230 V ( 50/60 Hz ) |
| Installed Qty |
| 1 (installed) / 2 (max) |
| Power Redundancy |
| Optional |
| Power Redundancy Scheme |
| 1+1 (with optional power supply) |
| Environmental Parameters |
| Min Operating Temperature |
| 0 °C |
| Max Operating Temperature |
| 55 °C |
| Humidity Range Operating |
| 15 - 95% (non-condensing) |
| Min Storage Temperature |
| -40 °C |
| Max Storage Temperature |
| 70 °C |
| Humidity Range Storage |
| 15 - 90% (non-condensing) |
| Dimensions & Weight |
| Width |
| 44.3 cm |
| Depth |
| 46.7 cm |
| Height |
| 4.3 cm |
| Weight |
| 7.2 kg |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 4
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
24 Port
24 Port
