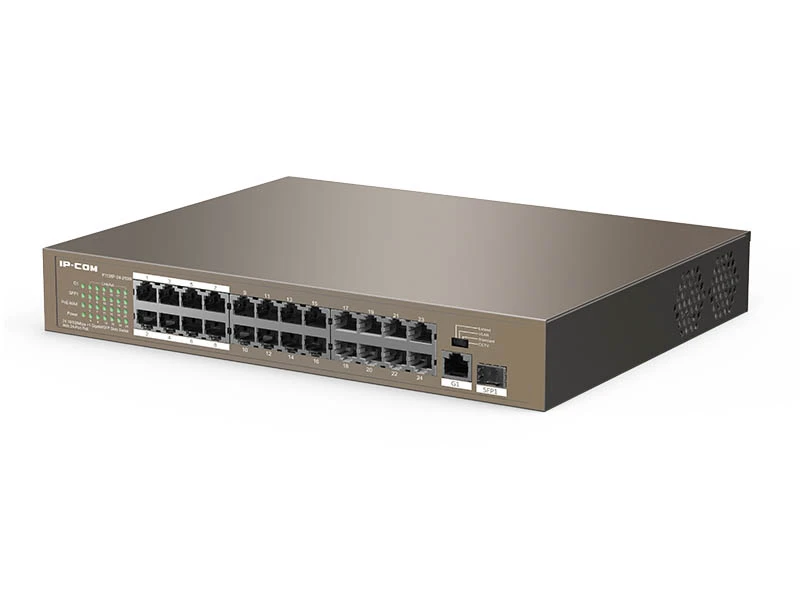

IP-COM F1126P 24 250W Gigabit PoE Switch
Özellikler
- 24 10/100 Mbps Base-TX RJ45 port; 1 10/100/1000 Mbps Base-T RJ45 port; 1 100/1000Base-X SFP port.
- Ports 1-24: IEEE 802.3af/at PoE ports; maximum power output of each PoE port: 30 W; maximum power output of the switch: 225 W.
- 13-inch desktop size, 1U height, rack mountable.
- Hardware DIP switch for ion among the CCTV, Standard, VLAN, and Extend modes.
- The Extend mode features 1-8 port transmission distance of up to 250m at 10 Mbps.
- Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP spoofing.
Teknik Özellikler
| Standard&Protocol | IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at |
| MTBF | ≥100,000hours |
| Indicator | 24*Link/Act per device |
| 1*G1 Link/Act per device | |
| 1*SFP Link/Act per device | |
| 1*PoE-MAX per device | |
| 1*Power per device | |
| Interface | 24 10/100Base-TX ports(Data/Power) |
| 1 10/100/1000Base-T port(Data) | |
| 1 1000Base-X SFP port | |
| Port Lightning Protection | 6KV |
| Store and forward | Yes |
| Exchange capacity | 8.8 Gbit/s |
| Packet forwarding rate | 6.55Mpps |
| MAC Address Table | 4K |
| PoE supply management | Port 1 to Port 16 support IEEE802.3at/af POE standard |
| PoE through pin | 1 2 4 5 +，3 6 7 8 - |
| Voltage input range | AC：100-240V～ 50/60Hz |
| Dimensions | 294*215*44mm( W x D x H ) |
| Power Consumption | in full configuration：<250W |
| PoE Max Power Supply：225W | |
| Port Features | CCTV: 1-8 ports based CoS, If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device to which the monitoring computer connects. This ensures smoother monitoring video playback. |
| Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. | |
| VLAN: In this mode,1-24 ports of the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports.Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing。 | |
| Extend: In this mode, the data rate of 1-8 port of the switch is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other. | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
Montaj Tipi : Rack Mount
