Açıklama

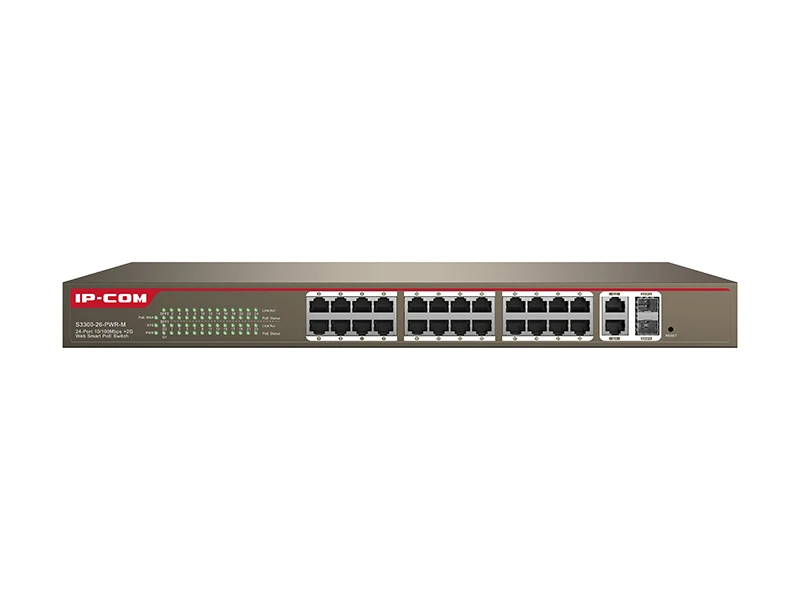

IP-COM S3300 26 PWR M Gigabit PoE Switch
Özellikler
- 24 10/100Base-TX RJ45 ports, 2 10/100/1000Base-T RJ45 ports and 2 100/1000Base-X SFP combos.
- 24 10/100Base-TX RJ45 ports support PoE power supply. The total power output is up to 370W and the maximum output of a single port is 40W.
- Powerful port management functions, including port mirroring, speed limit, trunk, etc.
- Supports IEEE 802.3Q Tag VLAN.
- Supports Web, SNMP management and network diagnostics maintenance methods.
Teknik Özellikler
| Standard and protocol supported | IEEE 802.3、 IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W、IEEE 802.1Q、IEEE 802.3af、IEEE 802.3at |
| MTBF | 100,000hours |
| Indicator LEDs | Link/Act, PoE Status,System, Power,PoE Max |
| Fixed Ports | 24 10/100Base-TX ports |
| 2 10/100/1000Base-T ports | |
| 2 1000Base-X SFP ports Combo) | |
| lightning protection | ≥6KV |
| Store and forward | Yes |
| Exchange capacity | 8.8 Gbit/s |
| MAC address entries | 4K MAC |
| Power supply module | Providing 24 ports under IEEE 802.3af(15.4W) or 12 ports under IEEE 802.3at(30W) |
| PoE through pin | 1 2 4 5 +，3 6 7 8 - |
| Voltage input range | AC：100－240V～ 50/60Hz |
| Dimension（L×W×H） | 440mm*284mm*44mm |
| Weight | ≤5kg |
| Total power consumption | <450W |
| PoE consumption up to 370W | |
| perating temperature | 0 ℃～40 ℃ |
| Storage temperature | -40 ℃～70 ℃ |
| Relative humidity(Operational) | 10%～95%（noncondensing） |
| Relative humidity(Storage) | 10%～95%（noncondensing） |
| Software Feature | |
| PoE management | Support setup of PoE |
| Support power adjustable by priority | |
| Support over temperature protection for PoE module | |
| VLAN | Support VLAN(4K) based on ports |
| Support 802.1QVLAN | |
| Mirroring | Support local mirror image |
| Link aggregation | Support LACP, manual link aggregation |
| Support up to 6 link aggregation groups and up to 8 GE ports per group | |
| QoS | Support message transmission for ports and limitation of speed |
| Support SP & WRR | |
| Layer 2 ring network protocol | Support STP/RSTP and looped Network for devices |
| Certification | FCC/CE/RoHS |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Çalışma Mesafesi : 250 Mt.
PoE Güç Bütçesi : 200-400 Watt
PoE Port Sayısı :
24 Port
24 Port
