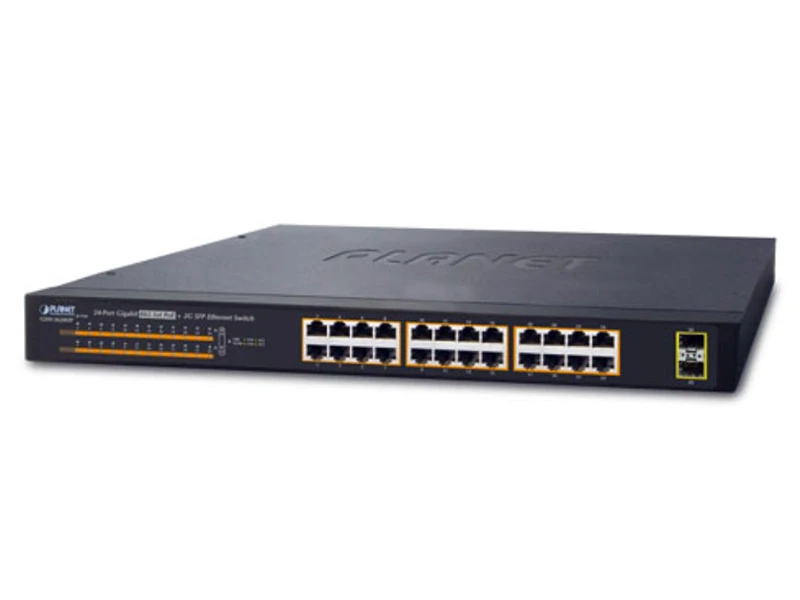

Planet GSW 2620HP 10/100/1000 PoE Switch
Özellikler
Physical Port
- 24-port 10/100/1000BASE-T Gigabit RJ45 copper
- 2 1000BASE-X mini-GBIC/SFP slots
- Complies with IEEE 802.3at High Power over Ethernet
- Complies with IEEE 802.3af Power over Ethernet
- Up to 24 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE Power up to 30.8 watts for each PoE port
- Each port supports 52V DC power to PoE Powered Device
- 220-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
Switching
- Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- Integrates address look-up engine, supporting 8K absolute MAC addresses
- 9K jumbo frame supports all speeds (10/100/1000Mbps)
- IEEE 802.1Q VLAN transparency
- Automatic address learning and address aging
- Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
Hardware
- 19-inch desktop size, 1U height
- LED indicators for PoE ready and PoE activity
- Ethernet Link Energy-saving technology
- Link down power saving
- Intelligent scale power based on cable length
Teknik Özellikler
| Hardware Specifications | |
| 10/100/1000BASE-T Copper Ports | 24 auto-MDI/MDI-X ports |
| 802.3af/802.3at PoE Injector Ports | 24 |
| 1000BASE-X SFP/mini-GBIC Slots | 2 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 52Gbps/non-blocking |
| Switch Throughput@64 bytes | 38.6Mpps@64 bytes |
| MAC Address Table | 8K entries |
| Jumbo Frame | 9216 bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex; back pressure for half-duplex |
| LED | System: Power (Green) |
| 10/100/1000T RJ45 Interfaces | |
| 1000 LNK / ACT (Green), 10/100 LNK/ACT (Orange), PoE (Orange) | |
| 1000Mbps SFP Interfaces | |
| 1000 LNK / ACT (Green) | |
| Dimensions (W x D x H) | 445 x 207 x 45 mm (1U height) |
| Enclosure | Metal |
| Weight | 2.85kg |
| Power Requirements | 100~240V AC, 50/60Hz, 4A (max.) |
| Thermal Fan | 2 |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE |
| IEEE 802.3at Power over Ethernet Plus/PSE | |
| PoE Power Output | Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) |
| Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) | |
| PoE Pin Assignment | Odd port: 1/2(+), 3/6(-) |
| Even port: 4/5(+), 7/8(-) | |
| PoE Power Budget | 220 watts |
| Number of PDs, 7 watts | 24 |
| Number of PDs, 15.4 watts | 14 |
| Number of PDs, 30 watts | 7 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.3ab Gigabit 1000BASE-T | |
| IEEE 802.3z Gigabit SX/LX | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at High Power over Ethernet | |
| IEEE 802.3az Energy-Efficient Ethernet | |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
| Storage | Temperature: -10 ~ 70 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
Aktarım Türü : Gbit Fiber
Çalışma Mesafesi : 100Mt.
