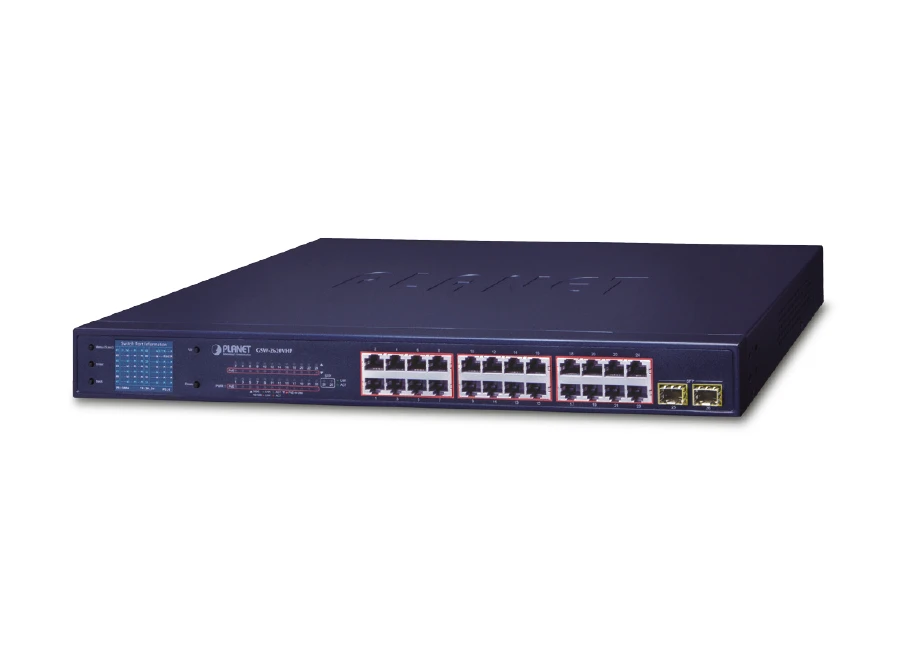

Planet GSW 2620VHP PoE Switch
Özellikler
Physical Port
- 24-port 10/100/1000BASE-T Gigabit RJ45 copper
- 2 1000BASE-X mini-GBIC SFP interfaces
- Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
- Up to 24 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE Power up to 32 watts for each PoE port
- Each port supports 54V DC power to PoE Powered Device
- 300-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m in standard mode and 250m in extend mode
Smart LCD
- LCD switch mode for "Standard", "VLAN" and "Extend" mode selection; the "Extend" mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
- Solid LCD switch mode to isolate ports to prevent broadcast storm and defend DHCP spoofing
- Power low-voltage, power over-voltage and PSE over-temperature protection
- Screen saver, fan control, factory default and save configuration
PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD alive check
Switching
- Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- 9216bytes packet size
- Integrates address look-up engine, supporting 8K absolute MAC addresses
- IEEE 802.1Q VLAN transparency
- Automatic address learning and address aging
Hardware
- 19-inch desktop size, 1U height, rack mountable
- 2-inch color LCD with smart management functions
- LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
- 3 silent fans to provide stable and efficient power performance
- Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
- Supports contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection
- Supports ±6KV surge immunity
Teknik Özellikler
Hardware Specifications | |
802.3af/802.3at PoE Injector Port | 24 |
10/100/1000BASE-T MDI/MDIX Ports | 24 |
1000BASE-X SFP/mini-GBIC Slots | 2 |
Switch Architecture | Store-and-Forward |
Switch Fabric | 52Gbps/non-blocking |
Switch Throughput@64 bytes | 38.7Mpps@64 bytes |
MAC Address Table | 8K entries |
Maximum Frame Size | 9216 bytes |
Flow Control | IEEE 802.3x pause frame for full-duplex; back pressure for half-duplex |
LED | System: |
Power (Green) | |
10/100/1000BASE-T RJ45 Interfaces: | |
10/100Mbps LNK/ACT (Red) | |
1000Mbps LNK/ACT (Green) | |
PoE-in-Use (Orange) | |
1000BASE-X SFP Interfaces: | |
LNK/ACT (Green) | |
LCD Monitor (W x D) | 40.6 x 30.5 mm, 2-inch |
Buttom | Menu, Enter, Back, Up and Down |
Dimensions (W x D x H) | 233 x 440 x 44 mm (1U height) |
Enclosure | Metal |
Weight | 3.5kg |
Power Requirements | 100~240V AC, 50/60Hz, 5A max. |
Power Consumption/Dissipation | Max. 330watts/1132 BTU |
Thermal Fan | 3 |
ESD Protection | Contact discharge of ±6KV DC |
Air discharge of ±8KV DC | |
Surge Protection | ±6KV |
Power over Ethernet | |
PoE Standard | IEEE 802.3af Power over Ethernet/PSE |
IEEE 802.3at Power over Ethernet Plus/PSE | |
PoE Power Supply Type | End-span |
PoE Power Output | Per port 53V-54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) |
Per port 53V-54V DC, 600mA. max. 30 watts (IEEE 802.3at) | |
Power Pin Assignment | 1/2 (+), 3/6 (-) |
PoE Power Budget | 300 watts |
Max. Number of Class 2 PDs | 24 |
Max. Number of Class 3 PDs | 23 |
Max. Number of Class 4 PDs | 11 |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 10BASE-T |
IEEE 802.3u 100BASE-TX | |
IEEE 802.3ab Gigabit 1000BASE-T | |
IEEE 802.3z Gigabit SX/LX | |
IEEE 802.3x Flow control and back pressure | |
IEEE 802.3af Power over Ethernet | |
IEEE 802.3at Power over Ethernet Plus | |
IEEE 802.3az Energy Efficient Ethernet (EEE) | |
Environment | |
Operating | Temperature: -10 ~ 60 degrees C |
Relative Humidity: 10 ~ 90% (non-condensing) | |
Storage | Temperature: -10 ~ 70 degrees C |
Relative Humidity: 5 ~ 90% (non-condensing) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : 24 Port
PoE Güç Bütçesi : 200-400 Watt
