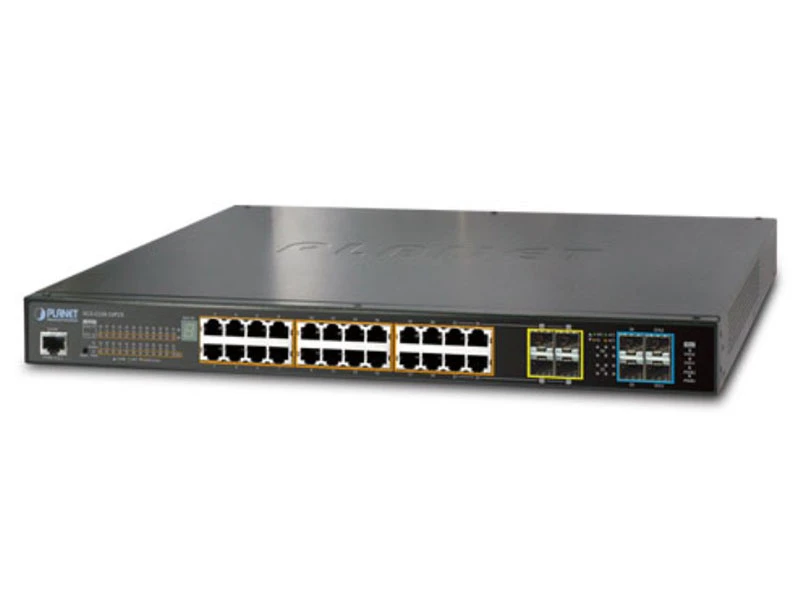

Planet SGS 5220 24P2X 10/100/1000 PoE Switch
Özellikler
Physical Port
- 24-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at / 802.3af Power over Ethernet Injector function
- 4 100/1000BASE-X mini-GBIC/SFP slots, shared with Port-21 to Port-24 compatible with 100BASE-FX SFP
- 2 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
- 2 10GBASE-SR/LR SFP+ stackable slots
- RJ45 console interface for basic management and setup
Stacking Features
- Physical stacking up to 16 units, 384 Gigabit ports, 32 10 Gigabit ports
- Single IP address stack management
- Stacking architecture supports Chain and Ring mode
- Plug and Play connectivity
- Mirror across stack
- Link Aggregation groups spanning multiple switches in a stack
- Physical MAC address learning with MAC table synchronization across stack
- Complies with IEEE 802.3at High Power over Ethernet end-span PSE
- Complies with IEEE 802.3af Power over Ethernet end-span PSE
- Up to 24 ports of IEEE 802.3af / 802.3at devices powered
- Supports PoE Power up to 30.8 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
PoE Management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE Port Power feeding priority
- Per PoE port power limitation
- PD classification detection
- PD alive-check
- PoE schedule
- PD power recycling schedule
Layer 2 Features
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Storm Control support
- Broadcast / Multicast / Unknown unicast
- Supports VLAN
- IEEE 802.1Q tagged VLAN
- Up to 255 VLANs groups, out of 4094 VLAN IDs
- Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
- Private VLAN Edge (PVE)
- Protocol-based VLAN
- MAC-based VLAN
- Voice VLAN
- Supports Spanning Tree Protocol
- STP, IEEE 802.1D Spanning Tree Protocol
- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
- BPDU Guard
- Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Maximum 14 trunk groups, up to 8 ports per trunk group
- Up to 40Gbps bandwidth (full duplex mode)
- Provides port mirror (many-to-1)
- Port mirroring to monitor the incoming or outgoing traffic on a particular port
- Loop protection to avoid broadcast loops
Layer 3 IP Routing Features
- Supports maximum 128 static routes and route summarization
Quality of Service
- Ingress Shaper and Egress Rate Limit per port bandwidth control
- 8 priority queues on all switch ports
- Traffic classification
- IEEE 802.1p CoS
- TOS / DSCP / IP Precedence of IPv4/IPv6 packets
- IP TCP/UDP port number
- Typical network application
- Strict priority and Weighted Round Robin (WRR) CoS policies
- Supports QoS and In/Out bandwidth control on each port
- Traffic-policing policies on the switch port
- DSCP remarking
Multicast
- Supports IGMP Snooping v1, v2 and v3
- Supports MLD Snooping v1 and v2
- Querier mode support
- IGMP Snooping port filtering
- MLD Snooping port filtering
- Multicast VLAN Registration (MVR) support
Security
- Authentication
- IEEE 802.1x Port-based / MAC-based network access authentication
- Built-in RADIUS client to co-operate with the RADIUS servers
- TACACS+ login users access authentication
- RADIUS / TACACS+ users access authentication
- Access Control List
- IP-based Access Control List (ACL)
- MAC-based Access Control List
- Source MAC / IP address binding
- DHCP Snooping to filter un-trusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP Source Guard prevents IP spoofing attacks
- Auto DoS rule to defend DoS attack
- IP address access management to prevent unauthorized intruder
Management
- IPv4 and IPv6 dual stack management
- Switch Management Interfaces
- Console / Telnet Command Line Interface
- Web switch management
- SNMP v1, v2c, and v3 switch management
- SSH / SSL secure access
- IPv6 IP Address / NTP / DNS management
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- System Maintenance
- Firmware upload/download via HTTP / TFTP
- Reset button for system reboot or reset to factory default
- Dual Images
- DHCP Relay
- DHCP Option82
- User Privilege levels control
- NTP (Network Time Protocol)
- Link Layer Discovery Protocol (LLDP) and LLDP-MED
- Network Diagnostic
- ICMPv6 / ICMPv4 Remote Ping
- Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
- SMTP / Syslog remote alarm
- Four RMON groups (history, statistics, alarms and events)
- SNMP trap for interface Link Up and Link Down notification
- System Log
- PLANET Smart Discovery Utility for deploy management
Teknik Özellikler
Hardware Specifications | |
Copper Ports | 24 10/ 100/1000BASE-T RJ-45 Auto-MDI/MDI-X ports |
10/100/1000Mbps / SFP Combo Interfaces | 4 10/100/1000Mbps TP and SFP shared combo interfaces, SFP (Mini-GBIC) supports 100/1000Mbps Dual mode DDM, shared with Port-21 to Port-24 |
10Gbps Fiber Uplink Ports | 2 1/10GBASE-SR/LR SFP+ slots |
10Gbps Fiber Stackable Ports | 2 10GBASE-SR/LR SFP+ slots |
Console | 1 x RJ45 serial port (115200, 8, N, 1) |
Switch Architecture | Store-and-Forward |
Switch Fabric | 128Gbps / non-blocking |
Throughput | 95.2Mpps@64Bytes |
Address Table | 32K entries, automatic source address learning and ageing |
Shared Data Buffer | 4 megabits |
Flow Control | IEEE 802.3x pause frame for full-duplex |
Back pressure for half-duplex | |
Jumbo Frame | 9K bytes |
Reset Button | < 5 sec: System reboot |
> 5 sec: Factory default | |
LED | System: |
PWR (Green), Master (Green), | |
PWR1 (Green), PWR2 (Green), FAN1 (Green), FAN2 (Green) | |
10/100/1000T RJ45 Interfaces (Port 1 to Port 24): | |
10/100/1000Mbps LNK/ACT (Green) | |
PoE In-Use (Orange) | |
100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24): | |
1000Mbps (Green), LNK/ACT (Orange) | |
1/10Gbps SFP+ Interfaces (Port 25 to Port 26): | |
10Gbps LNK/ACT (Green), 1Gbps LNK/ACT (Orange) | |
10G Stackable Interfaces (Port 27 to Port 28): | |
Stack (Green), LNK/ACT (Orange) | |
Power Requirements | 100~240V AC, 50/60Hz |
Power Consumption (Full Loading) | 502 watts / 1712.8 BTU Max. |
ESD Protection | 6KV DC |
Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height |
Weight | 4887g |
Stacking Functions | |
Stacking Ports | 2 SFP+ slots |
Stacking Numbers | 16 |
Stacking Bandwidth | 40Gbps full duplex |
Stack ID Display | 7-Segment LED display (1~9, A~F, 0) |
Stack Topology | Ring / Chain / Back-to-Back |
Power over Ethernet | |
PoE Standard | IEEE 802.3af / 802.3at PoE / PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per Port 56V DC, Max. 30.8 watts |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | 440 watts (max.) @ 25 degrees C |
380 watts (max.) @ 50 degrees C | |
PoE Ability | PD @ 7 watts 24 units |
PD @ 15.4 watts 24 units | |
PD @ 30.8 watts 14 units | |
Layer2 Management Function | |
Basic Management Interfaces | Console, Telnet, Web Browser, SNMP v1, v2c |
Secure Management Interfaces | SSH, SSL, SNMP v3 |
Port Configuration | Port disable / enable |
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection | |
Flow Control disable / enable | |
Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
Port Mirroring | TX / RX / Both |
Many-to-1 monitor | |
VLAN | 802.1Q tagged based VLAN, up to 255 VLAN groups |
Q-in-Q tunneling | |
Private VLAN Edge (PVE) | |
MAC-based VLAN | |
Protocol-based VLAN | |
Voice VLAN | |
MVR (Multicast VLAN Registration) | |
Up to 255 VLAN groups, out of 4094 VLAN IDs | |
Link Aggregation | IEEE 802.3ad LACP / Static Trunk |
Supports 14 groups of 8-Port trunk | |
QoS | Traffic classification based, Strict priority and WRR |
8-level priority for switching | |
- Port Number | |
- 802.1p priority | |
- 802.1Q VLAN tag | |
- DSCP/TOS field in IP Packet | |
IGMP Snooping | IGMP (v1/v2/v3) Snooping, up to 255 multicast Groups |
IGMP Querier mode support | |
MLD Snooping | MLD (v1/v2) Snooping, up to 255 multicast Groups |
MLD Querier mode support | |
Access Control List | IP-based ACL / MAC-based ACL |
Up to 256 entries | |
Bandwidth Control | Per port bandwidth control |
Ingress: 500Kb~80Mbps | |
Egress: 64Kb~80Mbps | |
SNMP MIBs | RFC 1213 MIB-II |
RFC 2863 IF-MIB | |
RFC 1493 Bridge MIB | |
RFC 1643 Ethernet MIB | |
RFC 2863 Interface MIB | |
RFC 2665 Ether-Like MIB | |
RFC 2737 Entity MIB | |
RFC 2819 RMON MIB (Group 1, 2, 3 and 9) | |
RFC 2618 RADIUS Client MIB | |
RFC 3411 SNMP-Frameworks-MIB | |
IEEE 802.1X PAE | |
LLDP | |
MAU-MIB | |
Power over Ethernet MIB | |
Layer3 Function | |
IP Interfaces | Max. 128 VLAN interfaces |
Routing Table | Max. 32 routing entries |
Routing Protocols | IPv4 hardware static routing |
IPv6 hardware static routing | |
Standards Conformance | |
Regulation Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 10BASE-T |
IEEE 802.3u 100BASE-TX/100BASE-FX | |
IEEE 802.3z 1000BASE-SX/LX | |
IEEE 802.3ab 1000BASE-T | |
IEEE 802.3x flow control and back pressure | |
IEEE 802.3ad port trunk with LACP | |
IEEE 802.1D Spanning Tree Protocol | |
IEEE 802.1w Rapid Spanning Tree Protocol | |
IEEE 802.1s Multiple Spanning Tree Protocol | |
IEEE 802.1p Class of Service | |
IEEE 802.1Q VLAN tagging | |
IEEE 802.1x Port Authentication Network Control | |
IEEE 802.1ab LLDP | |
IEEE 802.3af Power over Ethernet | |
IEEE 802.3at Power over Ethernet Plus | |
RFC 768 UDP | |
RFC 793 TFTP | |
RFC 791 IP | |
RFC 792 ICMP | |
RFC 2068 HTTP | |
RFC 1112 IGMP version 1 | |
RFC 2236 IGMP version 2 | |
RFC 3376 IGMP version 3 | |
RFC 2710 MLD version 1 | |
FRC 3810 MLD version 2 | |
Environments | |
Operating | Temperature: 0 ~ 50 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) | |
Storage | Temperature: -10 ~ 70 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |
