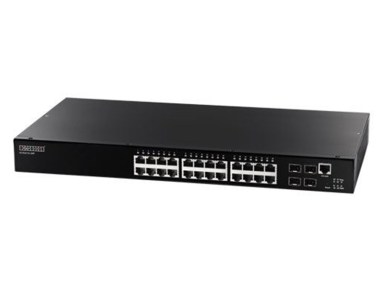

Planet GS 4210 24UP4C 10/100/1000 PoE Switch
Özellikler
Physical Port
- 28 10/100/1000BASE-T Gigabit RJ45 copper ports with 24-port IEEE 802.3at/af/Ultra PoE injector
- 4 100/1000BASE-X mini-GBIC/SFP slots, shared with port-25 to port-28 compatible with 100BASE-FX SFP
- RJ45 console interface for switch basic management and setup
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span/mid-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 24 ports of IEEE 802.3af/IEEE 802.3at/Ultra PoE devices powered
- Supports PoE power up to 60 watts for each ultra PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
- PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD classification detection
- PD alive check
- PoE schedule
Layer 2 Features
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High performance Store and Forward architecture, broadcast storm control, and runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
- Supports VLAN
- IEEE 802.1Q tagged VLAN
- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Protocol VLAN
- Voice VLAN
- Private VLAN
- Management VLAN
- GVRP
- Supports Spanning Tree Protocol
- STP (Spanning Tree Protocol)
- RSTP (Rapid Spanning Tree Protocol)
- MSTP (Multiple Spanning Tree Protocol)
- STP BPDU Guard, BPDU filtering and BPDU forwarding
- Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Provides port mirror (many-to-1)
- Loop protection to avoid broadcast loops
Quality of Service
- Ingress and egress rate limit per port bandwidth control
- Storm control support
- Broadcast/Unknown unicast/Unknown multicast
- Traffic classification
- IEEE 802.1p CoS
- TOS/DSCP/IP precedence of IPv4/IPv6 packets
- Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
- Supports IPv4 IGMP snooping v2 and v3
- Supports IPv6 MLD snooping v1, v2
- IGMP querier mode support
- IGMP snooping port filtering
- MLD snooping port filtering
Security
- Authentication
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers
- RADIUS/TACACS+ login user access authentication
- Access control list
- IPv4/IPv6 IP-based ACL
- MAC-based ACL
- MAC security
- Static MAC
- MAC filtering
- Port security for source MAC address entries filtering
- DHCP snooping to filter distrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP source guard prevents IP spoofing attacks
- DoS attack prevention
- SSH/SSL
Management
- IPv4 and IPv6 dual stack management
- Switch management interface
- Web switch management
- Telnet command line interface
- SNMP v1, v2c and v3
- SSH and SSL secure access
- User privilege levels control
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- System maintenance
- Firmware upload/download via HTTP/TFTP
- Configuration upload/download through web interface
- Dual images
- Hardware reset button for system reboot or reset to factory default
- SNTP Network Time Protocol
- Cable diagnostics
- Link Layer Discovery Protocol (LLDP) and LLDP-MED
- SNMP trap for interface link up and link down notification
- Event message logging to remote Syslog server
- Four RMON groups (history, statistics, alarms and events)
- PLANET smart discovery utility
- Smart fan with speed control
Teknik Özellikler
Hardware Specifications | |
Copper Ports | 28 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port |
SFP/mini-GBIC Slots | 4 x 100/1000BASE-X SFP interface shared with port-25 to port-28 |
Supports 100/1000Mbps dual mode and DDM | |
PoE Injector Port | 24 ports with 802.3at/af/Ultra PoE injector function with port-1 to port-24 |
Switch Architecture | Store-and-Forward |
Switch Fabric | 56Gbps/non-blocking |
Switch Throughput@64Bytes | 41.67Mpps |
Address Table | 8K entries |
Shared Data Buffer | 4.1 megabits |
Flow Control | IEEE 802.3x pause frame for full-duplex |
Back pressure for half-duplex | |
Jumbo Frame | 10K bytes |
Reset Button | < 5 sec: System reboot |
> 5 sec: Factory default | |
LED | PWR, SYS, LNK/ACT, PoE-in-use, 1000, FAN1, FAN2, PWR FAN, PoE PWR |
Power Requirements | 100~240V AC, 50/60Hz, auto-sensing |
Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height |
ESD Protection | Contact Discharge 4KV DC |
Air Discharge 8KV DC | |
Enclosure | Metal |
Weight | 5062g |
Power Consumption/Dissipation | 740 watts (max.)/2525 BTU |
Fan | 4 x smart fan |
Power over Ethernet | |
PoE Standard | IEEE 802.3af/802.3at/Ultra PoE PSE |
PoE Power Supply Type | End-span/Mid-span/UPoE |
PoE Power Output | Per port 52V DC, 60 watts (max.) |
Power Pin Assignment | End-span: 1/2(-), 3/6(+) |
Mid-span: 4/5(+), 7/8(-) | |
UPoE: 1/2(-), 3/6(+),4/5(+), 7/8(-) | |
PoE Power Budget | 600 watts (max.) |
PoE Ability PD @ 15 watts | 24 units |
PoE Ability PD @ 30 watts | 20 units |
PoE Ability PD @ 60 watts | 10 units |
Layer 2 Functions | |
Port Mirroring | TX/RX/both |
Many-to-1 monitor | |
VLAN | 802.1Q tagged-based VLAN |
Up to 256 VLAN groups, out of 4094 VLAN IDs | |
802.1ad Q-in-Q tunneling | |
Voice VLAN | |
Protocol VLAN | |
Private VLAN (Protected port) | |
GVRP | |
Link Aggregation | IEEE 802.3ad LACP and static trunk |
Supports 4 groups of 4-port trunk | |
Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) |
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) | |
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) | |
IGMP Snooping | IGMP (v2/v3) snooping |
IGMP querier | |
Up to 256 multicast groups | |
MLD Snooping | MLD (v1/v2) snooping, up to 256 multicast groups |
Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL |
QoS | 8 mapping IDs to 8 level priority queues |
- Port number | |
- 802.1p priority | |
- 802.1Q VLAN tag | |
- DSCP field in IP packet | |
Traffic classification based, strict priority and WRR | |
Security | IEEE 802.1X port-based authentication |
Built-in RADIUS client to cooperate with RADIUS server | |
RADIUS/TACACS+ user access authentication | |
IP-MAC port binding | |
MAC filtering | |
Static MAC address | |
DHCP Snooping and DHCP Option82 | |
STP BPDU guard, BPDU filtering and BPDU forwarding | |
DoS attack prevention | |
ARP inspection | |
IP source guard | |
Management Functions | |
Basic Management Interfaces | Web browser; Telnet; SNMP v1, v2c |
Firmware upgrade by HTTP/TFTP Protocol through Ethernet network | |
Remote/Local syslog | |
System log | |
LLDP Protocol | |
SNTP | |
Secure Management Interfaces | SSH, SSL, SNMP v3 |
SNMP MIBs | RFC 1213 MIB-II |
RFC 1215 Generic Traps | |
RFC 1493 Bridge MIB | |
RFC 2674 Bridge MIB Extensions | |
RFC 2737 Entity MIB (v2) | |
RFC 2819 RMON (1, 2, 3, 9) | |
RFC 2863 Interface Group MIB | |
RFC 3635 Ethernet-like MIB | |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE, LVD |
Standards Compliance | IEEE 802.3 10BASE-T |
IEEE 802.3u 100BASE-TX/100BASE-FX | |
IEEE 802.3z Gigabit SX/LX | |
IEEE 802.3ab Gigabit 1000T | |
IEEE 802.3x flow control and back pressure | |
IEEE 802.3ad port trunk with LACP | |
IEEE 802.1D Spanning Tree Protocol | |
IEEE 802.1w Rapid Spanning Tree Protocol | |
IEEE 802.1s Multiple Spanning Tree Protocol | |
IEEE 802.1p Class of Service | |
IEEE 802.1Q VLAN tagging | |
IEEE 802.1x Port Authentication Network Control | |
IEEE 802.1ab LLDP | |
IEEE 802.3af Power over Ethernet | |
IEEE 802.3at Power over Ethernet Plus | |
RFC 768 UDP | |
RFC 793 TFTP | |
RFC 791 IP | |
RFC 792 ICMP | |
RFC 2068 HTTP | |
RFC 1112 IGMP v1 | |
RFC 2236 IGMP v2 | |
RFC 3376 IGMP v3 | |
RFC 2710 MLD v1 | |
RFC 3810 MLD v2 | |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) | |
Storage | Temperature: -20 ~ 70 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |
Planet GS 4210 24UP4C 10/100/1000 PoE Switch Pdf Dosyası1.88 MB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
PoE Port Sayısı :
28 Port
![Tooltip](/media/system/images/tooltip.png)
PoE Güç Bütçesi : 400-800 Watt
