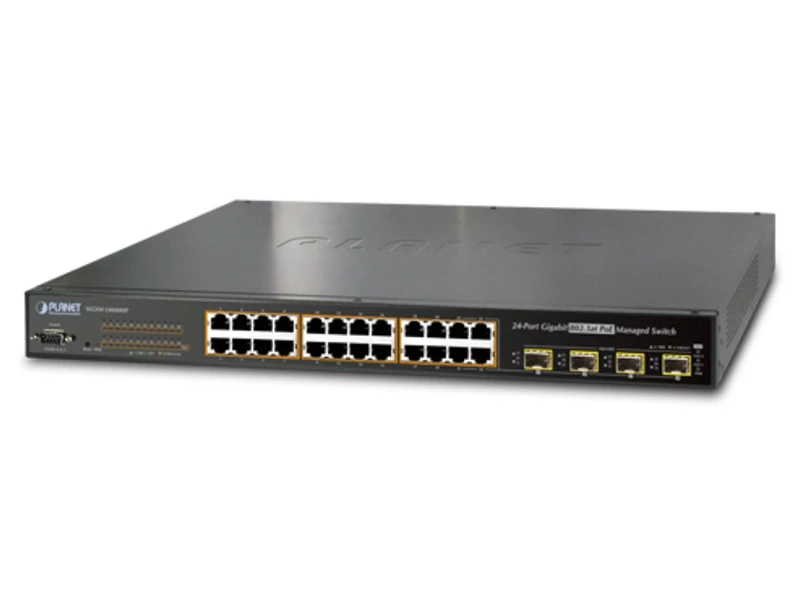

Planet WGSW 24040HP4 10/100/1000 PoE Switch
Teknik Özellikler
| Hardware Specifications |
| Copper Ports |
| 24 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports |
| 10/100/1000Mbps / SFP Combo Interfaces |
| 4 10/100/1000Mbps TP and SFP shared combo interfaces, SFP(Mini-GBIC) supports 100/1000Mbps dual mode DDM, shared with Port-21 to Port-24 |
| Console |
| 1 x RS-232 DB9 serial port (115200, 8, N, 1) |
| Switch Architecture |
| Store-and-Forward |
| Switch Fabric |
| 48Gbps/non-blocking |
| Throughput |
| 35.7Mpps @ 64Bytes |
| Address Table |
| 8K entries, automatic source address learning and ageing |
| Share Data Buffer |
| 4 megabits |
| Flow Control |
| IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex |
| Jumbo Frame |
| 9K bytes |
| Reset Button |
| < 5 sec: system reboot |
| > 5 sec: factory default |
| LED |
| System: |
| Power (Green) |
| FFAN1 (Green), FAN2 (Green), FAN3 (Green), PWR (Green) |
| PoE Ethernet Interfaces (Port 1 to Port 24): |
| LNK/ACT (10/100/1000Mbps, Green), PoE In-Use (Orange) |
| 100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24): |
| 1000 (LNK/ACT, Green), 100 (LNK/ACT, Orange) |
| Power Requirements |
| 100~240V AC, 50/60Hz, 6A |
| Power Consumption (Full Load) |
| 482 watts |
| ESD Protection |
| 6KV DC |
| Power over Ethernet |
| PoE Standard |
| IEEE 802.3at/802.3af Power over Ethernet/PSE |
| PoE Power Supply Type |
| End-Span |
| PoE Power Output |
| Per Port 56V DC, 590mA |
| Max. 30.8 watts |
| Power Pin Assignment |
| 1/2(+), 3/6(-) |
| PoE Power Budget |
| 440 watts max. |
| PoE Ability |
| PD @ 7 watts |
| 24 units |
| PD @ 15.4 watts |
| 24 units |
| PD @ 30.8 watts |
| 14 units |
| Layer2 Management Function |
| Basic Management Interfaces |
| Console, Telnet, Web Browser, SNMP v1, v2c |
| Secure Management Interfaces |
| SSH, SSL, SNMP v3 |
| Port Configuration |
| Port disable/enable |
| Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection |
| Flow Control disable/enable |
| Port Status |
| Display each port’s speed duplex mode, link status, Flow control status, Auto negotiation status, trunk status |
| Port Mirroring |
| TX/RX/Both |
| Many-to-1 monitor |
| VLAN |
| 802.1Q Tagged based VLAN, up to 255 VLAN groups |
| Q-in-Q tunneling |
| Private VLAN Edge (PVE) |
| MAC-based VLAN |
| Protocol-based VLAN |
| Voice VLAN |
| MVR (Multicast VLAN Registration) |
| Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation |
| IEEE 802.3ad LACP/Static Trunk |
| Supports 10 groups of 16-Port trunk |
| QoS |
| Traffic classification based, Strict priority and WRR |
| 8-Level priority for switching |
| Port Number |
| 802.1p priority |
| 802.1Q VLAN tag |
| DSCP/TOS field in IP Packet |
| IGMP Snooping |
| IGMP (v1/v2/v3) Snooping, up to 255 multicast Groups |
| IGMP Querier mode support |
| MLD Snooping |
| MLD (v1/v2) Snooping, up to 255 multicast Groups |
| MLD Querier mode support |
| Access Control List |
| IP-based ACL / MAC-based ACL |
| Up to 256 entries |
| Bandwidth Control |
| Per port bandwidth control |
| Ingress: 500Kb~80Mbps |
| Egress: 64Kb~80Mbps |
| SNMP MIBs |
| RFC-1213 MIB-II |
| IF-MIB |
| RFC-1493 Bridge MIB |
| RFC-1643 Ethernet MIB |
| RFC-2863 Interface MIB |
| RFC-2665 Ether-Like MIB |
| RFC-2819 RMON MIB (Group 1, 2, 3 and 9) |
| RFC-2737 Entity MIB |
| RFC-2618 RADIUS Client MIB |
| RFC-3411 SNMP-Frameworks-MIB |
| IEEE 802.1X PAE |
| LLDP |
| MAU-MIB |
| PoE-Ethernet MIB |
| Standards Conformance |
| Regulation Compliance |
| FCC Part 15 Class A, CE |
| Standards Compliance |
| IEEE 802.3 10Base-T |
| IEEE 802.3u 100Base-TX/100Base-FX |
| IEEE 802.3z 1000Base-SX/LX |
| IEEE 802.3ab 1000Base-T |
| IEEE 802.3x Flow Control and Back pressure |
| IEEE 802.3ad Port trunk with LACP |
| IEEE 802.1D Spanning tree protocol |
| IEEE 802.1w Rapid spanning tree protocol |
| IEEE 802.1s Multiple spanning tree protocol |
| IEEE 802.1p Class of service |
| IEEE 802.1Q VLAN Tagging |
| IEEE 802.1x Port Authentication Network Control |
| IEEE 802.1ab LLDP |
| IEEE 802.3af Power over Ethernet |
| IEEE 802.3at Power over Ethernet PLUS |
| RFC 768 UDP |
| RFC 793 TFTP |
| RFC 791 IP |
| RFC 792 ICMP |
| RFC 2068 HTTP |
| RFC 1112 IGMP version 1 |
| RFC 2236 IGMP version 2 |
| RFC 3376 IGMP version 3 |
| RFC 2710 MLD version 1 |
| FRC 3810 MLD version 2 |
Planet WGSW 24040HP4 10/100/1000 PoE Switch Pdf Dosyası1.52 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
24 Port
24 Port Çalışma Mesafesi : 100Mt.
PoE Güç Bütçesi : 400-800 Watt
