Açıklama

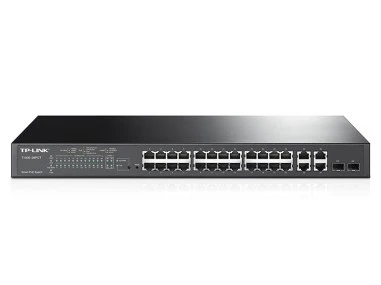

TP-LINK T2600G 28MPS 10/100/1000 PoE Plus Switch
Özellikler
PoE+ Features
- Standard: 802.3at/af compliant
- PoE+ Ports: 24 Ports
- Power Supply: 384W
L2 and L2+ Features
- Static routing
- L2PT
- Link Aggregation Control Protocol (LACP)
- STP/RSTP/MSTP
- IGMP Snooping
- Loopback Detection
Quality of Service
- Support IEEE 802.1P
- 8 priority queues
- DSCP QoS
- Rate limit feature
Security Strategies
- AAA
- Access Control List (IPv4/IPv6)
- IP-MAC-Port Binding
- ARP Inspection
- IP Source Guard
- 802.1x and RADIUS/TACACS+ Authentication
- Support DoS defend
IPv6 Support
- Dual IPv4/IPv6 Stack
- MLD Snooping
- PMTU Discovery
- IPv6 Neighbor Discovery
- IPv6 ACL
- DHCPv6 Snooping
- IPv6 Interface
OAM
- 802.3ah Ethernet Link OAM
- Device Link Detect Protocol(DLDP)
Management
- Web-based GUI
- Command Line Interface
- Telnet
- Dual Image
- DHCP Server
- DHCP Relay
- sFlow
- LLDP, LLDP-MED
- SNMP v1/v2c/v3
- RMON (1,2,3,9 group)
Teknik Özellikler
| Standards and Protocols |
| IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface |
| 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| 4 Gigabit SFP Slots |
| Network Media |
| 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| 1000BASE-X: MMF, SMF |
| Fan Quantity |
| 3 |
| Power Supply |
| 100~240VAC, 50/60Hz |
| Power Consumption |
| Maximum (PoE on): 470.4W (220V/50Hz) |
| Maximum (PoE off): 46.5W (220V/50Hz) |
| PoE+ Ports(RJ45) |
| Standard: 802.3at/af compliant |
| PoE+ Ports: 48 Ports |
| Power Supply: 384W |
| Dimensions ( W x D x H ) |
| 17.3 x 13 x 1.73 in. (440 x 330 x 44 mm) |
| PERFORMANCE |
| Bandwidth/Backplane |
| 104Gbps |
| Packet Forwarding Rate |
| 77.4Mpps |
| MAC Address Table |
| 16K |
| Jumbo Frame |
| 9KB |
| Environment |
| Operating Temperature |
| ℃~40℃ (32℉~104℉); |
| Storage Temperature |
| -40℃~70℃ (-40℉~158℉) |
| Operating Humidity |
| 10%~90% non-condensing |
| Storage Humidity |
| 5%~90% non-condensing |
Yazılım Özellikleri
| Quality of Service |
| Support 802.1p CoS/DSCP priority |
| Support 8 priority queues |
| Queue scheduling: SP, WRR, SP+WRR |
| Port/Flow- based Rate Limiting |
| IPv6 QoS* |
| Voice VLAN |
| L2 and L2+ Features |
| Static Routing |
| DHCP Relay* |
| IGMP Snooping V1/V2/V3 |
| 802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group) |
| Spanning Tree STP/RSTP/MSTP |
| BPDU Filtering/Guard |
| TC/Root Protect |
| Loopback detection |
| 802.3x Flow Control |
| LLDP, LLDP-MED* |
| VLAN |
| Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) |
| MAC/Protocol-based VLAN |
| Access Control List |
| L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports |
| IPv6 ACL* |
| Security |
| AAA* |
| Port Security |
| DHCP Snooping |
| IP-MAC-Port Binding |
| ARP Inspection |
| 802.1x and Radius Authentication |
| SSH v1/v2 |
| SSL v3/TLSv1 |
| Broadcast/Multicast/Unknown-unicast Storm Control |
| Dos Defend |
| IPv6 |
| Dual IPv4/IPv6 stack |
| Multicast Listener Discovery (MLD) Snooping |
| IPv6 neighbor discovery (ND) |
| Path maximum transmission unit (MTU) discovery |
| Internet Control Message Protocol (ICMP) version 6 |
| TCPv6/UDPv6 |
| IPv6 Applications |
| DHCPv6 Client |
| Ping6 |
| Tracert6 |
| Telnet (v6) |
| IPv6 SNMP |
| IPv6 SSH |
| IPv6 SSL |
| Http/Https |
| IPv6 TFTP |
| Management |
| Web-based GUI and CLI management |
| SNMP v1/v2c/v3,compatible with public MIBs and |
| TP-LINK private MIBs |
| RMON (1, 2, 3, 9 groups) |
| CPU Monitoring |
| Port Mirroring |
| Firmware Upgrade: TFTP & Web |
| System Diagnose: VCT |
| SYSLOG & Public MIBS |
| Dual Image |
TP-LINK T2600G 28MPS 10/100/1000 PoE Plus Switch Pdf Dosyası336.8 KB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2 Plus
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 400-800 Watt
Çalışma Mesafesi : 100Mt.
