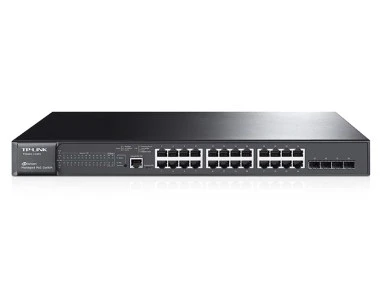

TP-LINK T1500 28PCT TL SL2428P 10/100 PoE Plus Switch
Özellikler
PoE+ Features
- Standard: 802.3at/af compliant
- PoE+ Ports: 24 Ports
- PoE Power Budget: 180W
Layer 2 Features
- Link Aggregation Control Protocol (LACP)
- 802.1Q Tag VLAN
- STP/RSTP/MSTP
- IGMP Snooping
- LLDP, LLDP-MED
Quality of Service
- IEEE 802.1P
- DSCP QoS
- Rate limit feature
Security Strategies
- Access Control List(L2~L4)
- Port Security
- Storm Control
- SSL and SSH encryptions
Management
- Web-based GUI
- Command Line Interface(Telnet)
- SNMP v1/v2c/v3
- RMON (1,2,3,9 group)
Teknik Özellikler
| Standards and Protocols |
| IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, |
| IEEE 802.1p |
| Interface |
| 24 10/100Mbps RJ45 Ports |
| (Auto Negotiation/Auto MDI/MDIX) |
| 4 10/100/1000Mbps RJ45 Ports |
| (Auto Negotiation/Auto MDI/MDIX) |
| 2 Combo Gigabit SFP Slots |
| Network Media |
| 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable |
| (maximum 100m) |
| 1000BASE-X: MMF, SMF |
| Fan Quantity |
| 2 |
| Power Supply |
| 100~240VAC, 50/60Hz |
| Power Consumption |
| Maximum(PoE on): 222.15W (220V/50Hz) |
| PoE+ Ports(RJ45) |
| Standard: 802.3at/af compliant |
| PoE+ Ports: 24 Ports |
| Power Supply: 180W |
| Dimensions ( W x D x H ) |
| 17.3*8.7*1.7 in.(440*220*44 mm) |
| PERFORMANCE |
| Bandwidth/Backplane |
| 12.8Gbps |
| Packet Forwarding Rate |
| 9.5Mpps |
| MAC Address Table |
| 8k |
| Jumbo Frame |
| 9216 Bytes |
| Environment |
| Operating Temperature |
| ℃~40℃ (32℉~104℉); |
| Storage Temperature |
| -40℃~70℃ (-40℉~158℉) |
| Operating Humidity |
| 10%~90% non-condensing |
| Storage Humidity |
| 5%~90% non-condensing |
Yazılım Özellikleri
| Quality of Service |
| Support 802.1p CoS/DSCP priority |
| Support 4 priority queues |
| Queue scheduling: SP, WRR, SP+WRR |
| Port/Flow-based Rate Limiting |
| Voice VLAN |
| L2 Features |
| IGMP Snooping V1/V2/V3 |
| 802.3ad LACP (Up to 6 aggregation groups, |
| containing 4 ports per group) |
| Spanning Tree STP/RSTP/MSTP |
| LLDP, LLDP-MED |
| BPDU Filtering/Guard |
| TC/Root Protect |
| Loop back detection |
| 802.3x Flow Control |
| VLAN |
| Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
| Access Control List |
| L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports |
| Security |
| SSH v1/v2 |
| SSL v2/v3/TLSv1 |
| Port Security |
| Broadcast/Multicast/Unknown-unicast Storm Control |
| Management |
| Web-based GUI and CLI management |
| SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs |
| RMON (1, 2, 3, 9 groups) |
| CPU Monitoring |
| Port Mirroring |
| Time Setting: SNTP |
| Firmware Upgrade: TFTP & Web |
| System Diagnose: VCT |
| SYSLOG & Public MIBS |
TP-LINK T1500 28PCT TL SL2428P 10/100 PoE Plus Switch Pdf Dosyası1.31 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 130-200 Watt
