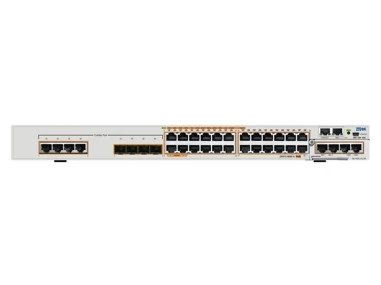

ZTE RS 5250 28PC 10/100/1000 PoE Switch
Teknik Özellikler
Dimensions (H*W*D, mm) |
43.6*340*220 |
Fixed Ports |
8 GE RJ45 (POE/POE+)+2 GE RJ45+2 GE SFP |
Weight |
3.2kg |
ManagaDimensions (H*W*D, mm) |
43.6*442*440 |
Fixed Ports |
24 GE RJ45 (POE/POE+)+2 GE Combo+2 GE SFP |
Weight |
<6.5kg |
Management Port |
1 GE MNG, 1RJ45 Console, 1 Mini USB Console |
AC Power Supply |
Rated voltages: 100V~240V, 50Hz~60Hz |
Maximum voltages: 90V~286V, 45Hz~66Hz |
Maximum Power Consumption |
<760.9(POE:720W) |
Power Redundancy |
RPS Redundancy |
Heat Dissipation Pattern |
Fan cooling, support multilevel speed regulation |
Heat Dissipation |
931 btu |
Working Temperature |
Long term working temperature: -5 oC ~ +50 oC |
Short term working temperature: -10 oC ~ +55 oC |
Humidity |
20%~95% |
Working Altitude |
3000 meters |
MTBF/MTTR |
>100,000 hours / < 30 minutes |
Switching Capacity |
56G bps |
Packet Forwarding Rate |
42M pps |
Management Port |
1 RJ45 Console |
AC Power Supply |
Rated voltages: 100V~240V, 50Hz~60Hz |
Maximum voltages: 90V~286V, 45Hz~66Hz |
Maximum Power Consumption |
272.6W (POE:240W) |
Heat Dissipation Pattern |
Fan cooling, support multilevel speed regulation |
Heat Dissipation |
368 BTU/h |
Working Temperature |
Long term working temperature: -5 oC ~ +50 oC |
Short term working temperature: -10 oC ~ +55 oC |
Humidity |
20%~95% |
Working Altitude |
3000 meters |
MTBF/MTTR |
100,000 hours / 30 minutes |
Switching Capacity |
24G bps |
Packet Forwarding Rate |
18M pps |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
PoE Port Sayısı :
24 Port
![Tooltip](/media/system/images/tooltip.png)
PoE Güç Bütçesi : 400-800 Watt
