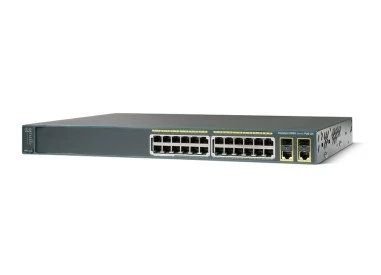

Cisco SF200 24FP PoE Switch

Teknik Özellikler

umbo Frame Support Yes
Minimum Storage Temperature -4 F
Depth 10.1 inches
MTBF 307,098 hour(s)
Height 1.73 inches
Maximum Operating Temperature 104 F
MAC Address Table Size 8000 entries
Localization Chinese (simplified), English, German, French, Italian, Spanish
Width 17.3 inches
Enclosure Type Rack Mountable
Maxiumum Storage Temperature 158 F
Mounting Kit Included
Ports 24 x 10/100 + 2 x combo Gigabit SFP
Device Type Switch - 24 ports
Remote Management Protocol SNMP, RMON, HTTP, TFTP
Humidity Operating Range 10-90% (non-condensing)
Weight 8.7 lbs
Minimum Operating Temperature 32 F
Interfaces 24 x 10BASE-T/100BASE-TX - RJ-45 | 24 x 10BASE-T/100BASE-TX - RJ-45 - PoE | 2 x 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 | 2 x SFP (mini-GBIC)
Humidity Storage Range 10-90% (non-condensing)
Flash Memory 16 MB
Voltage Required AC 120/230 V ( 50/60 Hz )
Performance Switching capacity 6.55 Mpps; Forwarding performance (64-byte packet size) 8.8 Gbps
Power Device Power supply - internal
Power Over Ethernet (PoE) PoE
Status Indicators Link activity, port transmission speed, system, PoE
Ram 128 MB
Authentication Method RADIUS
Encryption Algorithm MD5

pdfCisco SF200 24FP PoE Switch Pdf Dosyası970.96 KB

Teknik Kısa

PoE : PoE
Port Hızı : 100 Mbps
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : Tooltip 24 Port
Montaj Tipi : Rack Mount
