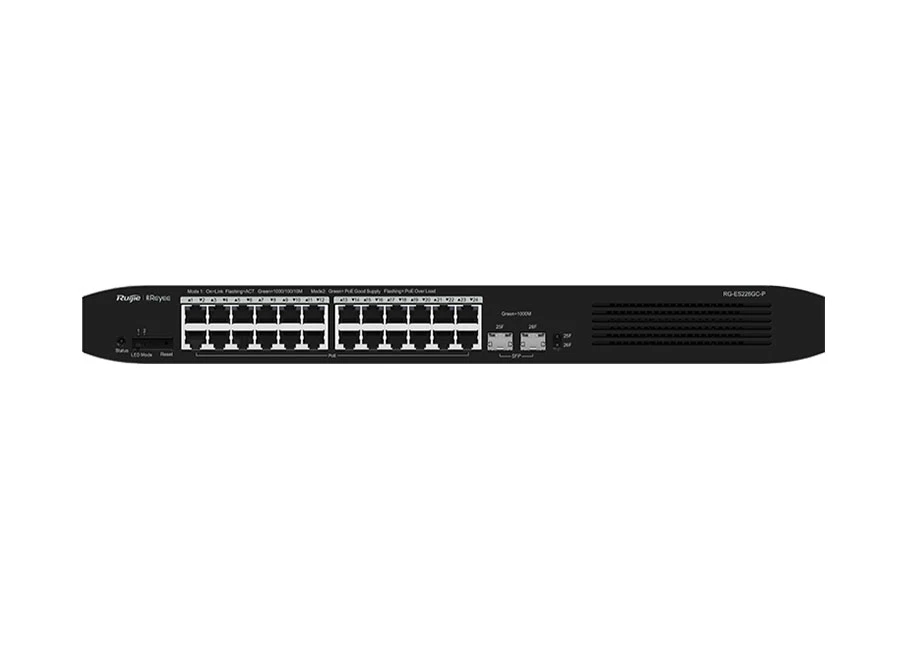

Ruijie RG-ES226GC-P PoE Switch

RG-ES200 Serisi IP Güvenliği için Buluttan Yönetilebilir (Cloud Managed) PoE Switch
24 x 10/100/1000Base-T port (PoE/PoE+)
2 x SFP Base-X port

PoE : PoE

Port Hızı : 1 GBit

Yönetilebilirlik : Yönetilebilir Layer 2

Aktarım Port Sayısı : 2

Aktarım Türü : Gbit Fiber

PoE Port Sayısı : Tooltip

24 Port

PoE Güç Bütçesi : 200-400 Watt

Model Specifications	RG-ES226GC-P
Hardware specifications
Ports	24 10/100/1000 Base-T ports (802.3 af/at compliant), 2 SFP Base-X ports
Maximum output power per PoE port	30W
Maximum PoE output power per switch	370W
Switching capacity	52Gbps
Packet forwarding rate	38.688Mpps
Surge protection	Common mode: 4KV
Electrostatic discharge	Air discharge: 6KV
Electrostatic discharge	Contact discharge: 4KV
Power consumption	≤400W
Power supply	Built-in power supply
Dimensions (W x D x H)	440x289x43.6mm
MTBF	>200K
Operating environment
Operating temperature	0 to 40°C
Storage temperature	-40~70ºC
Operating humidity	10% to 90% RH
Storage humidity	5% to 95% RH
Software features
MAC capacity	8K
Static MAC address	16
VLAN	Support 802.1Q VLAN
Port management	Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off
Security	Support broadcast storm suppression, port speed limit, port isolation
L2 features	Support port mirroring, loop protection, cable detection
Management	Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app
