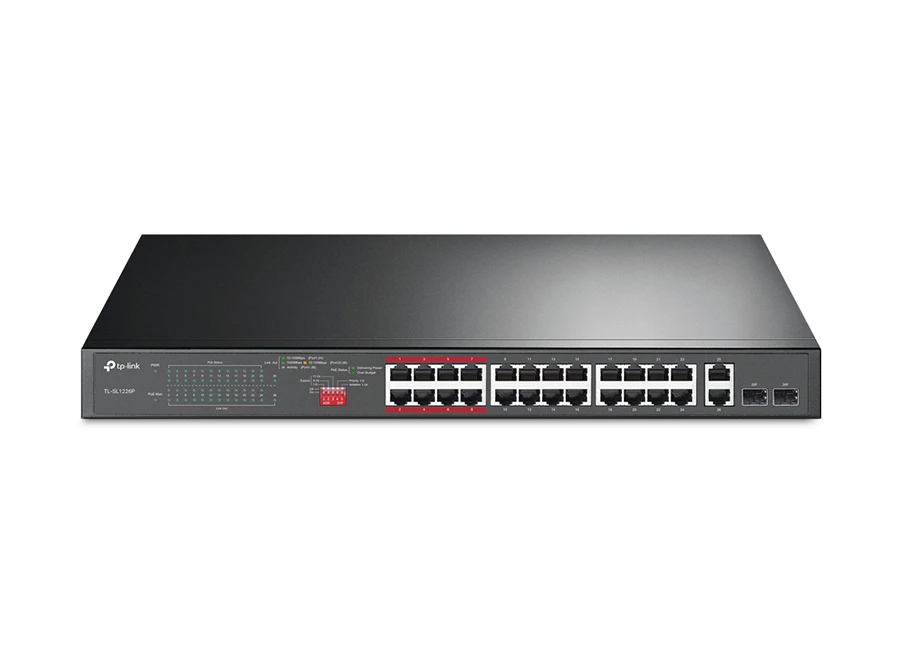

TP-Link TL-SL1226P PoE+ Switch
Özellikler
- 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots
- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
- Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system
- Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Plug and play, with no configuration and installation needed
Teknik Özellikler
Donanım Özellikleri | |
Arabirim | 24× PoE+ 10/100 Mbps RJ45 Ports |
2× 10/100/1000 Mbps RJ45 Ports | |
2× Combo Gigabit SFP Slots | |
Ağ Medyası | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
EIA/TIA-568 100Ω STP (maximum 100m) | |
100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
EIA/TIA-568 100Ω STP (maximum 100m) | |
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
EIA/TIA-568 100Ω STP (maximum 100m) | |
1000BASE-X MMF, SMF | |
Fan Sayısı | 2 Fans |
Fiziksel Güvenlik Kilidi | Yes |
Güç Kaynağı | 100-240 VAC, 50/60 Hz |
Backup Bandwidth | 8.8 Gbps |
Paket Yönlendirme Hızı | 6.5472 Mpps |
PoE+ Portları (RJ45) | Standard: 802.3at/802.3af compliant |
PoE Ports: Port 1 – Port 24 | |
PoE Power Budget: 250 W | |
MAC Adres Tablosu | 8 K |
Jumbo Frame | 10 KB |
Switching Kapasitesi | 8.8 Gbps |
Boyutlar ( W X D X H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Maks. Güç Tüketimi | 18.32 W (220/50 Hz. no PD connected) |
294 W (220/50 Hz. with 250 W PD connected) | |
Max Heat Dissipation | 62.47 BTU/h (no PD connected) |
1002.54 BTU/h (with 250 W PD connected) | |
Yazılım Özellikleri | |
Gelişmiş Özellikler | Compatible With IEEE 802.3at/af Compliant PDs |
Extend Mode (Up to 250m PoE power supply and data transmission) | |
Priority Mode | |
Isolation Mode | |
PD Detection | |
Intelligent Power Supply | |
Mac Address Auto-Learning and Auto-Aging | |
IEEE802.3x Flow Control | |
İletim Metodu | Store-And-Forward |
Diğerleri | |
Sertifika | CE, FCC, RoHS |
Paket İçeriği | TL-SL1226P |
Power Cable | |
Installation Guide | |
Two mounting brackets and the fittings | |
Ortam | Operating Temperature: 0–50 °C (32–122 °F) |
Storage Temperature: -40–70 °C (-40–158 °F) | |
Operating Humidity: 10–90% non-condensing | |
Storage Humidity: 5–90% non-condensing |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
PoE Port Sayısı : 24 Port
PoE Güç Bütçesi : 200-400 Watt
