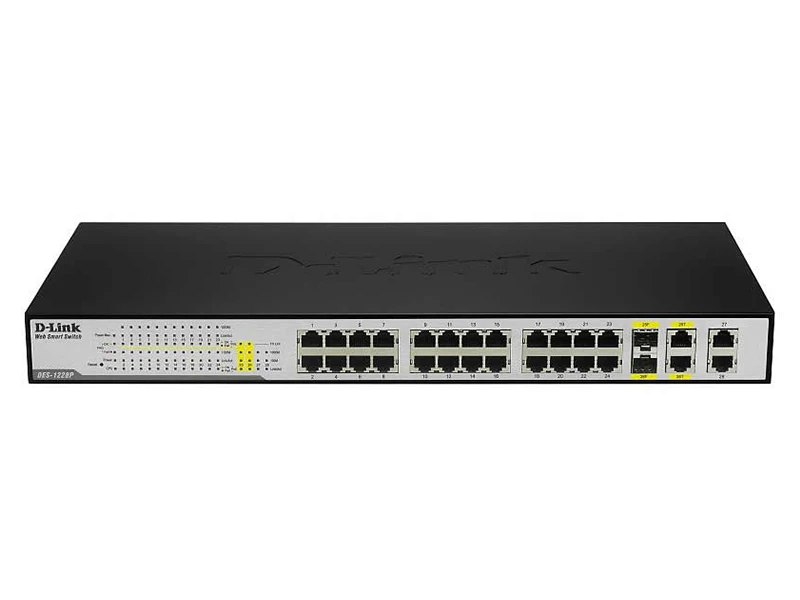

D-Link DES 1228P 10/100 PoE Switch

Teknik Özellikler

Format & Standards
Format : Rackmount
Standards : IEEE 802.3 compliance
       IEEE 802.3u compliance
       IEEE 802.3x Flow Control support for Full-Duplex mode, Back Pressure when Half-Duplex mode
       IEEE 802.3ab compliance
       IEEE 802.3z compliance
       IEEE 802.3u compliance
       IEEE 802.3x Flow Control support for Full-Duplex mode, Back Pressure when Half-Duplex mode
Network Management Type : Smart
Ports & Interface
Uplink Ports : Yes
Uplink Interface : SFP
Primary Ports : 24 Port 10/100Mbps + 4 1000BASE-T + 2 Combo Ports & PoE
Primary Port Speed : 10/100Mbps + 1000Mbps
Data Transmission
MAC Address Table: 8K
Switching Method : Store and Forward
VLAN Support : Support 256 static VLAN groups, able to configure VID from 1-4094
Jumbo Frames : No
Uplink Speed : SFP
Details
PoE : Yes
Stackable : No
SNMP : Yes
QoS : Yes
LACP : Yes
Layer : 2
Port Mirroring : Yes
Module Support : Yes
Power : 100-240 VAC, 50/60Hz, internal universal power supply
Features
24 Ports IEEE 802.3af PoE
Supports Industry Standards: 802.1p, 802.1Q, 802.1D
    CPU DoS Protection to Ensure Uptime
    Supports 802.1x User Authentication for Security
    Easy Management through GUI , Smart Console Utility, and SNMP v1
Dimensions & Weight
Dimensions : 17.0" x 4.3" x 1.7"
Weight : 7.2 lbs.
Environmental
Temperature : ºC to 40ºC (32ºF to 104ºF)
Humidity : 10%-90% RH



pdfD-Link DES 1228P 10/100 PoE Switch Pdf Dosyası282.51 KB

Teknik Kısa

PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı : Tooltip 24 Port
PoE Güç Bütçesi : 200-400 Watt
