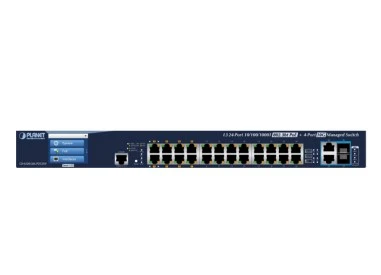

Planet GS-6322-24P4X PoE Switch

Özellikler

Physical Port
  • 24 10/100/1000BASE-T Gigabit RJ45 copper ports with 24-port IEEE 802.3bt PoE++ injector function
  • 2 10GBASE-T RJ45 interfaces with auto MDI/MDI-X function
  • 2 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP and 2.5G SFP transceiver
  • RJ45 console interface for switch basic management and setup
  • Complies with IEEE 802.3bt Power over Ethernet Plus Plus
  • Backward compatible with IEEE 802.3at Power over Ethernet Plus
  • Up to 24 ports of IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt PoE devices powered
  • 24 PoE ports with built-in 802.3bt PoE++ Type-4 90W injector function
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters
  • PoE management features
  • Total PoE power budget control
    -Per port PoE function enable/disable
    -PoE admin-mode control
    -PoE port power feeding priority
    -Per PoE port power limit
    -PD classification detection
    -PoE extend mode control to support power feeding up to a distance of up to 200 meters
  • Intelligent PoE features
  • Temperature threshold control
  • PoE usage threshold control
  • PD alive check
  • PoE schedule
Layer 3 Features
  • IP dynamic routing protocol supports OSPFv2
  • IPv4/IPv6 hardware static routing
  • Routing interface provides per VLAN routing mode
  • IP interfaces (Max. 128 VLAN interfaces)
  • Routing table (Max. 128 routing entries)
Layer 2 Features
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
    -Storm Control support
  • Broadcast/multicast/unknown unicast
    -Supports VLAN
  • Supports VLAN
    -IEEE 802.1Q tagged VLAN
    -Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
    -Private VLAN Edge (PVE)
    -Protocol-based VLAN
    -MAC-based VLAN
    -Voice VLAN
    -GVRP (GARP VLAN Registration Protocol)
    -Up to 4K VLANs groups, out of 4094 VLAN IDs
  • Supports Spanning Tree Protocol
    -IEEE 802.1D Spanning Tree Protocol (STP)
    -IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    -IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    -BPDU Guard
  • Supports Link Aggregation
    -802.3ad Link Aggregation Control Protocol (LACP)
    -Cisco ether-channel (static trunk)
    -Maximum 4 trunk groups with 4 ports for each trunk group
    -Up to 80Gbps bandwidth (full duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Link Layer Discovery Protocol (LLDP)
Quality of Service
  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
    -IEEE 802.1p CoS
    -TOS/DSCP/IP precedence of IPv4/IPv6 packets
    -IP TCP/UDP port number
    -Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing on the switch port
  • DSCP remarking
Multicast
  • Supports IPv4 IGMP snooping v1, v2 and v3
  • Supports IPv6 MLD snooping v1 and v2
  • Querier mode support
  • IPv4 IGMP snooping port filtering
  • IPv6 MLD snooping port filtering
  • Multicast VLAN Registration (MVR) support
Security
  • Authentication
    -IEEE 802.1x port-based/MAC-based network access authentication
    -Built-in RADIUS client to cooperate with the RADIUS servers
    -TACACS+ login users access authentication
    RADIUS/TACACS+ users access authentication
    -Guest VLAN assigns clients to a restricted VLAN with limited services
  • Access Control List
    -IP-based Access Control List (ACL)
    -MAC-based Access Control List
  • Source MAC/IP address binding
  • DHCP Snooping to filter untrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder
Management
  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
    -Console/Telnet Command Line Interface
    -Web switch management
    -SNMP v1, v2c, and v3 switch management
    -SSHv2, TLSv1.2, SSL and SNMP v3 secure access
  • SNMP Management
    -Four RMON groups (history, statistics, alarms and events)
    -SNMP trap for interface Link Up and Link Down notification
  • IPv6 IP address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    -Firmware upload/download via HTTP/TFTP
    -Reset button for system reboot or reset to factory default
    -Dual images
  • DHCP Relay and DHCP Option 82
  • DHCP Server
  • User Privilege levels control
  • NTP (Network Time Protocol)
  • Network Diagnostic
    -SFP-DDM (Digital Diagnostic Monitor)
    -ICMPv6/ICMPv4 remote ping
    -Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
    -SMTP/Syslog remote alarm
  • System Log
  • PLANET Smart Discovery Utility for deployment management
  • Smart fan with speed control
Power Management
  • Dual redundant modular power supply slots
  • Supports configurable power operation modes
    -Redundant Power Supply (RPS, 1+1): Provides 1+1 power redundancy when two PSUs are installed.
    -Extended Power Supply (EPS, 2+0): Provides more power budget by combining two PSUs to share the maximum power budget
  • Active-active redundant power failure protection
  • Backup of catastrophic power failure on one supply
  • Fault tolerance and resilience

pdfPlanet GS-6322-24P4X PoE Switch Pdf Dosyası5.38 MB

pdfPlanet GS-6322-24P4X PoE Switch Kullanım Kılavuzu (ing) Pdf Dosyası12.43 MB

Teknik Kısa

PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : Tooltip 24 Port
PoE Güç Bütçesi : 800 Watt >
