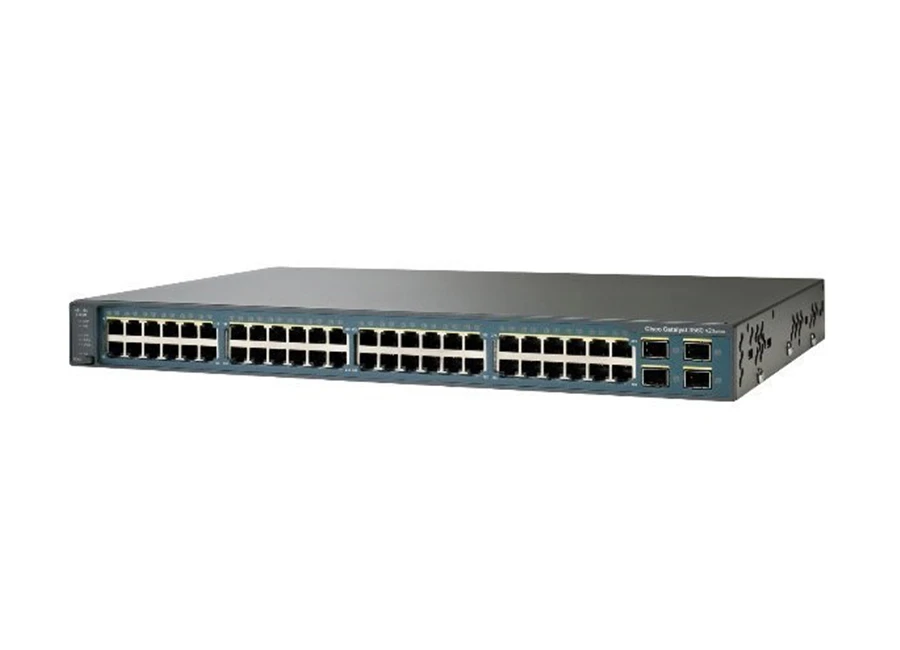

Cisco Catalyst 3560V2 48PS E PoE Switch
Özellikler
Teknik Özellikler
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3560V2-48PS-E |
| Product Type | Switch - 48 ports - L3 - Managed |
| Form Factor | Rack mountable - 1U |
| Switch Ports | 48 x 10/100 + 4 x SFP |
| Power Over Ethernet (PoE) | Yes |
| MAC Address Table Size | 12K entries |
| Routing Protocol | OSPF, IGRP, BGP-4, RIP-1, RIP-2, EIGRP, DVMRP, PIM-SM, static IP routing, PIM-DM |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c |
| Authentication Method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Layer 3 switching, DHCP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, MAC address filtering, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Flash Memory | 32 MB Flash |
| Connectivity Slots | |
| Interfaces | 24 x 10Base-T/100Base-TX - RJ-45 - PoE |
| 24 x 10Base-T/100Base-TX - RJ-45 | |
| 1 x console - RJ-45 - management | |
| 4 x SFP (mini-GBIC) | |
| Power Supply | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.3 cm |
| Depth | 29.5 cm |
| Height | 4.4 cm |
| Weight | 5 kg |
| MTBF | 206,041 hour(s) |
| Compliant Standards | CE, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A |
| System Software | |
| Software Included | Cisco IOS IP Services |
Cisco Catalyst 3560V2 48PS E PoE Switch Pdf Dosyası229.23 KB
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
24 Port
24 Port
