Açıklama

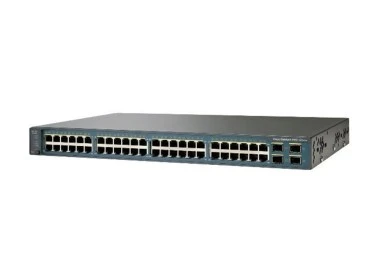

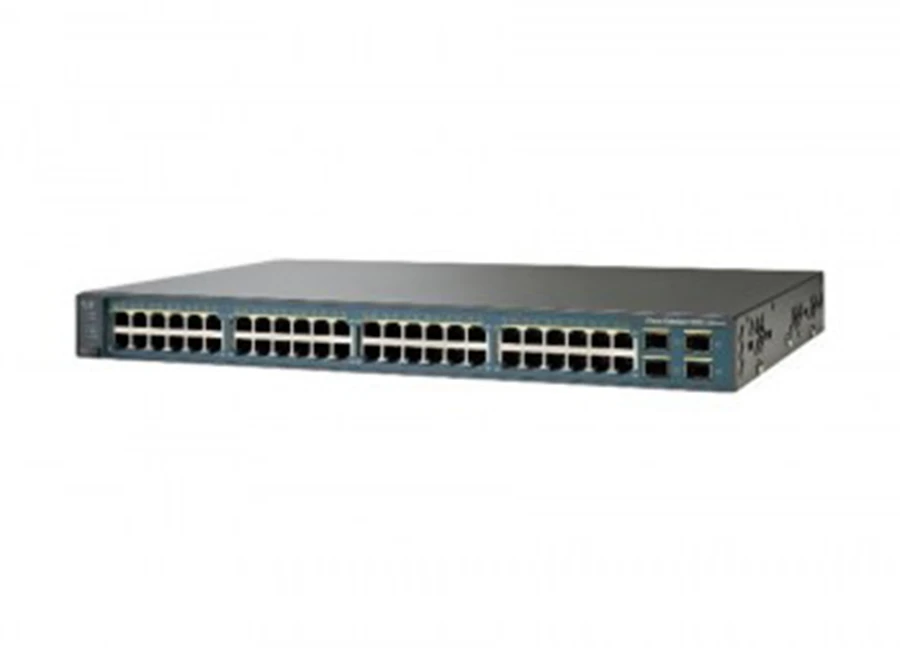

Cisco Catalyst 3560V2 48PS S PoE Switch

Özellikler

48 Ethernet 10/100 ports and 4 SFP-based Gigabit Ethernet ports
370W available for PoE, allowing full 15.4W for up to 24 ports
1RU fixed-configuration, multilayer switch
IPv6
IP Base software feature set

Teknik Özellikler

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	WS-C3560V2-48PS-S
Product Type	Switch - 48 ports - L3 - Managed
Form Factor	Rack mountable - 1U
Switch Ports	48 x 10/100 + 4 x SFP
Power Over Ethernet (PoE)	Yes
MAC Address Table Size	12K entries
Routing Protocol	RIP-1, RIP-2, static IP routing
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c
Authentication Method	Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features	Layer 3 switching, auto-sensing per device, DHCP support, auto-negotiation, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), MAC address filtering, IPv6 support, Spanning Tree Protocol (STP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Flash Memory	32 MB Flash
LED Status Lights Indicators	Port status, link activity, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply)
Connectivity Slots
Interfaces	24 x 10Base-T/100Base-TX - RJ-45 - PoE
	24 x 10Base-T/100Base-TX - RJ-45
	1 x console - RJ-45 - management
	4 x SFP (mini-GBIC)
Power Supply
Power Device	Power supply - internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Features	Redundant Power System (RPS) connector
Dimensions / Weight / Miscellaneous
Width	44.3 cm
Depth	29.5 cm
Height	4.4 cm
Weight	5 kg
MTBF	206,041 hour(s)
Compliant Standards	CE, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A
System Software
Software Included	Cisco IOS IP Base
