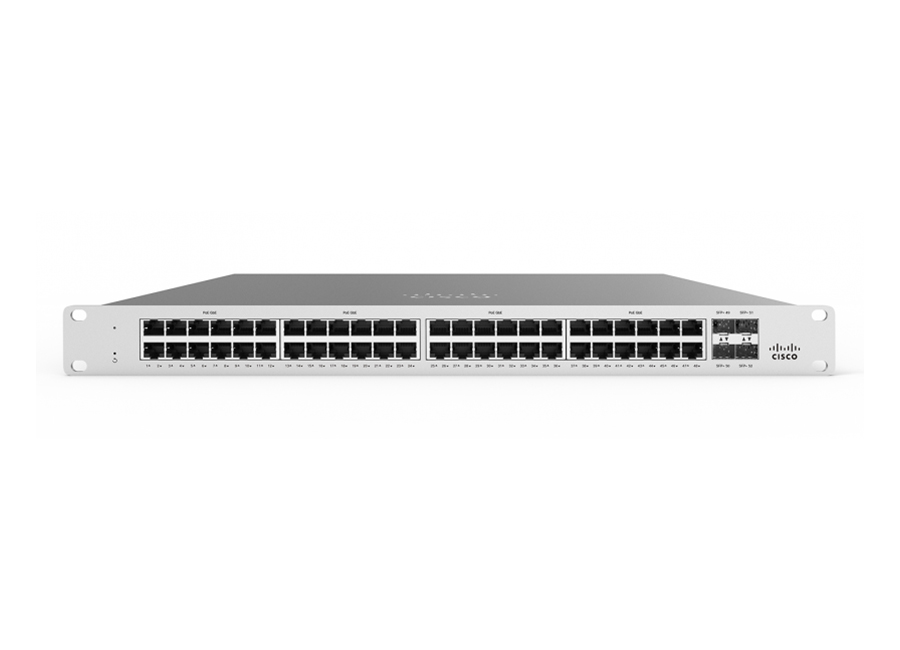

Cisco Meraki MS120 48FP HW PoE Switch

Teknik Özellikler

MS120-48FP-HW
Interfaces -48 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
-4 x 1GbE SFP uplink
-RJ45 Management port
Switching capacity 104 Gbps
Forwarding rate 77.38 mpps
Available PoE+ Power 740 W
Idle / Full Load Power 37 / 908 W
Power Supply Configuration Fixed internal
What’s included 1 x Rack mounting screw kit
Dimensions 1.72” x 17.32” x 13.38” (4.40 x 44 x 34cm)
Weight 12.70 lb (5.70 kg)
Management -Managed via the Web with the Meraki cloud management platform
-Integrated with Meraki Wireless and complete portfolio of IT products and solutions
-Zero-touch remote provisioning (no staging needed)
-Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
-Detailed historical per-port and per-client usage statistics
-DHCP, client, and hostname fingerprinting
-SNMPd and SYSLOG support for integration with other network management solutions
-Automatic firmware upgrades with scheduling control
Layer 3 -DHCP Relay
Remote Diagnostics -Email, SMS and Mobile push notification alerts
-Cable testing and link failure detection with alerting
-Live remote packet capture
-Dynamic and interactive network discovery and topology
-Combined event and configuration change logs with instant search
Power -Power input: 100 - 240 VAC, 47-63 Hz
  -Power consumption: 8 - 908W
Mounting -1U Rack-mountable with included rack mount hardware
-2-post front mounting options available
-Desktop-mountable with included feet
Ethernet Switching Capabilities -802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
-802.1Q VLAN and trunking support for up to 4,094 VLANs
-802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
-Broadcast storm control
-802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
-802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
-Port mirroring
-IGMP snooping for multicast filtering
-MAC forwarding entries: 32K
Environment -Operating temperature: 0°C to 45°C
-Humidity: 5 to 95% non-condensing
-MS120-48 feature fanless operation
Regulatory -CSA-US (US, Canada)
-FCC (USA)
-IC (Canada)
-CE (Europe)
-RCM (Australia/New Zealand)
-RoHS
Security -Integrated two-factor authentication for Dashboard management
-Role-based access control (RBAC) with granular device and configuration control
-Corporate wide password policy enforcement
-IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing
-Multi-Domain/Multi-Host/Multi Authentication
-Port security: Sticky MAC, MAC whitelisting
-DHCP snooping, detection and blocking, Dynamic ARP Inspection
-STP Enhancements: BPDU guard, Root guard, Loop guard
-IPv4 and IPv6 ACLs
MTBF Ratings 660,538

pdfCisco Meraki MS120 48FP HW PoE Switch Pdf Dosyası238.91 KB

Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı : Tooltip 48 Port
PoE Güç Bütçesi : 400-800 Watt
