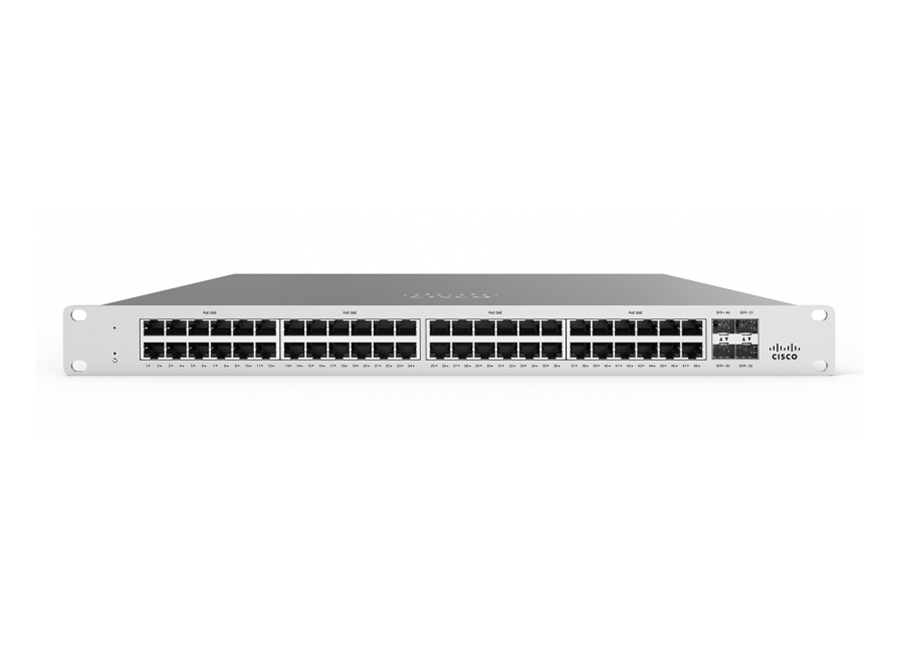

Cisco Meraki MS120 48LP HW PoE Switch
Teknik Özellikler
MS120-48LP-HW | |
Interfaces | - 48 x 10/100/1000BASE-T Ethernet RJ45 with auto |
negotiation and crossover detection (auto-MDIX | |
crossover) | |
- 4 x 1GbE SFP uplink | |
- RJ45 Management port | |
Switching capacity | 104 Gbps |
Forwarding rate | 77.38 mpps |
Available PoE+ Power | 370 W |
Idle / Full Load Power | 37 / 477 W |
Power Supply Configuration | Fixed internal |
What’s included | 1 x Rack mounting screw kit |
Dimensions | 1.72” x 17.32” x 13.38” (4.40 x 44 x 34cm) |
Weight | 12.70 lb (5.70 kg) |
Management | - Managed via the Web with the Meraki cloud management platform |
- Integrated with Meraki Wireless and complete portfolio of IT products and solutions | |
- Zero-touch remote provisioning (no staging needed) | |
- Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration | |
- Detailed historical per-port and per-client usage statistics | |
- DHCP, client, and hostname fingerprinting | |
- SNMPd and SYSLOG support for integration with other network management solutions | |
- Automatic firmware upgrades with scheduling control | |
Layer 3 | - DHCP Relay |
Remote Diagnostics | - Email, SMS and Mobile push notification alerts |
- Cable testing and link failure detection with alerting | |
- Live remote packet capture | |
- Dynamic and interactive network discovery and topology | |
- Combined event and configuration change logs with instant search | |
Power | - Power input: 100 - 240 VAC, 47-63 Hz |
- Power consumption: 8 - 908W | |
Mounting | - 1U Rack-mountable with included rack mount hardware |
- 2-post front mounting options available | |
- Desktop-mountable with included feet | |
Ethernet Switching Capabilities | - 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) |
- 802.1Q VLAN and trunking support for up to 4,094 VLANs | |
- 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) | |
- Broadcast storm control | |
- 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) | |
- 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches | |
- Port mirroring | |
- IGMP snooping for multicast filtering | |
- MAC forwarding entries: 32K | |
Environment | - Operating temperature: 0°C to 45°C |
- Humidity: 5 to 95% non-condensing | |
- MS120-48 feature fanless operation | |
Regulatory | - CSA-US (US, Canada) |
- FCC (USA) | |
- IC (Canada) | |
- CE (Europe) | |
- RCM (Australia/New Zealand) | |
- RoHS | |
Security | - Integrated two-factor authentication for Dashboard management |
- Role-based access control (RBAC) with granular device and configuration control | |
- Corporate wide password policy enforcement | |
- IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing | |
- Multi-Domain/Multi-Host/Multi Authentication | |
- Port security: Sticky MAC, MAC whitelisting | |
- DHCP snooping, detection and blocking, Dynamic ARP Inspection | |
- STP Enhancements: BPDU guard, Root guard, Loop guard | |
- IPv4 and IPv6 ACLs | |
MTBF Ratings | 660,538 |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : 48 Port
PoE Güç Bütçesi : 200-400 Watt
