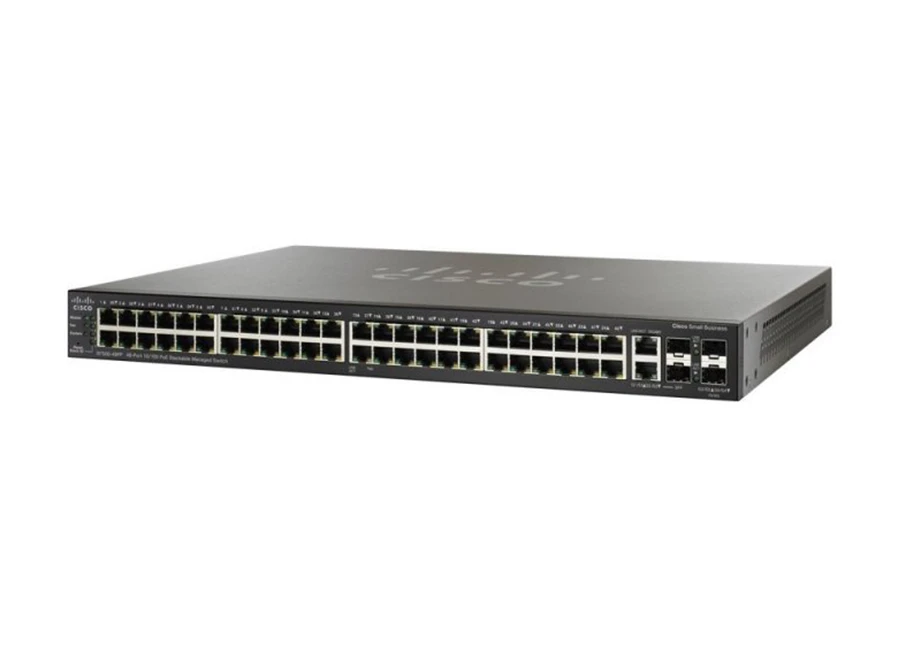

Cisco SF300 48PP PoE Switch

Teknik Özellikler

Cisco Small Business SF300-48PP - switch - 48 ports - Managed - desktop, rack-mountable
Device Type	Switch - 48 ports - L3 - Managed
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Fast Ethernet
Ports	48 x 10/100 (PoE+) + 2 x combo Gigabit SFP + 2 x 10/100/1000
Power Over Ethernet (PoE)	PoE+
Performance	Switching capacity: 17.6 Gbps ¦ Forwarding performance (64-byte packet size): 13.1 Mpps
Features	Layer 3 switching, Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast S
General
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Device Type	Switch - 48 ports - L3 - Managed
Enclosure Type	Desktop, rack-mountable 1U
Encryption Algorithm	SSL
Flash Memory	16 MB
Mac Address Table Size	16K entries
Performance	Switching capacity: 17.6 Gbps ¦ Forwarding performance (64-byte packet size): 13.1 Mpps
Ram	128 MB
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2, CLI
Status Indicators	Link activity, port transmission speed, system
Dimensions & Weight
Depth	35 cm
Height	4.45 cm
Weight	5.44 kg
Width	44 cm
Environmental Parameters
Humidity Range Operating	10 - 90% (non-condensing)
Humidity Range Storage	10 - 90% (non-condensing)
Max Operating Temperature	50 °C
Max Storage Temperature	70 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-20 °C
Expansion / Connectivity
Interfaces	48 x 100Base-TX - RJ-45 - PoE+ ¦ 1 x console - DB-9 - management ¦ 4 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-X - SFP
Manufacturer Warranty
Service Support	Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Miscellaneous
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Mtbf	113,692 hour(s)
Rack Mounting Kit	Included
SF300-48PP-K9-EU Others
Localisation	Chinese (simplified), English, German, French, Italian, Spanish, Japanese / Europe
Cables Included	1 x serial cable
Mounting Kit	Included
Power Voltage Required	AC 120/230 V ( 50/60 Hz )
Power Device	Internal power supply
Power Features	Layer 3 switching, Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast S
Bundled Services	Limited lifetime warranty
Manufacturer Warranty	Limited lifetime warranty
Dimensions	x
Power	PoE+
Routing Protocol	Static IPv4 routing
Jumbo Frame Support	9216 bytes
Capacity	ACL rules: up to 512
Poe Budget	375 W
