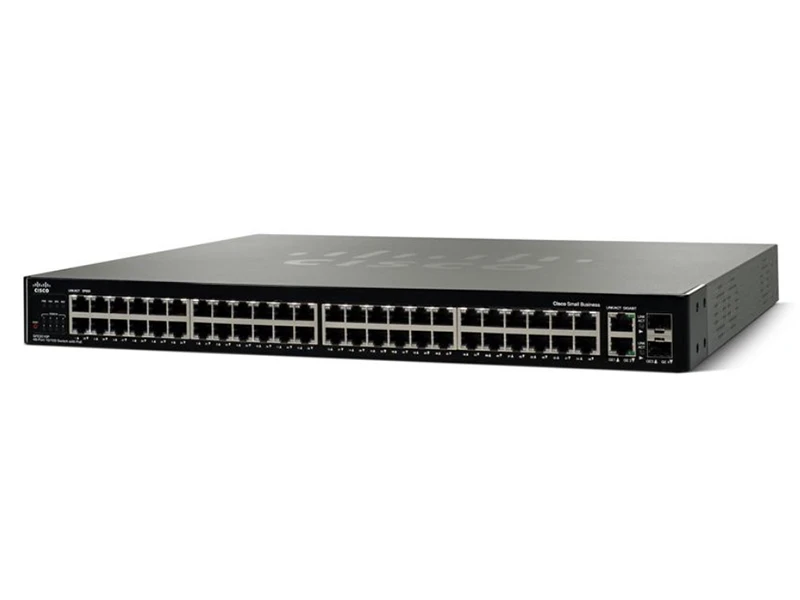

Cisco SFE2010P G5 SFE2010P 10/100 Ethernet PoE Switch

Name: Cisco SFE2010P G5 SFE2010P 10/100 Ethernet PoE Switch
Brand: Cisco

Teknik Özellikler

Specifications

Ports

48 RJ-45 connectors for 10BASE-T/100BASE-TX; two 10BASE-T/100BASETX/1000BASE-T ports; 2 mini-GBIC ports; console port; auto medium dependent interface (MDI) and MDI crossover (MDI-X); autonegotiate/manual setting; RPS port for connecting to redundant power supply unit

Buttons

Reset button

Cabling type

Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5e or better for 1000BASE-T

LEDs

PWR, Fan, Link/Act, PoE, Speed, RPS, Master, Stack ID 1 through 8

Power over Ethernet

IEEE 802.3af PoE delivered over any of the forty-eight 10/100 ports

Maximum power of 15.4W to a Fast Ethernet port – 360W total available to all Fast Ethernet ports with regular AC power, 280W total available with a redundant power supply unitPerformance

Switching capacity

17.6 Gbps nonblocking

Forwarding capacity

13 mpps (64-byte packets)

Stacking

Stack operation

Up to 192 ports in a stack

Hot insertion and removal

Ring and chain stacking options

Master and backup master for resilient stack control

Auto-numbering or manual configuration of units in stack

Layer 2

MAC table size

8000

Number of VLANs

256 active VLANs (4096 range)

VLAN

Port-based and 802.1Q tag-based VLANs, protocol-based VLAN, management VLAN, multicast TV VLAN, PVE, GVRP

Head-of-line (HOL) blocking

HOL blocking prevention

Layer 3

Layer 3 options

Static routing; classless interdomain routing (CIDR); 60 static routes; IPv4; forwarding in silicon – wire-speed forwarding of Layer 3 traffic

IPv6

IPv6 Host Mode

IPv6 over Ethernet

Dual IPv6/IPv4 stack

IPv6 Neighbor and Router Discovery (ND)

IPv6 Stateless Address Autoconfiguration

Path MTU Discovery

Duplicate Address Detection (DAD)

ICMPv6

IPv6 over IPv4 network with ISATAP tunnel support

IPv6 QoS

Prioritize IPv6 packets in hardware

IPv6 ACL

Drop or Rate Limit IPv6 packets in hardware

MLD Snooping

Deliver IPv6 multicast packets only to the required receivers

IPv6 Applications

Web/SSL, Telnet Server/SSH, Ping, Traceroute, SNTP, TFTP, Radius, Syslog, DNS Client

IPv6 RFCs Supported

RFC2463 – ICMPv6

RFC3513 – IPv6 Address architecture

RFC 4291 – IP Version 6 Addressing Architecture

RFC 2460 – Internet Protocol v6 (IPv6) Specification

RFC 2461 – Neighbor Discovery for IPv6

RFC 2462 – IPv6 Stateless Address Auto-configuration

RFC 1981 – Path MTU Discovery

RFC 4007 – IPv6 Scoped Address Architecture

RFC3484 – Default address selection mechanism is described by RFC3484

RFC4214 – ISATAP tunneling

RFC4293 – MIB IPv6: Textual Conventions and General Group

RFC 3595 – Textual Conventions for IPv6 Flow Label

Management

Web user interface

Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)

SNMP

SNMP versions 1, 2c, and 3 with support for traps

SNMP MIBs

RFC1213 MIB-2, RFC2863 interface MIB, RFC2665 Ether-like MIB, RFC1493 bridge MIB, RFC2674 extended bridge MIB (P-bridge, Q-bridge), RFC2819 RMON MIB (groups 1, 2, 3, and 9 only), RFC2737 entity MIB,

RFC 2618 RADIUS client MIB, RFC 1215 traps

RMON

Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis)

Firmware upgrade

Web browser upgrade (HTTP/HTTPS) and TFTP

Dual images for resilient firmware upgrades

Port mirroring

Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe.

Other management

Traceroute; single IP management; SSL security for web user interface; SSH; RADIUS; port mirroring; TFTP upgrade; Dynamic Host Configuration Protocol (DHCP) client; BOOTP; SNTP; Xmodem upgrade; cable diagnostics; Ping; syslog; Telnet client (SSH secure support)

Security

IEEE 802.1X

802.1X – RADIUS authentication, MD5 hash; guest VLAN; single/multiple host mode

ACLs

Drop or rate limit based on source and destination MAC or IP address, protocol, port, VLAN, DSCP/IP precedence, TCP/ User Datagram Protocol (UDP) source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, Internet Group Management Protocol (IGMP) packets, DHCP snooping, Address Resolution Protocol (ARP) inspection, and IP source address guard

Up to 1018 rules

Availability

Link aggregation

Using IEEE 802.3ad LACP, up to 8 ports in up to 8 groups

Storm control

Broadcast, multicast, and unknown unicast

Spanning Tree

IEEE 802.1D Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Tree, and Fast Linkover

DoS prevention

DoS attack prevention

IGMP (versions 1 and 2) snooping

Limits bandwidth-intensive multicast traffic to only the requestors; supports 256 multicast groups

Quality of Service

Priority levels

4 hardware queues

Scheduling

Priority queuing and weighted round-robin (WRR)

Class of service

Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/ToS/DSCP based; DiffServ; classification and re-marking ACLs

Rate limiting

Ingress policer; egress rate control; per VLAN

Statistics

16 meters

Standards

802.3 10BASE-T Ethernet, 802.3u 100BASE-TX Fast Ethernet, 802.3ab 1000BASE-T Gigabit Ethernet, 802.3z Gigabit Ethernet, 802.3x flow control, 802.3ad LACP, 802.3af PoE, 802.1D Spanning Tree Protocol (STP), 802.1Q/p VLAN, 802.1w Rapid STP, 802.1s Multiple STP, 802.1X port access authentication

Environmental

Dimensions

W x D x H

17.32 x 14.70 x 1.73 in.

(440 x 375 x 44 mm)

Unit weight

10.89 lb (4.94 kg)

Power

100–240V 47–63 Hz, internal, universal; also equipped with external redundant power supply connector for external power supply, –48V DC

Certification

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Operating temperature
