1000 Gigabit PoE Switch

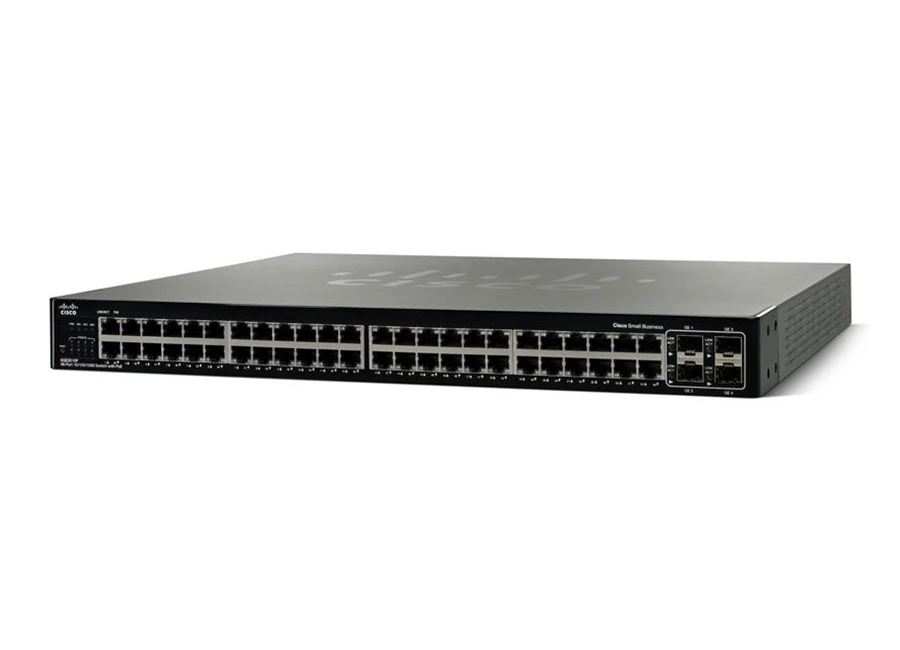

Name: Cisco SGE2010P G5 10/100/1000 Gigabit PoE Switch
Brand: Cisco

Teknik Özellikler

Specifications

Ports

48 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T with 4 Gigabit combo ports shared between mini-GBIC ports; console port; auto medium dependent interface (MDI) and MDI crossover (MDI-X); auto negotiate/manual setting; RPS port for connecting to redundant power supply unit

Buttons

Reset button

Cabling type

Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5e or better for 1000BASE-T

LEDs

PWR, Fan, Link/Act, PoE, Speed, RPS, Master, Stack ID 1 through 8

PoE

IEEE 802.3af PoE on delivered over any of the 48 10/100/1000 ports

Maximum power of 15.4W to an Ethernet port – 360W total available to all ports with regular AC power, 280W total available with RPS

Performance

Switching capacity

96 Gbps nonblocking

Forwarding capacity

71.4 mpps (64-byte packets)

Stacking

Stack operation

Up to 192 ports in a stack

Hot insertion and removal

Ring and chain stacking options

Master and backup master for resilient stack control

Auto-numbering or manual configuration of units in stack

Layer 2

MAC table size

8000

Number of VLANs

256 active VLANs (4096 range)

VLAN

Port-based and 802.1Q tag-based VLANs; protocol-based VLAN; management VLAN; multicast TV VLAN; Private VLAN Edge (PVE); Generic VLAN Registration Protocol (GVRP)

Head-of-line (HOL) blocking

HOL blocking prevention

Layer 3

Layer 3 options

Static routing; classless interdomain routing (CIDR); 60 static routes; IPv4; forwarding in silicon – wire-speed forwarding of Layer 3 traffic

IPv6

IPv6 options

IPv6 over Ethernet, dual stack, IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnel, IPv6 neighbor discovery, stateless address configuration, maximum transmission unit (MTU) discovery, WEB, SSL, Telnet, Ping, Traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), Simple Network Management Protocol (SNMP), RADIUS, access control lists (ACLs), QoS, protocol based VLANs

Management

Web user interface

Built-in web user interface for easy browser-based configuration

(HTTP/HTTPS)

SNMP

SNMP versions 1, 2c, and 3 with support for trap

SNMP MIBs

RFC1213 MIB-2, RFC2863 interface MIB, RFC2665 Ether-like MIB, RFC1493 bridge MIB, RFC2674 extended bridge MIB (P-bridge, Q-bridge), RFC2819 RMON MIB (groups 1, 2, 3, and 9 only), RFC2737 entity MIB, RFC 2618 RADIUS client MIB, RFC 1215 traps

Remote Monitoring (RMON)

Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis)

Firmware upgrade

Web browser upgrade (HTTP/HTTPS) and TFTP

Dual images for resilient firmware upgrades

Port mirroring

Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe.

Other management

Traceroute; single IP management; SSL security for web user interface; SSH; RADIUS; port mirroring; TFTP upgrade; Dynamic Host Configuration Protocol (DHCP) client; BOOTP; SNTP; Xmodem upgrade; cable diagnostics; Ping; syslog; Telnet client (SSH secure support)

Security

IEEE 802.1X

802.1X—RADIUS authentication, MD5 hash; guest VLAN; single/multiple host mode

ACLs

Drop or rate limit based on source and destination MAC or IP address, protocol, port, VLAN, differentiated services code point (DSCP)/IP precedence, TCP/ User Datagram Protocol (UDP) source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, Internet Group Management Protocol (IGMP) packets, DHCP snooping, Address Resolution Protocol (ARP) inspection, and IP source address guard

Up to 1018 rules

Advanced Security

IP Source Guard

STP Root Guard

Dynamic ARP Inspection

DHCP Snooping

Availability

Link aggregation

Using IEEE 802.3ad Link Aggregation Control Protocol (LACP), up to 8 ports in up to 8 groups

Storm control

Broadcast, multicast, and unknown unicast

Spanning Tree

IEEE 802.1D Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Tree, and Fast Linkover

DoS prevention

DoS attack prevention

IGMP (version 1 and 2) snooping

Limits bandwidth-intensive multicast traffic to only the requestors; supports 256 multicast groups

Power redundancy

Connection to RPS unit for power redundancy

Quality of service

Priority levels

4 hardware queues

Scheduling

Priority queuing and weighted round-robin (WRR)

Class of service

Port-based; 802.1p VLAN priority-based; IPv4/v6 IP precedence/ToS/DSCP based; DiffServ; classification and re-marking ACLs

Rate limiting

Ingress policer; egress rate control; per VLAN

Statistics

16 meters

Standards

802.3 10BASE-T Ethernet, 802.3u 100BASE-TX Fast Ethernet, 802.3ab 1000BASE-T Gigabit Ethernet, 802.3z Gigabit Ethernet, 802.3x flow control, 802.3ad LACP, 802.3af PoE, 802.1D Spanning Tree Protocol (STP), 802.1Q/p VLAN, 802.1w Rapid STP, 802.1s Multiple STP, 802.1x port access authentication

Environmental

Dimensions

W x D x H

17.32 x 14.70 x 1.73 in.

(440 x 375 x 44 mm)

Unit weight

10.89 lb (4.94 kg)

Power

100–240V 47–63 Hz, internal, universal; also equipped with external redundant power supply connector for external power supply, –48VDC

Certification

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Operating temperature
